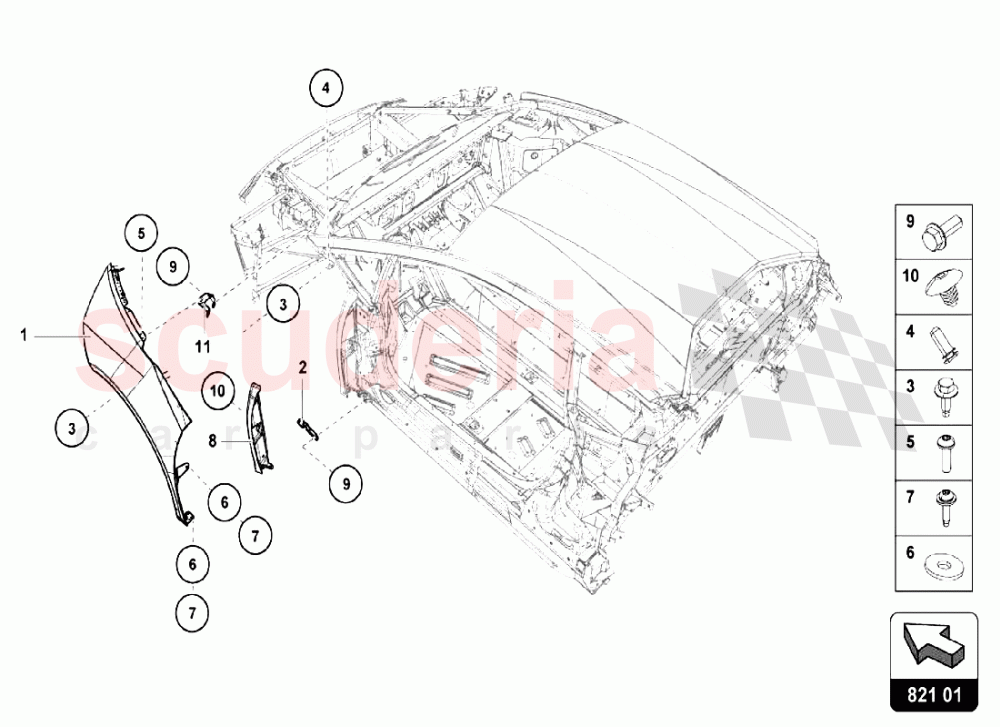

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N90584102	BUNGS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4T0821022D	WING	4T0821022D WING	-	1	Enquire
01	4T0821021D	WING	4T0821021D WING	-	1	Enquire
02	4T0821118C	MUD WING COMPENSATION PLATE	4T0821118C MUD WING COMPENSATION PLATE	-	1	Enquire
02	4T0821117C	MUD WING COMPENSATION PLATE	4T0821117C MUD WING COMPENSATION PLATE	-	1	Enquire
03	N91095301	HEXAGON HEAD BOLT (COMBI)	N91095301 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
04	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	2	Enquire
05	N91140401	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N91140401 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	-	6	Enquire
06	N01166623	WASHER	N01166623 WASHER	-	12	Enquire
07	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	12	Enquire
08	4T0806524A	CLOSING PLATE	4T0806524A CLOSING PLATE	-	1	Enquire
08	4T0806523A	CLOSING PLATE	4T0806523A CLOSING PLATE	-	1	Enquire
09	N90533005	HEXAGON HEAD BOLT (COMBI)	N90533005 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
10	N90584102	BUNGS	N90584102 BUNGS	-	4	Enquire
11	4T0821164B	ARM	4T0821164B ARM	-	1	Enquire
11	4T0821163B	ARM	4T0821163B ARM	-	1	Enquire
