Accelerator Pedal

Lamborghini Gallardo Superleggera

Find Your Part

Lamborghini Gallardo Superleggera - Accelerator Pedal

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

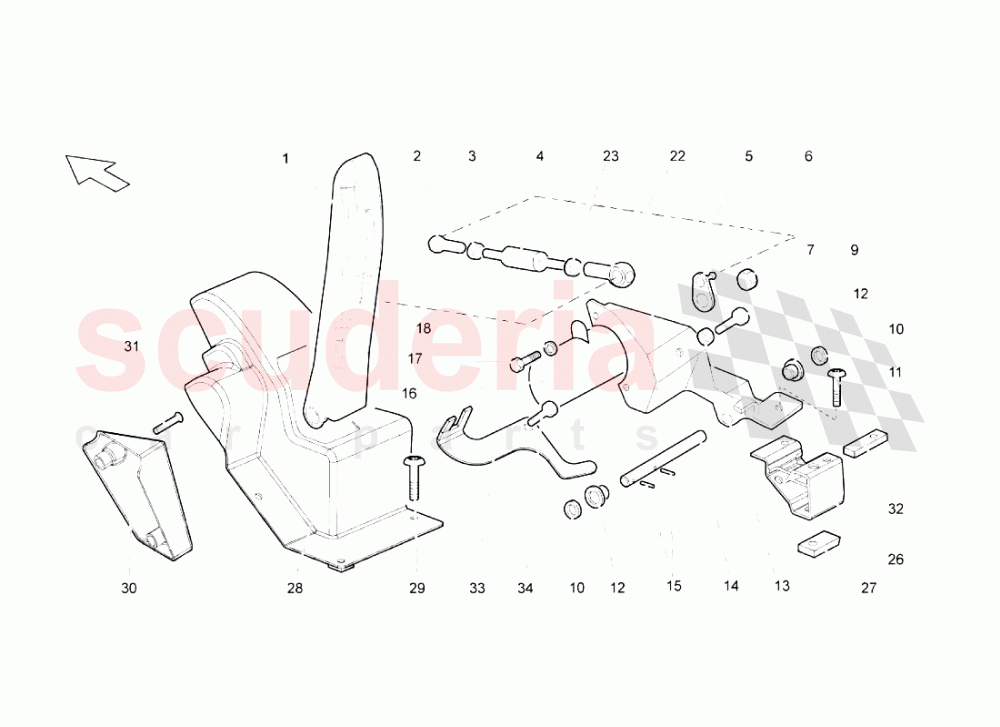

Accelerator Pedal of Lamborghini Lamborghini Gallardo Superleggera Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400721507A
ACCELERATOR PEDAL 		- 1 Enquire
002 400721214E
BALL JOINT HEAD (LEFT HAND THREAD) 		- 1 Enquire
003 N10690001
NUT (LEFT HAND THREAD) 		- 2 Enquire
004 400721743A
SHAFT 		- 1 Enquire
005 400721651A
SUPPORT 		- 1 Enquire
006 400721728B
LEVER 		- 1 Enquire
007 N01508213
HEXAGON COLLAR NUT 		- 1 Enquire
009 N01024718
SCREW 		- 1 Enquire
010 WHT000697
WASHER 		- 2 Enquire
011 N91000203
OVAL HEXAGON SOCKET HEAD BOLT 		- 5 Enquire
012 400721543
BUSHING 		- 2 Enquire
013 N01100845
HEXAGON NUT 		- 1 Enquire
014 400721157
JOURNAL 		- 1 Enquire
015 N10206801
PIN 		- 2 Enquire
016 400907475A
POTENTIOMETER 		- 1 Enquire
017 N10546402
SCREW M6X16 		- 2 Enquire
018 8400628
WASHER 		- 2 Enquire
022 400721214D
BALL JOINT HEAD 		- 1 Enquire
023 N01100520
NUT M5 		- 2 Enquire
026 400803427A
U-BOLT 		- 1 Enquire
028 402721585B
ACCELERATOR COVER BOX 		- 1 Enquire
029 N91032702
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD 		- 3 Enquire
030 402864417C
FOOTREST PEDAL COVER (MANUAL GEARBOX) 		- 1 Enquire
031 N10648601
SCREW M6X30 		- 2 Enquire
032 400723325B
PLATE 		- 1 Enquire
033 402971890A
BRACKET 		- 1 Enquire
034 N90847903
Screw M6X15 		- 1 Enquire
