Lamborghini Gallardo Superleggera - Main Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

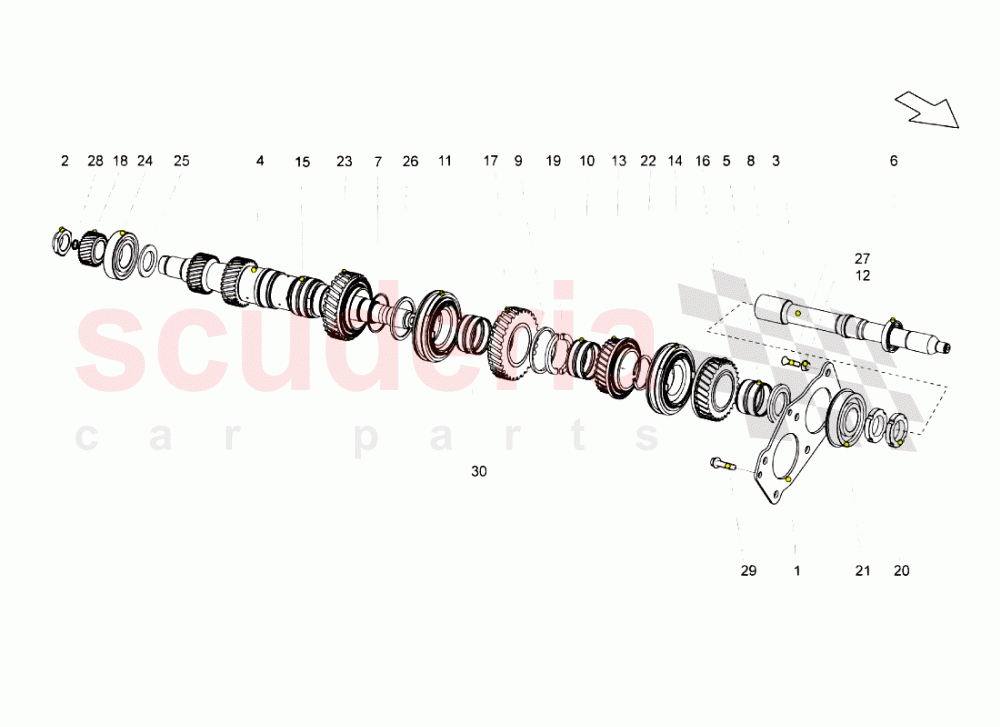

Main Shaft of Lamborghini Lamborghini Gallardo Superleggera Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 86301193B
PLATE 		- 1 Enquire
002 86307303
RING NUT M27 X 15 		- 2 Enquire
003 86311103A
SHAFT 		- 1 Enquire
004 86311105A
MAIN SHAFT 		- 1 Enquire
005 86311118
ROLLER CAGE 		- 1 Enquire
006 86311133
BEARING 		- 1 Enquire
007 86311152
RING 		- 1 Enquire
008 86311157
SPACER 		- 1 Enquire
009 86311183
RING 		- 1 Enquire
010 86311228
ROLLER CAGE 		- 1 Enquire
011 86311241
SYNCHRONIZING GEAR 		- 1 Enquire
012 86311276
WASHER ( FOR 086525283A) 		- 6 Enquire
013 86311285A
THIRD GEAR 		- 1 Enquire
014 86311301A
SYNCHRONIZING GEAR 		- 1 Enquire
015 86311325
ROLLER CAGE 		- 1 Enquire
016 86311351A
FOURTH GEAR 		- 1 Enquire
017 86311389A
SIXTH GEAR 		- 1 Enquire
018 86311507A
REVERSE IDLE GEAR 		- 1 Enquire
019 86311876
RING 		- 1 Enquire
020 86307291A
RING NUT 		- 2 Enquire
021 86311235A
BEARING 		- 2 Enquire
022 86311287A
RING 		- 1 Enquire
023 86311361C
FIFTH GEAR 		- 1 Enquire
024 86311372C
BEARING 		- 2 Enquire
025 86311357
BUSHING 		- 1 Enquire
026 86311876B
SPACER 		- 1 Enquire
027 N90744801
SCREW ( FOR 086525283A) 		- 6 Enquire
028 WHT002219
O-RING 		- 1 Enquire
029 N90063706
SCREW 		- 1 Enquire
030 86311150
ROLLER CAGE 		- 1 Enquire
