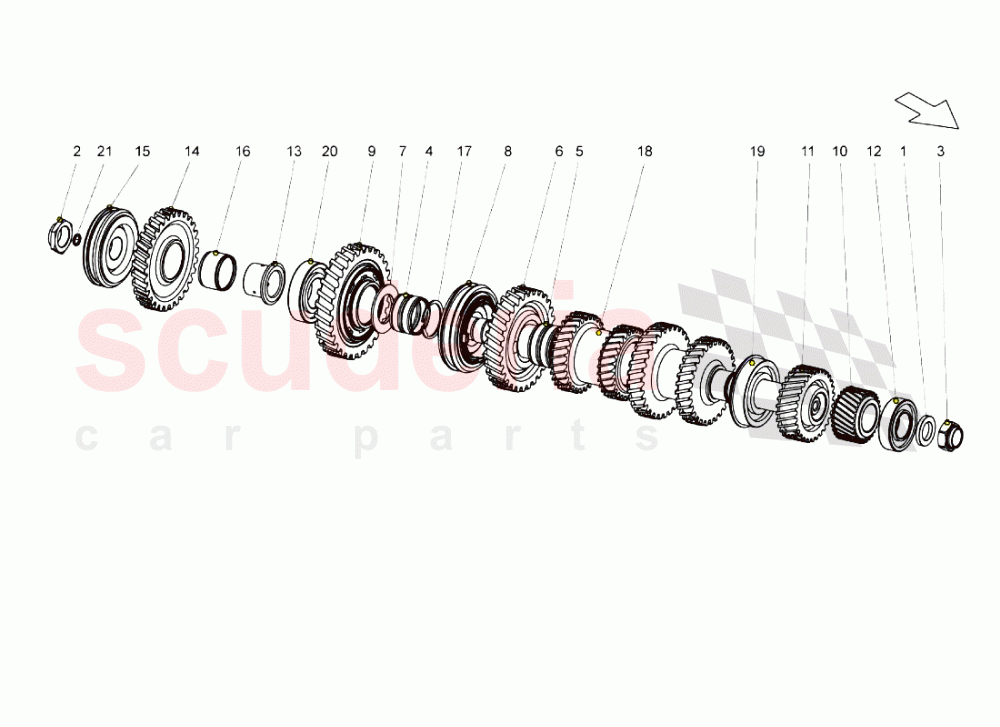

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86307293	WASHER	86307293 WASHER	$28.38	1
002	86307303	RING NUT M27 X 15	86307303 RING NUT M27 X 15	$98.01	1
003	86307304	RING NUT	86307304 RING NUT	$94.89	1
004	86311132	ROLLER CAGE	86311132 ROLLER CAGE	$58.75	1
005	86311150	ROLLER CAGE	86311150 ROLLER CAGE	$76.35	1
006	86311163A	SECOND GEAR	86311163A SECOND GEAR	$461.04	1
007	86311231	SPACER	86311231 SPACER	$89.40	1
008	86311243A	SYNCHRONIZING GEAR	86311243A SYNCHRONIZING GEAR	$3,131.73	1
009	86311257A	FIRST GEAR	86311257A FIRST GEAR	$1,056.46	1
010	86311348E	GEAR	86311348E GEAR	$559.14	1
011	86311352C	GEAR	86311352C GEAR	$576.62	1
012	86311372	BEARING	86311372 BEARING	$241.27	1
013	86311423	BUSHING	86311423 BUSHING	$245.96	1
014	86311532A	REVERSE IDLE GEAR	86311532A REVERSE IDLE GEAR	$1,102.15	1
015	86311762A	SYNCHRONIZING GEAR	86311762A SYNCHRONIZING GEAR	$615.60	1
016	86311770	ROLLER CAGE	86311770 ROLLER CAGE	$85.22	1
017	86311187A	RING	86311187A RING	$17.07	1
018	86311195K	MAIN SHAFT	86311195K MAIN SHAFT	$5,712.36	1
019	86311235A	BEARING	86311235A BEARING	$214.41	1
020	86311372B	BEARING	86311372B BEARING	$256.72	1
021	WHT002219	O-RING	WHT002219 O-RING	$4.78	1
