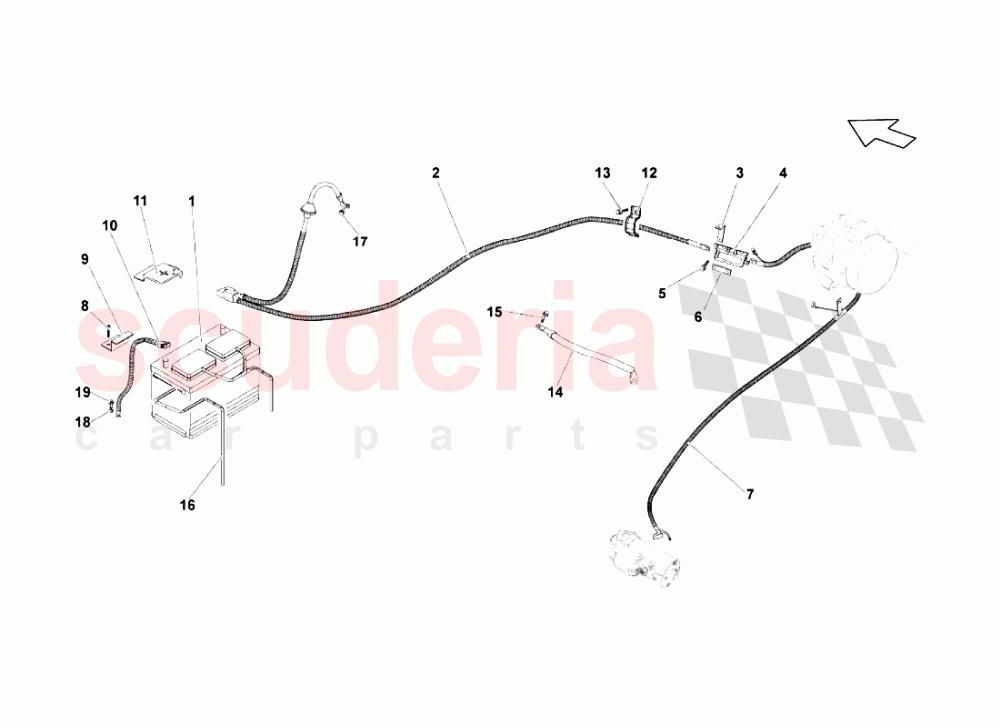

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	5K0915105K	BATTERY (95AH 450A)	5K0915105K BATTERY (95AH 450A)	$480.16	1
002	408971225C	CABLE	408971225C CABLE	$559.14	1
004	400937495	MEGA FUSE HOLDER BOX	400937495 MEGA FUSE HOLDER BOX	$77.56	1
005	N90693702	SCREW M5X20	N90693702 SCREW M5X20	$0.58 MSRP: ~~7.32~~ (92.1% off)	2
006	400915447	BAR	400915447 BAR	$26.89	1
008	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI) IN STOCK	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI) IN STOCK	$1.68	2
009	400915447B	HOOK	400915447B HOOK	$340.06	1
010	400971235B	CABLE	400971235B CABLE	$33.22	1
012	400971336	BRACKET	400971336 BRACKET	$10.96	3
013	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.68	3
014	420971237	CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	420971237 CABLE (CABLE (-) FROM ENGINE TO CHASSIS)	$37.31	1
015	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	2
016	4F0915531	CORRUGATED PIPE	4F0915531 CORRUGATED PIPE	$14.38	1
017	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.16	1
018	N01152527	WASHER IN STOCK	N01152527 WASHER IN STOCK	$0.40 MSRP: ~~7.33~~ (94.5% off)	1
019	N10049308	HEXAGON HEAD BOLT (COMBI) IN STOCK	N10049308 HEXAGON HEAD BOLT (COMBI) IN STOCK	$1.74	1
