Lamborghini Gallardo LP560 Spyder - Electrical System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

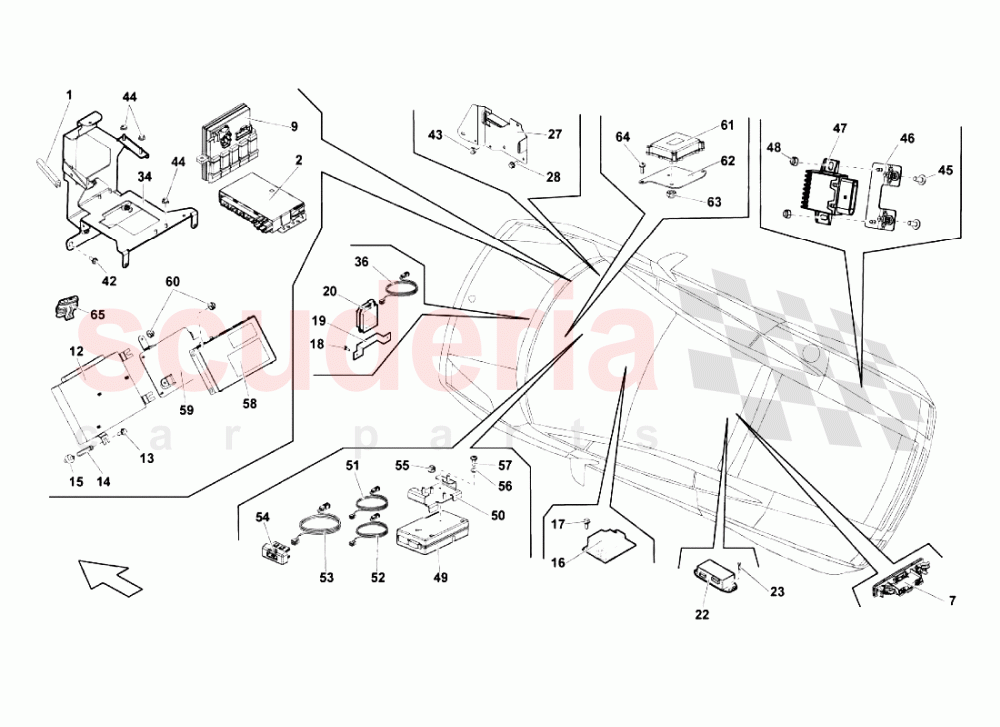

Electrical System 1 of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 823881763
EDGE PROTECTION 		$3.64 1
002 8H0959433M
COMFORT CONTROL UNIT (433.92 MHZ REMOTE CONTROL) 		$564.51 1
009 400907279A
ILM CONTROL UNIT 		$938.17 1
012 400959433BF
GFA CONTROL UNIT (SUPPLY VIN - TO BE PROGRAMMED) 		$7,163.97 1
013 N90847903
Screw M6X15 		$1.16 3
014 400972895
SPACER 		$163.30 3
015 400972081B
FLEXIBLE SUPPORT 		$71.92 3
016 407959655
AIRBAG CONTROL UNIT + SENSOR 		$7,258.06 1
017 N10124306
HEXAGON SOCKET FLAT HEAD BOLT 		$1.60 3
018 N90847903
Screw M6X15 		$1.16 2
019 400807777
BRACKET 		$19.76 1
020 8E0909511
BOX DOOR CONTROL E.C.U. (EUROPEAN VERSION) 		$1,244.63 1
022 400907441C
REAR VIEW CAMERA CONTROL UNIT 		$1,458.36 1
023 N10082911
SCREW M6X16 		$0.68 2
027 400907371C
BRACKET 		$24.72 1
028 N90847903
Screw M6X15 		$1.16 3
034 400907285C
BRACKET 		$190.19 1
036 400971257
WIRING HARNESS BOX DOOR CONTROL E.C.U. 		$42.06 1
042 N10049308
HEXAGON HEAD BOLT (COMBI) 		$1.74 3
043 N1508213
NUT M6 		- 1 Enquire
044 N10017304
HEXAGON COLLAR NUT 		$1.81 8
045 N90993801
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) 		$1.63 (77.1% off) 2
046 420907815A
BRACKET 		$22.26 1
047 4F1906093C
CONTROL UNIT FUEL PUMP 		$408.61 1
048 N2300212
NUT M6 		- 2 Enquire
061 400035503
AERIAL
(USA & Canada) 		$286.30 1
065 410971946
CONNECTOR 		$259.42 1
