Electrical System 2

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Electrical System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

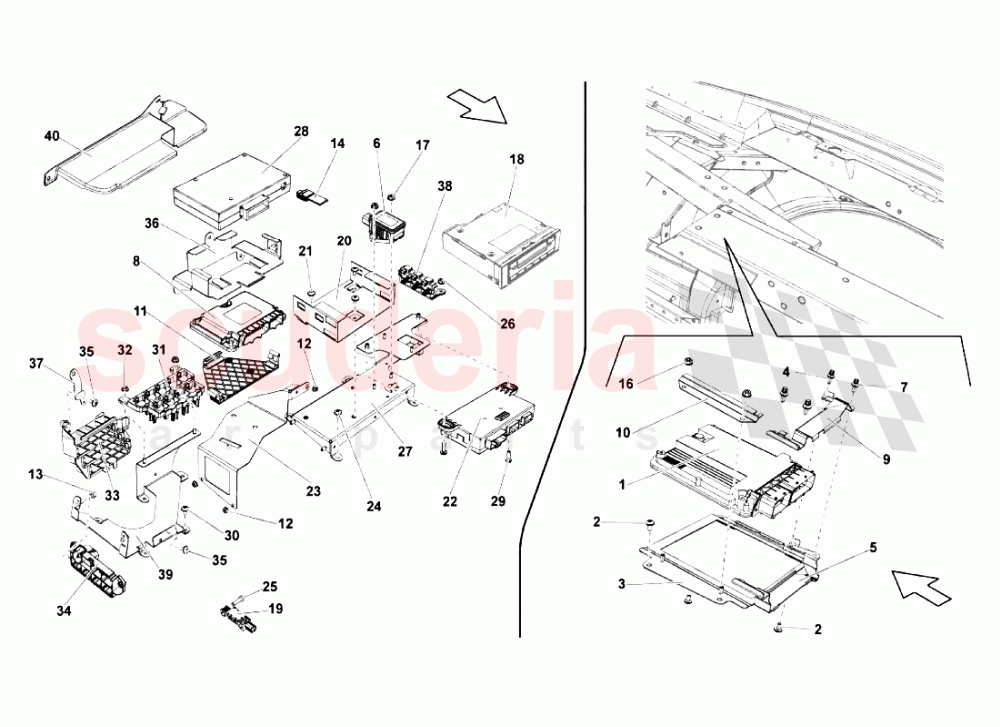

Electrical System 2 of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 400907552
LIE CONTROL UNIT (ORDER ALSO REF. 4 - 7) 		- 2 Enquire
002 N91096601
HEXAGON SOCKET FLAT HEAD BOLT 		- 8 Enquire
003 407907324D
RH BRACKET 		- 1 Enquire
003 407907348D
LH BRACKET 		- 1 Enquire
004 N91023802
SCREW M5X14 		- 4 Enquire
005 8E0907411J
BRACKET 		- 2 Enquire
006 420907637
YAWRATE SENSOR (ESP) 		- 1 Enquire
007 N90980304
SCREW M6X12 		- 4 Enquire
008 400927156
E-GEAR CONTROL UNIT 		- 1 Enquire
009 8E0907500J
BRACKET 		- 2 Enquire
010 407907354
LH BRACKET 		- 1 Enquire
010 407907649
RH BRACKET 		- 1 Enquire
011 6Q0906507
BRACKET 		- 1 Enquire
012 N1508213
NUT M6 		- 3 Enquire
013 N1508213
NUT M6 		- 2 Enquire
014 8P0035503E
ANTENNA BLUETOOTH 		- 1 Enquire
016 N1508213
NUT M6 		- 4 Enquire
017 N1508213
NUT M6 		- 2 Enquire
019 8E0959643E
ROLL BAR SENSOR 		- 2 Enquire
020 400919749
BRACKET (CD - TV) 		- 1 Enquire
021 N91020102
SCREW M6X14 		- 3 Enquire
022 407959255A
CAPOTE CONTROL UNIT 		- 1 Enquire
023 407907347
SUPPORT (E-GEAR) 		- 1 Enquire
024 N91096601
HEXAGON SOCKET FLAT HEAD BOLT 		- 5 Enquire
025 N90338204
SCREW M6X45 		- 4 Enquire
026 N1508213
NUT M6 		- 2 Enquire
027 407035643
BRACKET (CAPOTE-CD-ESP) 		- 1 Enquire
028 8P0862335S
BLUETOOTH CONTROL UNIT 		- 1 Enquire
029 N91053801
SCREW M6X20 		- 3 Enquire
030 N91096601
HEXAGON SOCKET FLAT HEAD BOLT 		- 5 Enquire
031 4F0937503
SUPPORT (ENGINE RELAY BOX WIRING HARNESS) 		- 1 Enquire
032 N1508213
NUT M6 		- 2 Enquire
033 4F1971845A
SUPPORT 		- 1 Enquire
034 4F1937545
SUPPORT (CENTRAL WIRING HARNESS) 		- 1 Enquire
035 N10595002
ROUND HD. SCREW 		- 2 Enquire
036 407862399
SUPPORT (ENGINE RELAY BOX WIRING HARNESS) 		- 1 Enquire
037 407971856
BRACKET (CAPOTE-CD-ESP) 		- 1 Enquire
038 4B0937545B
SUPPORT (CENTRAL WIRING HARNESS) 		- 1 Enquire
039 407971806
SUPPORT 		- 1 Enquire
040 407907577C
COVER 		- 1 Enquire
