Rear Tunnel of Lamborghini Lamborghini Gallardo (2006-2007)

View All

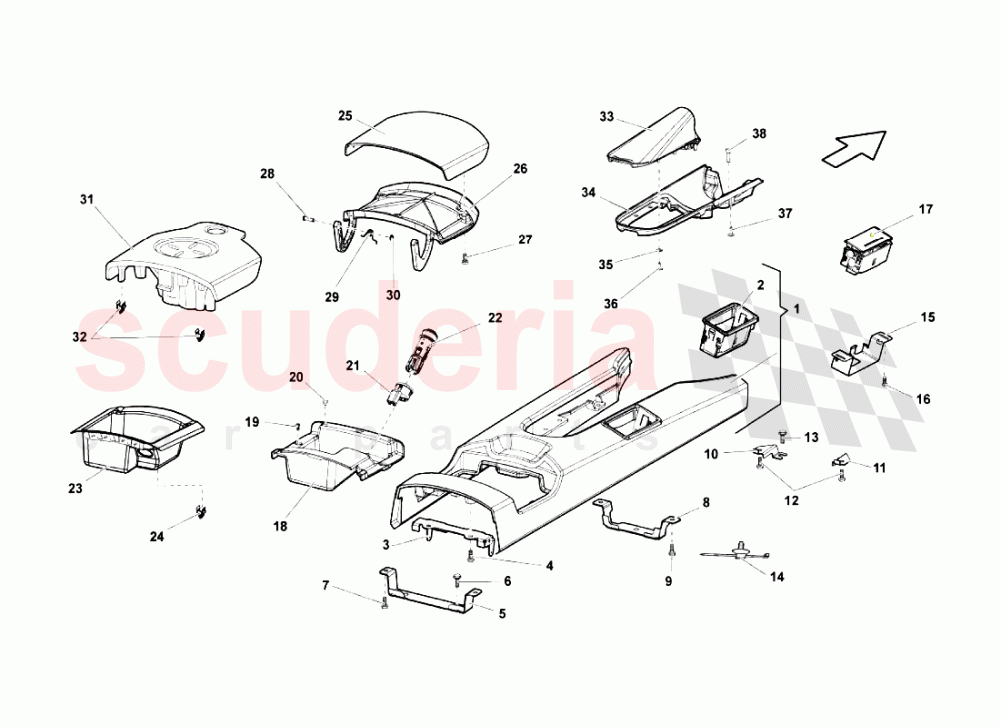

Lamborghini Gallardo (2006-2007) - Rear Tunnel

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400863583	TUNNEL FIXING BRACKET, FRONT LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863584	TUNNEL FIXING BRACKET, FRONT RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N902424	SCREW M6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90688101	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	401857780B	CENTER CONSOLE REAR SECTION ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N902661	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0857405A	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863300	GLOVE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90562401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91092001	RUBBER STOP 4.50X2.2X8.60	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D0919343	LIGHTER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0919305B	LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863284	REAR CONSOLE GLOVE BOX ASSY (LEATHER INTERIOR - SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863371	TRIM COVERING, INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90562401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10639601	JOURNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863285	LEFT SPRING	Enquire	To Order
	400863286	RIGHT SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N126252	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400868563	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400711461	HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400863343	HAND BRAKE LOWER PORTION CLOSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90485901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90562401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000754	SCREW M4X10	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	401863242	CENTER TUNNEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	401863242 CENTER TUNNEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN)	-	1	Enquire
03	400863843	LID FIXING BRACKET	400863843 LID FIXING BRACKET	-	1	Enquire
04	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
05	400863615	TUNNEL FIXING BRACKET, REAR	400863615 TUNNEL FIXING BRACKET, REAR	-	1	Enquire
06	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
07	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	2	Enquire
08	400863345	TUNNEL FIXING BRACKET, CENTER	400863345 TUNNEL FIXING BRACKET, CENTER	-	1	Enquire
09	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	8	Enquire
10	400863583	TUNNEL FIXING BRACKET, FRONT LH	400863583 TUNNEL FIXING BRACKET, FRONT LH	-	1	Enquire
11	400863584	TUNNEL FIXING BRACKET, FRONT RH	400863584 TUNNEL FIXING BRACKET, FRONT RH	-	1	Enquire
12	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	8	Enquire
13	N902424	SCREW M6X18	N902424 SCREW M6X18	-	2	Enquire
14	N90688101	CLAMP	N90688101 CLAMP	-	3	Enquire
15	401857780B	CENTER CONSOLE REAR SECTION ASSY	401857780B CENTER CONSOLE REAR SECTION ASSY	-	1	Enquire
16	N902661	SCREW	N902661 SCREW	-	2	Enquire
17	4B0857405A	ASHTRAY	4B0857405A ASHTRAY	-	1	Enquire
18	400863300	GLOVE BOX	400863300 GLOVE BOX	-	1	Enquire
19	N90562401	SCREW	N90562401 SCREW	-	3	Enquire
20	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	-	2	Enquire
21	8D0919343	LIGHTER RING	8D0919343 LIGHTER RING	-	1	Enquire
22	4B0919305B	LIGHTER	4B0919305B LIGHTER	-	1	Enquire
25	400863284	REAR CONSOLE GLOVE BOX ASSY (LEATHER INTERIOR - SUPPLY	400863284 REAR CONSOLE GLOVE BOX ASSY (LEATHER INTERIOR - SUPPLY	-	1	Enquire
26	400863371	TRIM COVERING, INNER	400863371 TRIM COVERING, INNER	-	1	Enquire
27	N90562401	SCREW	N90562401 SCREW	-	6	Enquire
28	N10639601	JOURNAL	N10639601 JOURNAL	-	2	Enquire
29	400863285	LEFT SPRING	400863285 LEFT SPRING	-	1	Enquire
29	400863286	RIGHT SPRING	400863286 RIGHT SPRING	-	1	Enquire
30	N126252	SEAL RING	N126252 SEAL RING	-	4	Enquire
32	400868563	CLIP	400868563 CLIP	-	2	Enquire
33	400711461	HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN)	400711461 HAND BRAKE COVERING ASSY WITH MOLDING (SUPPLY VIN)	-	1	Enquire
34	400863343	HAND BRAKE LOWER PORTION CLOSING	400863343 HAND BRAKE LOWER PORTION CLOSING	-	1	Enquire
35	N90485901	WASHER	N90485901 WASHER	-	10	Enquire
36	N90562401	SCREW	N90562401 SCREW	-	10	Enquire
37	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	2	Enquire
38	WHT000754	SCREW M4X10	WHT000754 SCREW M4X10	-	1	Enquire
