Rear Fender of Lamborghini Lamborghini Gallardo (2006-2007)

View All

Lamborghini Gallardo (2006-2007) - Rear Fender

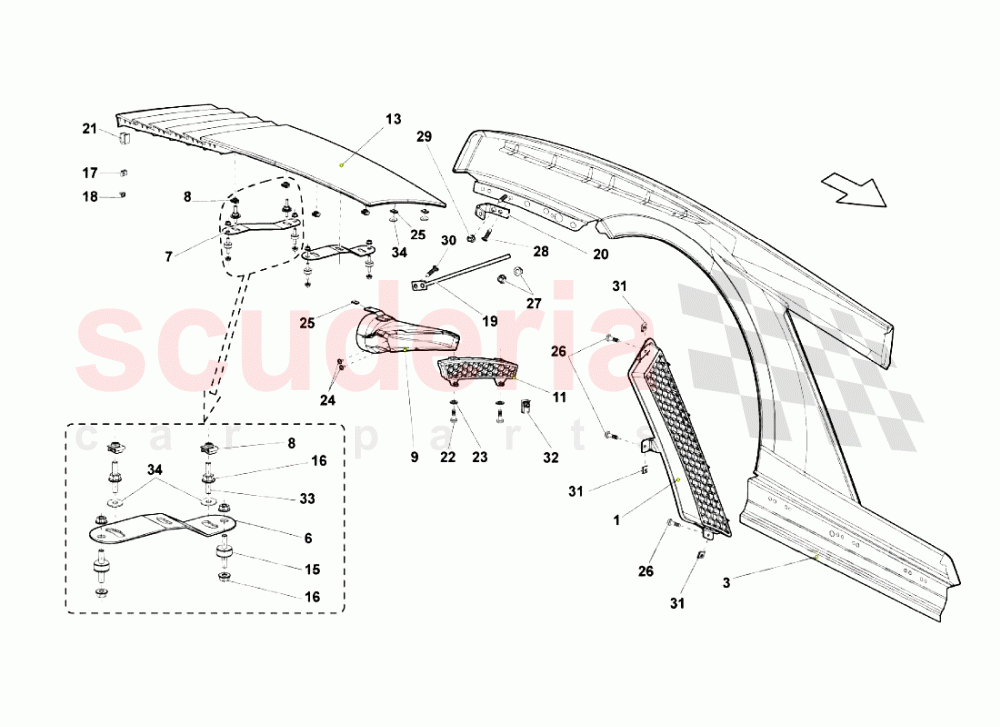

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400827968A	GRID, RH	Enquire	To Order
	400827967A	GRID, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400827993B	SIDE COVER, LH	Enquire	To Order
	400827994B	SIDE COVER, RH	Enquire	To Order
	8J469820	Carbon rear grills set	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400972081	FLEXIBLE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400807707B	FENDER ADJUSTMENT BRACKET, INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400810239B	FENDER ADJUSTMENT BRACKET, OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400827341	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90881601	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10609202	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10448504	SCREW M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1508213	NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N902424	SCREW M6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0154487	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90779802	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10652301	JOURNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N116945	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400317116	AIR INTAKE GRID, RH	400317116 AIR INTAKE GRID, RH	-	1	Enquire
01	400317115	AIR INTAKE GRID, LH	400317115 AIR INTAKE GRID, LH	-	1	Enquire
03	408809604A	REAR FENDER, RH	408809604A REAR FENDER, RH	-	1	Enquire
06	400827605	SIDE COVER FASTENER	400827605 SIDE COVER FASTENER	-	2	Enquire
07	400827606	SIDE COVER FASTENER	400827606 SIDE COVER FASTENER	-	2	Enquire
08	N90327506	SPEED NUT	N90327506 SPEED NUT	-	8	Enquire
09	408827924	ENGINE AIR CONVEYOR, RH	408827924 ENGINE AIR CONVEYOR, RH	-	1	Enquire
09	408827923	ENGINE AIR CONVEYOR, LH	408827923 ENGINE AIR CONVEYOR, LH	-	1	Enquire
11	400827968A	GRID, RH	400827968A GRID, RH	-	1	Enquire
11	400827967A	GRID, LH	400827967A GRID, LH	-	1	Enquire
13	400827993B	SIDE COVER, LH	400827993B SIDE COVER, LH	-	1	Enquire
13	400827994B	SIDE COVER, RH	400827994B SIDE COVER, RH	-	1	Enquire
13	8J469820	Carbon rear grills set	8J469820 Carbon rear grills set (Tubi Style)	-	1	Enquire
15	400972081	FLEXIBLE SUPPORT	400972081 FLEXIBLE SUPPORT	-	8	Enquire
16	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	16	Enquire
17	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
18	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
19	400807707B	FENDER ADJUSTMENT BRACKET, INNER	400807707B FENDER ADJUSTMENT BRACKET, INNER	-	2	Enquire
20	400810239B	FENDER ADJUSTMENT BRACKET, OUTER	400810239B FENDER ADJUSTMENT BRACKET, OUTER	-	2	Enquire
21	400827341	GASKET	400827341 GASKET	-	4	Enquire
22	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
23	WHT000778	WASHER	WHT000778 WASHER	-	4	Enquire
24	N90881601	RIVET	N90881601 RIVET	-	6	Enquire
25	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
26	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
27	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	4	Enquire
28	N10448504	SCREW M6X16	N10448504 SCREW M6X16	-	2	Enquire
29	N1508213	NUT M6	N1508213 NUT M6	-	2	Enquire
30	N902424	SCREW M6X18	N902424 SCREW M6X18	-	2	Enquire
31	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
32	N90779802	CLIP	N90779802 CLIP	-	4	Enquire
33	N10652301	JOURNAL	N10652301 JOURNAL	-	8	Enquire
34	N116945	WASHER	N116945 WASHER	-	12	Enquire
