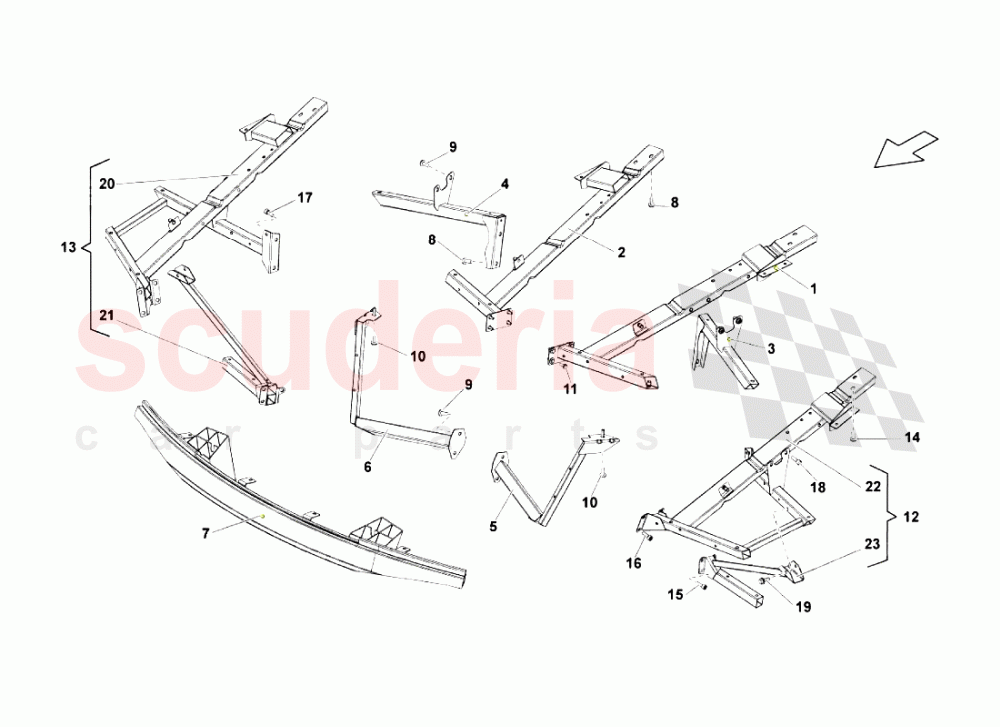

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	$11.56	To Order

Photo	Part No	Description	Price (each)	Stock
	N10009507	HEXAGON HEAD BOLT (COMBI)	$0.80	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	400805099	FRONT LEFT SIDE MEMBER	400805099 FRONT LEFT SIDE MEMBER	$6,081.99	1
02	400805100	FRONT RIGHT SIDE MEMBER	400805100 FRONT RIGHT SIDE MEMBER	$6,055.10	1
03	400805315	REINFORCEMENT	400805315 REINFORCEMENT	$2,076.60	1
04	400805316	REINFORCEMENT	400805316 REINFORCEMENT	$2,076.60	1
05	400806635	LEFT SUPPORT	400806635 LEFT SUPPORT	$3,783.60	1
06	400806636	RIGHT SUPPORT	400806636 RIGHT SUPPORT	$1,034.95	1
07	400807107A	Front Bumper Frame	400807107A Front Bumper Frame	$6,303.74	1
08	N10347801	SCREW M8X20	N10347801 SCREW M8X20	$1.22	8
09	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	8
10	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	2
11	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI)	$0.80 MSRP: ~~7.30~~ (89% off)	8
