Accelerator Pedal of Lamborghini Lamborghini Gallardo (2003-2005)

View All

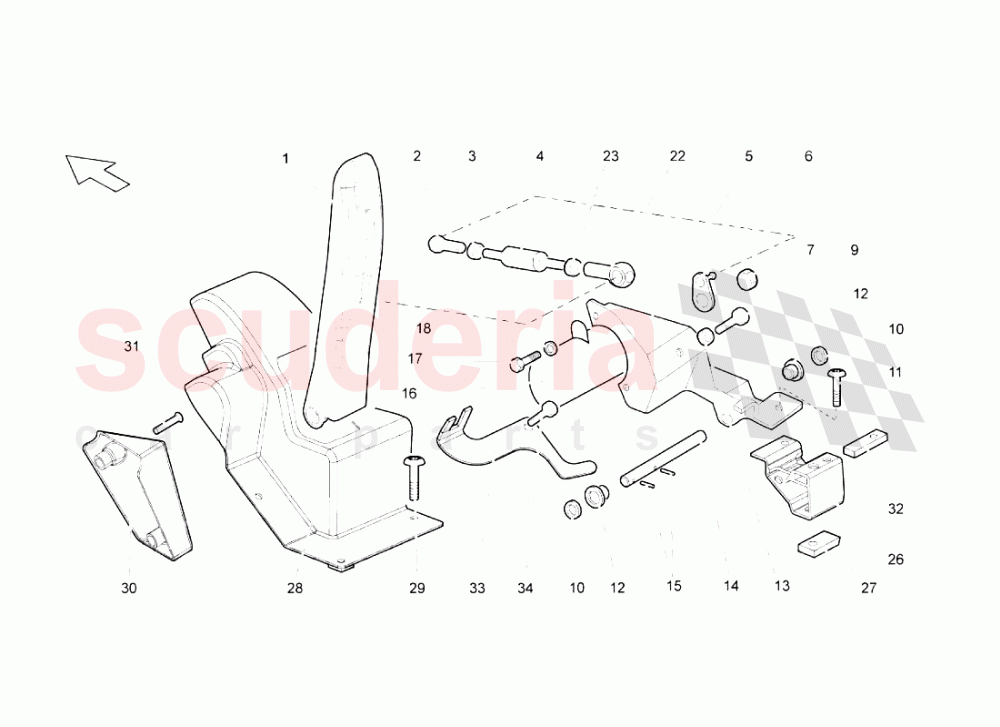

Lamborghini Gallardo (2003-2005) - Accelerator Pedal

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT000697	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721543	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1100830	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721157	JOURNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8900204	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400907475A	POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8700614	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8400628	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400721214A	BALL JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8200501	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400803427A	U-BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402721585B	ACCELERATOR COVER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402864417C	FOOTREST PEDAL COVER (MANUAL GEARBOX)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10648601	SCREW M6X30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400723325B	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402971890	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	-	1	Enquire
02	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	-	1	Enquire
03	8200504	NUT (LEFT HAND THREAD)	8200504 NUT (LEFT HAND THREAD)	-	2	Enquire
04	400721743	SHAFT	400721743 SHAFT	-	1	Enquire
06	400721728	LEVER	400721728 LEVER	-	1	Enquire
07	N150825	NUT	N150825 NUT	-	1	Enquire
09	N103351	SCREW M8X35	N103351 SCREW M8X35	-	1	Enquire
10	WHT000697	WASHER	WHT000697 WASHER	-	2	Enquire
11	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	-	5	Enquire
12	400721543	BUSHING	400721543 BUSHING	-	2	Enquire
13	N1100830	NUT	N1100830 NUT	-	1	Enquire
14	400721157	JOURNAL	400721157 JOURNAL	-	1	Enquire
15	8900204	PIN	8900204 PIN	-	2	Enquire
16	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	-	1	Enquire
17	8700614	SCREW	8700614 SCREW	-	2	Enquire
18	8400628	WASHER	8400628 WASHER	-	2	Enquire
22	400721214A	BALL JOINT HEAD	400721214A BALL JOINT HEAD	-	1	Enquire
23	8200501	NUT	8200501 NUT	-	2	Enquire
26	400803427A	U-BOLT	400803427A U-BOLT	-	1	Enquire
28	402721585B	ACCELERATOR COVER BOX	402721585B ACCELERATOR COVER BOX	-	1	Enquire
29	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	-	3	Enquire
30	402864417C	FOOTREST PEDAL COVER (MANUAL GEARBOX)	402864417C FOOTREST PEDAL COVER (MANUAL GEARBOX)	-	1	Enquire
31	N10648601	SCREW M6X30	N10648601 SCREW M6X30	-	2	Enquire
32	400723325B	PLATE	400723325B PLATE	-	1	Enquire
33	402971890	BRACKET	402971890 BRACKET	-	1	Enquire
