Lamborghini Gallardo (2003-2005) - Rear Differential

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86525231 4.00 mm ADJUSTMENT SHIM $105.78 To Order
Photo Part No Description Price (each) Stock
86525241 2.00 mm ADJUSTMENT SHIM $143.17 To Order
Photo Part No Description Price (each) Stock
86525251 BEARING $323.25 To Order
Photo Part No Description Price (each) Stock
86525271C RING mm. 2.60 $87.50 To Order
86525271A RING mm. 2.95 $87.50 To Order
86525271 RING mm. 3.3 $87.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
86525356 MAIN SHAFT $755.38 To Order
Photo Part No Description Price (each) Stock
86525357 MAIN SHAFT $763.45 To Order
Photo Part No Description Price (each) Stock
86525596 SHAFT OIL SEAL $51.97 To Order
Photo Part No Description Price (each) Stock
86525597 SEAL RING $48.98 To Order
Photo Part No Description Price (each) Stock
86525777A BEARING $103.23 To Order
Photo Part No Description Price (each) Stock
400501721B BRACKET $53.84 To Order
Photo Part No Description Price (each) Stock
86301114 OIL LEVEL CAP $16.74 To Order
Photo Part No Description Price (each) Stock
N138271 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
N10128106 SCREW $3.85 To Order
Photo Part No Description Price (each) Stock
N10338901 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
N91028801 O-RING $2.96 To Order
Photo Part No Description Price (each) Stock
N91029001 O-RING $7.06 To Order
Photo Part No Description Price (each) Stock
N91029101 O-RING $37.92 To Order
View All

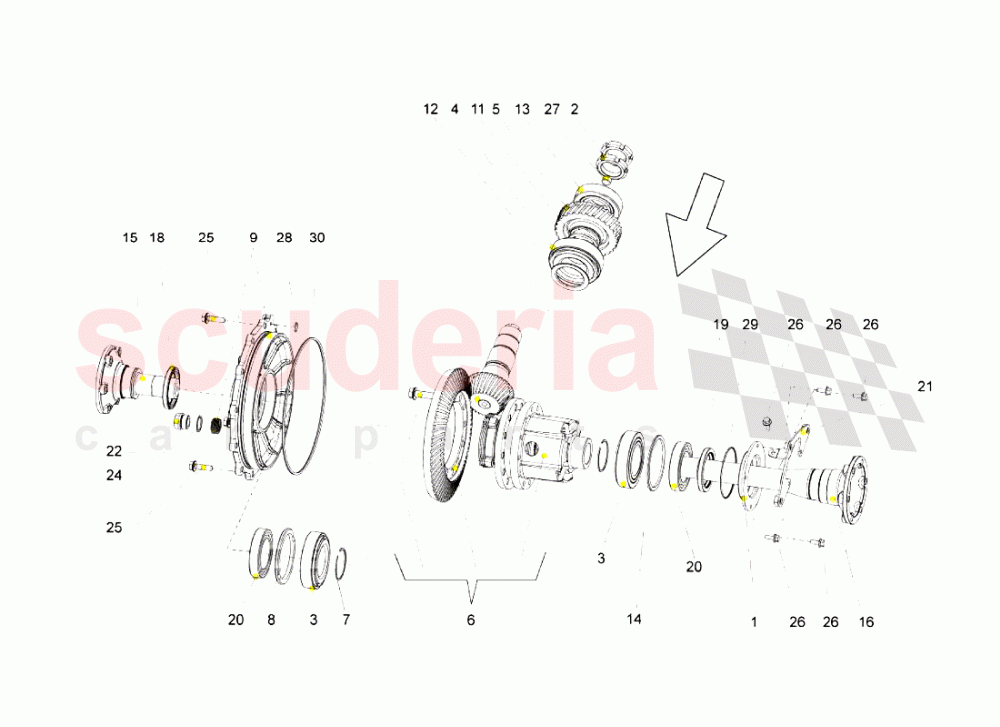

Rear Differential of Lamborghini Lamborghini Gallardo (2003-2005) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 86301184
RH CLUCH HOUSING COVER 		$211.69 1
02 86307291
RING NUT 		$78.64 2
03 86311124
BEARING 		$225.13 2
04 86311211
BEARING 		$252.03 1
05 86311347
GEAR 		$623.67 1
06 86525021
DIFFERENTIAL + BEVEL GEAR PAIR 		$9,529.53 1
07 86525125
SECURING RING 		$7.93 2
08 86525126
RING 6.8 MM 		$120.57 1
08 86525126D
RING 6.0 MM 		$120.57 1
08 86525126A
RING 6.6 MM 		$120.57 1
08 86525126F
RING 5.5 MM 		$120.57 1
08 86525126B
RING 6.4 MM 		$120.57 1
08 86525126E
RING 5.8 MM 		$120.57 1
08 86525126C
RING 6.2 MM 		$120.57 1
09 86525127
FLANGE 		$801.07 1
11 86525231
4.00 mm ADJUSTMENT SHIM 		$105.78 1
12 86525241
2.00 mm ADJUSTMENT SHIM 		$143.17 1
13 86525251
BEARING 		$323.25 1
14 86525271C
RING mm. 2.60 		$87.50 1
14 86525271A
RING mm. 2.95 		$87.50 1
14 86525271
RING mm. 3.3 		$87.50 1
14 86525271B
RING mm. 2.8 		$87.50 1
15 86525356
MAIN SHAFT 		$755.38 1
16 86525357
MAIN SHAFT 		$763.45 1
18 86525596
SHAFT OIL SEAL 		$51.97 1
19 86525597
SEAL RING 		$48.98 1
20 86525777A
BEARING 		$103.23 2
21 400501721B
BRACKET 		$53.84 1
22 86301114
OIL LEVEL CAP 		$16.74 1
24 N138271
GASKET 		- 1 Enquire
25 N10128106
SCREW 		$3.85 12
26 N10338901
SCREW 		$0.77 (89.4% off) 5
28 N91028801
O-RING 		$2.96 1
29 N91029001
O-RING 		$7.06 1
30 N91029101
O-RING 		$37.92 1
