E-Gear Valves Group of Lamborghini Lamborghini Gallardo (2003-2005)

View All

Lamborghini Gallardo (2003-2005) - E-Gear Valves Group

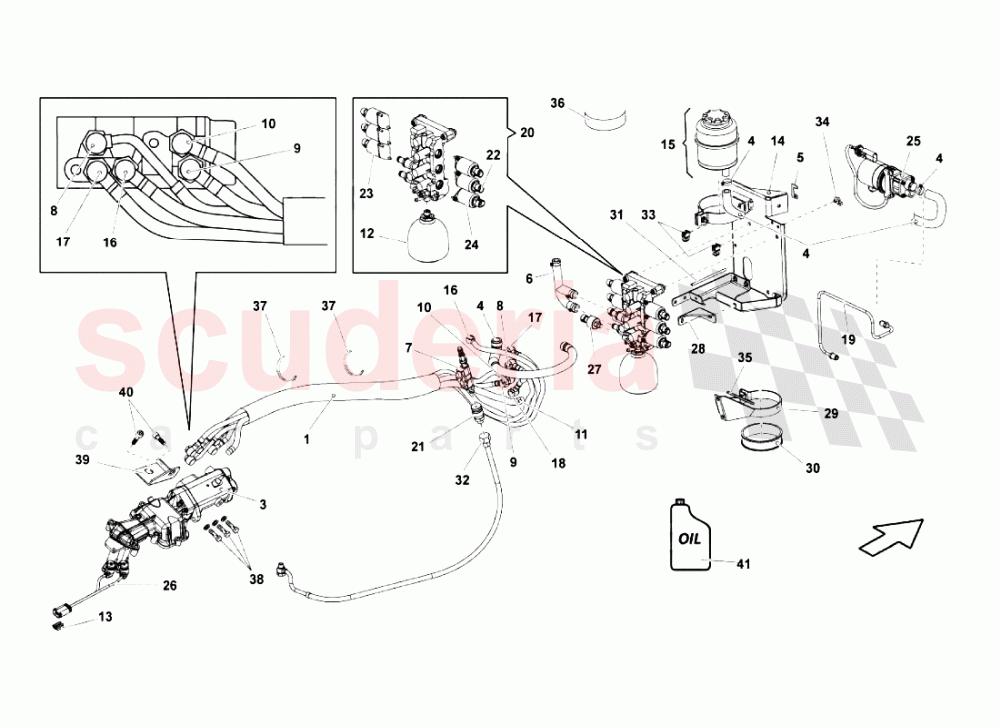

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86325111	TUBE I RECIRCULATE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325585	Storage Battery	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86325147	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325153	BRACKETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325161	SELESPEED OIL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325179	HIGH PRESSURE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325181C	VALVES GROUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325273	FEMALE CONNECTION (UNTIL THE VIN 6LA04009)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325293	ACTUATOR + PACKING + LIVES + VALVE PPV02	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325295	ACTUATOR + PACKING + LIVES + VALVE QPV02	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325297	ACTUATOR + PACKING + LIVES + VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86901137	ELECTRIC PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86907811	POSITION SENSORS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86919331	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408326125	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408326127	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408326129	PUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408326131	RUBBER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L115673	TUBE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86325831A	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325831B	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408326131A	RUBBER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86010530	NAMEPLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400971850B	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86398199A	BLEEDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86325191	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90216903	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900000170	OIL (1.0Ltr)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
00	R1400452	PIPE KIT	R1400452 PIPE KIT	-	1	Enquire
01	86317831	SHEATH	86317831 SHEATH	-	1	Enquire
03	86325059	ACTUATOR GROUP	86325059 ACTUATOR GROUP	-	1	Enquire
04	86325083	TUBE KIT	86325083 TUBE KIT	-	1	Enquire
05	86325085	ANCHORAGE CONNECTOR KIT	86325085 ANCHORAGE CONNECTOR KIT	-	1	Enquire
06	86325087	THREE-WAY PIPE KIT IN STOCK	86325087 THREE-WAY PIPE KIT IN STOCK	-	1	Enquire
07	86325089	KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009)	86325089 KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009)	-	1	Enquire
11	86325111	TUBE I RECIRCULATE KIT	86325111 TUBE I RECIRCULATE KIT	-	1	Enquire
12	86325585	Storage Battery IN STOCK	86325585 Storage Battery IN STOCK	-	1	Enquire
13	86325147	CLIP	86325147 CLIP	-	1	Enquire
14	86325153	BRACKETS	86325153 BRACKETS	-	1	Enquire
15	86325161	SELESPEED OIL TANK	86325161 SELESPEED OIL TANK	-	1	Enquire
19	86325179	HIGH PRESSURE TUBE	86325179 HIGH PRESSURE TUBE	-	1	Enquire
20	86325181C	VALVES GROUP	86325181C VALVES GROUP	-	1	Enquire
21	86325273	FEMALE CONNECTION (UNTIL THE VIN 6LA04009)	86325273 FEMALE CONNECTION (UNTIL THE VIN 6LA04009)	-	1	Enquire
22	86325293	ACTUATOR + PACKING + LIVES + VALVE PPV02	86325293 ACTUATOR + PACKING + LIVES + VALVE PPV02	-	2	Enquire
23	86325295	ACTUATOR + PACKING + LIVES + VALVE QPV02	86325295 ACTUATOR + PACKING + LIVES + VALVE QPV02	-	3	Enquire
24	86325297	ACTUATOR + PACKING + LIVES + VALVE	86325297 ACTUATOR + PACKING + LIVES + VALVE	-	1	Enquire
25	86901137	ELECTRIC PUMP KIT	86901137 ELECTRIC PUMP KIT	-	1	Enquire
26	86907811	POSITION SENSORS KIT	86907811 POSITION SENSORS KIT	-	1	Enquire
27	86919331	PRESSURE SENSOR	86919331 PRESSURE SENSOR	-	1	Enquire
28	408326125	BRACKET	408326125 BRACKET	-	1	Enquire
29	408326127	CLAMP	408326127 CLAMP	-	1	Enquire
30	408326129	PUFFER	408326129 PUFFER	-	1	Enquire
31	408326131	RUBBER GASKET	408326131 RUBBER GASKET	-	1	Enquire
32	7L115673	TUBE IN STOCK	7L115673 TUBE IN STOCK	-	1	Enquire
33	86325831A	CLAMP	86325831A CLAMP	-	2	Enquire
34	86325831B	CLAMP	86325831B CLAMP	-	2	Enquire
35	408326131A	RUBBER GASKET	408326131A RUBBER GASKET	-	1	Enquire
36	86010530	NAMEPLATE	86010530 NAMEPLATE	-	1	Enquire
37	400971850B	CLAMP	400971850B CLAMP	-	2	Enquire
38	86398199A	BLEEDER	86398199A BLEEDER	-	3	Enquire
39	86325191	BRACKET	86325191 BRACKET	-	1	Enquire
40	N90216903	SCREW	N90216903 SCREW	-	2	Enquire
41	900000170	OIL (1.0Ltr)	900000170 OIL (1.0Ltr)	-	1	Enquire
