Front Drive Shaft of Lamborghini Lamborghini Gallardo (2003-2005)

View All

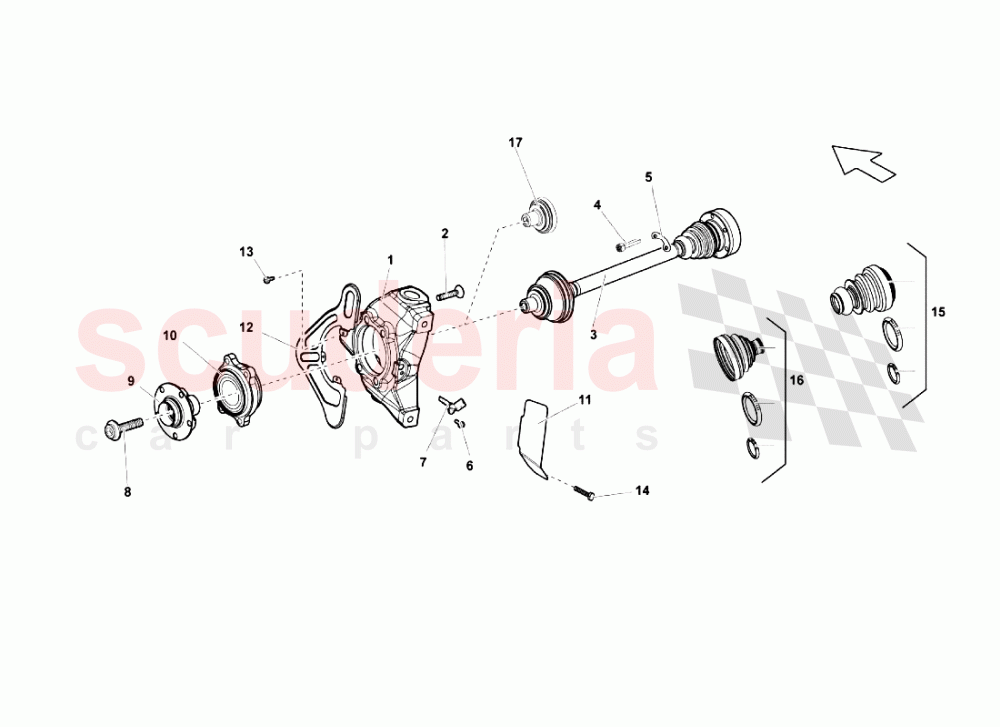

Lamborghini Gallardo (2003-2005) - Front Drive Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400614754A	RH PROTECTION	Enquire	To Order
	400614753A	LH PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400407722B	RH PROTECTION	Enquire	To Order
	400407721B	LH PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10459201	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400498099A	KIT AXELSHAFT FORE INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400498099	KIT AXELSHAFT FORE OUTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400407245A	FRONT LEFT HUB CARRIER	400407245A FRONT LEFT HUB CARRIER	-	1	Enquire
01	400407246A	FRONT RIGHT HUB CARRIER	400407246A FRONT RIGHT HUB CARRIER	-	1	Enquire
02	WHT000237A	TRIPLE SQUARE BOLT M1 2X 1.5 X 45	WHT000237A TRIPLE SQUARE BOLT M1 2X 1.5 X 45	-	8	Enquire
03	470407271B	DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	470407271B DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS	-	1	Enquire
03	400407271	LH FRONT OMOKINETIC DRIVE SHAFT	400407271 LH FRONT OMOKINETIC DRIVE SHAFT	-	1	Enquire
04	WHT000922	SCREW	WHT000922 SCREW	-	12	Enquire
05	400407357	PLATE	400407357 PLATE	-	6	Enquire
06	N10226101	SCREW	N10226101 SCREW	-	2	Enquire
07	4E0927803F	SPEED SENSOR	4E0927803F SPEED SENSOR	-	1	Enquire
07	4E0927804F	SPEED SENSOR	4E0927804F SPEED SENSOR	-	1	Enquire
08	4B0407643A	SHOULDERED BOLT	4B0407643A SHOULDERED BOLT	-	2	Enquire
09	4E0407613A	HUB	4E0407613A HUB	-	2	Enquire
10	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE	-	2	Enquire
11	400614754A	RH PROTECTION	400614754A RH PROTECTION	-	1	Enquire
11	400614753A	LH PROTECTION	400614753A LH PROTECTION	-	1	Enquire
12	400407722B	RH PROTECTION	400407722B RH PROTECTION	-	1	Enquire
12	400407721B	LH PROTECTION	400407721B LH PROTECTION	-	1	Enquire
13	N10459201	HEXAGON SOCKET HEAD BOLT	N10459201 HEXAGON SOCKET HEAD BOLT	-	6	Enquire
15	400498099A	KIT AXELSHAFT FORE INNER	400498099A KIT AXELSHAFT FORE INNER	-	2	Enquire
16	400498099	KIT AXELSHAFT FORE OUTER	400498099 KIT AXELSHAFT FORE OUTER	-	2	Enquire
