Accelerator Pedal (manual) of Lamborghini Lamborghini Gallardo (2008)

View All

Lamborghini Gallardo (2008) - Accelerator Pedal (manual)

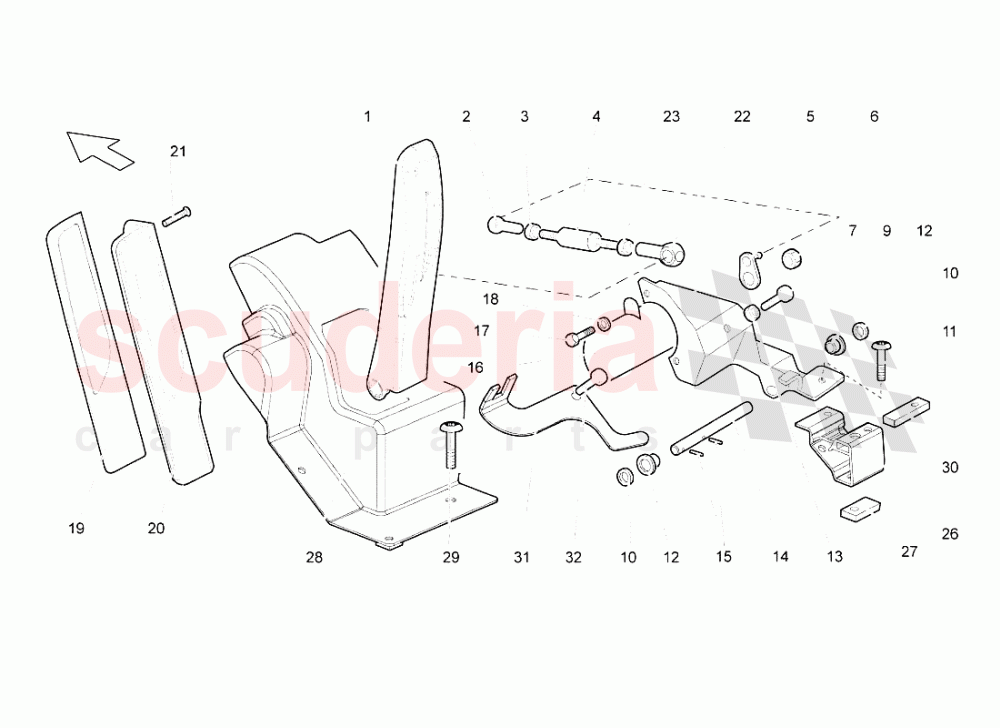

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	$2,419.35	1
002	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	$63.44	1
003	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	$526.87	2
004	400721743A	SHAFT	400721743A SHAFT	$39.92	1
005	400721651A	SUPPORT	400721651A SUPPORT	$156.58	1
006	400721728B	LEVER	400721728B LEVER	$62.77	1
007	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	1
009	N01024718	SCREW	N01024718 SCREW	$2.69 MSRP: ~~7.09~~ (62.1% off)	1
010	WHT000697	WASHER	WHT000697 WASHER	$0.98 MSRP: ~~7.24~~ (86.5% off)	2
011	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$11.56	6
012	400721543	BUSHING	400721543 BUSHING	$27.43	2
013	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	1
014	400721157	JOURNAL	400721157 JOURNAL	$32.81	1
015	N10206801	PIN	N10206801 PIN	$0.67 MSRP: ~~7.29~~ (90.8% off)	2
016	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	$1,848.13	1
017	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$0.74 MSRP: ~~7.30~~ (89.9% off)	2
018	8400628	WASHER	8400628 WASHER	$0.22 MSRP: ~~7.36~~ (97% off)	2
019	401864431A	RUBBER	401864431A RUBBER	$43.21	1
020	401864419C	FOOTREST PEDAL COVER	401864419C FOOTREST PEDAL COVER	$1,232.52	1
021	N10555901	SCREW M6X40	N10555901 SCREW M6X40	$0.82	2
022	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	$43.41	1
023	N01100520	NUT M5	N01100520 NUT M5	$0.95	2
026	400803427A	U-BOLT	400803427A U-BOLT	$70.42	1
027	401803016A	PLATE	401803016A PLATE	$81.33	1
028	401721585A	ACCELERATOR COVER BOX	401721585A ACCELERATOR COVER BOX	$136.44	1
029	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	$1.68	2
029	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$11.56	1
030	400723325B	PLATE	400723325B PLATE	$33.22	1
031	402971890A	BRACKET	402971890A BRACKET	$37.62	1
032	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.16	1
