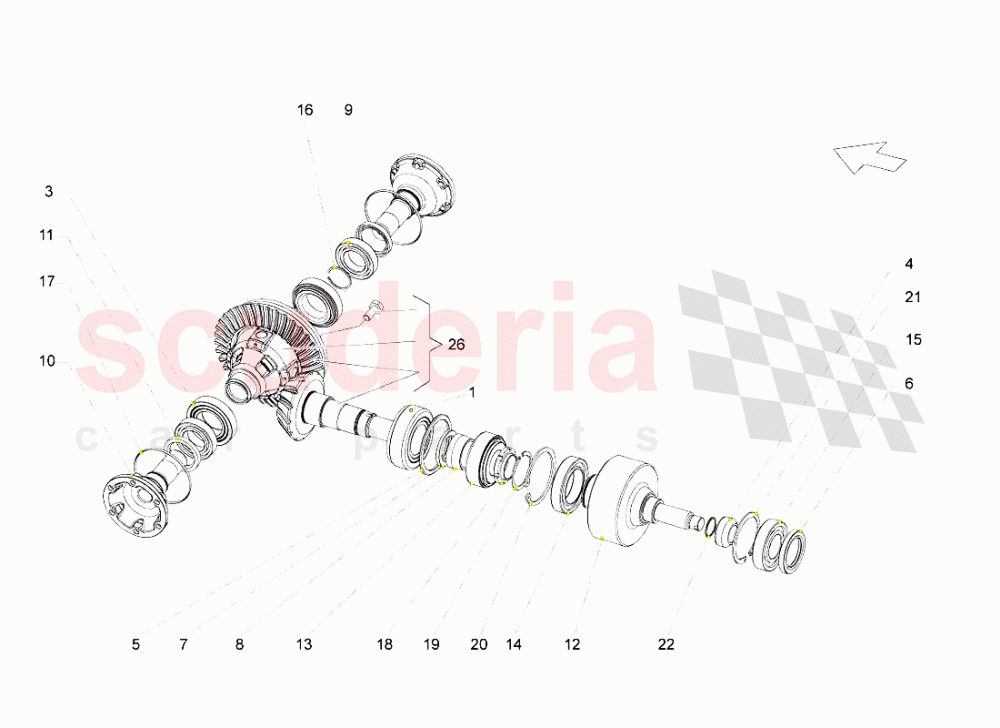

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86311211	BEARING	86311211 BEARING	$252.03	1
003	1S409123	BEARING	1S409123 BEARING	$88.18	2
004	1S409223	SPACER	1S409223 SPACER	$85.50	1
005	1S409231	SPACER	1S409231 SPACER	$71.24	1
006	1S409255	SEAL RING	1S409255 SEAL RING	$154.58	1
007	1S409267	SPACER mm 5	1S409267 SPACER mm 5	$50.81	1
007	1S409267E	SPACER mm. 5.60	1S409267E SPACER mm. 5.60	$50.81	1
007	1S409267D	SPACER mm. 5.25	1S409267D SPACER mm. 5.25	$54.26	1
008	1S409267A	SPACER	1S409267A SPACER	$50.81	1
009	1S409294	BEARING	1S409294 BEARING	$88.04	2
010	1S409355C	FLANGE	1S409355C FLANGE	$697.58	2
011	1S409399	SEAL RING	1S409399 SEAL RING	$52.74	2
012	1S409435C	VISCOUS COUPLING	1S409435C VISCOUS COUPLING	$12,050.22	1
013	1S409551	BEARING	1S409551 BEARING	$259.42	1
014	1S409770	BEARING	1S409770 BEARING	$336.04	1
015	1S409775	BEARING	1S409775 BEARING	$96.90	1
016	N10661601	SEAL RING	N10661601 SEAL RING	$0.58	2
017	N91094401	GASKET (SEE TABLE 409.02.00 - REF. 11)	N91094401 GASKET (SEE TABLE 409.02.00 - REF. 11)	$10.09	2
018	WHT000125	NUT	WHT000125 NUT	$98.67	1
019	1S409297	SEAL RING	1S409297 SEAL RING	$18.84	1
020	N0123501	RETAINING RING	N0123501 RETAINING RING	$7.27	1
021	N90329301	SEAL RING	N90329301 SEAL RING	$5.72	1
022	N90832501	O-RING	N90832501 O-RING	$4.64	1
026	1S409111	DIFFERENTIAL + BEVEL GEAR PAIR	1S409111 DIFFERENTIAL + BEVEL GEAR PAIR	$3,407.25	1
