E-gear Valves Group of Lamborghini Lamborghini Gallardo (2008)

View All

Lamborghini Gallardo (2008) - E-gear Valves Group

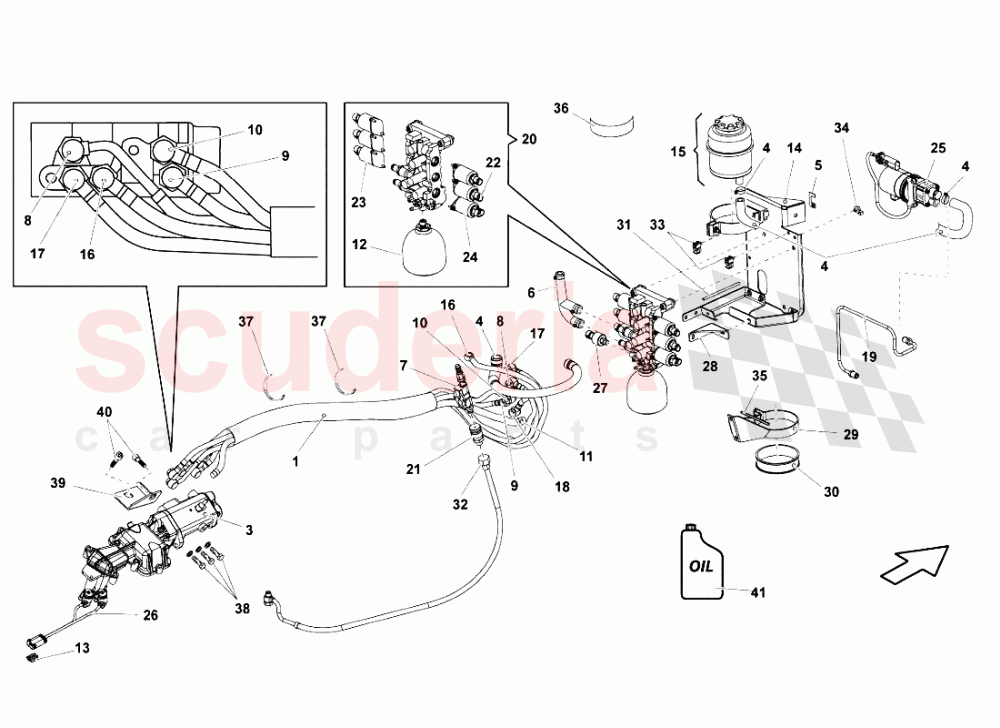

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	R1400452	PIPE KIT	R1400452 PIPE KIT	$5,709.25	1
001	86317831	SHEATH	86317831 SHEATH	$1,088.72	1
003	86325059	ACTUATOR GROUP	86325059 ACTUATOR GROUP	$7,970.41	1
004	86325083	TUBE KIT	86325083 TUBE KIT	$1,188.18	1
005	86325085	ANCHORAGE CONNECTOR KIT	86325085 ANCHORAGE CONNECTOR KIT	$47.84	1
006	86325087	THREE-WAY PIPE KIT IN STOCK	86325087 THREE-WAY PIPE KIT IN STOCK	$1,686.80	1
007	86325089	KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009)	86325089 KIT QUICK DISCONNECT (UNTIL THE VIN 6LA04009)	$1,740.59	1
007	86325089A	KIT QUICK DISCONNECT (FROM VIN 6LA04010)	86325089A KIT QUICK DISCONNECT (FROM VIN 6LA04010)	$2,298.38	1
011	86325111	TUBE I RECIRCULATE KIT	86325111 TUBE I RECIRCULATE KIT	$502.71	1
012	86325585	Storage Battery IN STOCK	86325585 Storage Battery IN STOCK	$497.02	1
013	86325147	CLIP	86325147 CLIP	-	1	Enquire
014	86325153	BRACKETS	86325153 BRACKETS	$767.49	1
015	86325161	SELESPEED OIL TANK	86325161 SELESPEED OIL TANK	$762.10	1
019	86325179	HIGH PRESSURE TUBE	86325179 HIGH PRESSURE TUBE	$69.10	1
020	86325181C	VALVES GROUP	86325181C VALVES GROUP	$11,364.23	1
021	86325273A	CONNECTION (FROM VIN 6LA04010) IN STOCK	86325273A CONNECTION (FROM VIN 6LA04010) IN STOCK	$420.70	1
021	86325273	FEMALE CONNECTION (UNTIL THE VIN 6LA04009)	86325273 FEMALE CONNECTION (UNTIL THE VIN 6LA04009)	$306.88	1
022	86325293	ACTUATOR + PACKING + LIVES + VALVE PPV02	86325293 ACTUATOR + PACKING + LIVES + VALVE PPV02	$1,313.17	2
023	86325295	ACTUATOR + PACKING + LIVES + VALVE QPV02	86325295 ACTUATOR + PACKING + LIVES + VALVE QPV02	$1,305.10	3
024	86325297	ACTUATOR + PACKING + LIVES + VALVE	86325297 ACTUATOR + PACKING + LIVES + VALVE	$1,438.18	1
025	86901137	ELECTRIC PUMP KIT	86901137 ELECTRIC PUMP KIT	$3,407.25	1
026	86907811	POSITION SENSORS KIT	86907811 POSITION SENSORS KIT	$899.63	1
027	86919331	PRESSURE SENSOR	86919331 PRESSURE SENSOR	$267.79 MSRP: ~~366.00~~ (26.8% off)	1
028	408326125	BRACKET	408326125 BRACKET	$25.48	1
029	408326127	CLAMP	408326127 CLAMP	$188.17	1
030	408326129	PUFFER	408326129 PUFFER	$28.76	1
031	408326131	RUBBER GASKET	408326131 RUBBER GASKET	$26.68	1
032	7L115673	TUBE IN STOCK	7L115673 TUBE IN STOCK	$1,291.67	1
033	86325831A	CLAMP	86325831A CLAMP	$5.79	2
034	86325831B	CLAMP	86325831B CLAMP	-	2	Enquire
035	408326131A	RUBBER GASKET	408326131A RUBBER GASKET	$25.87	1
036	86010530	NAMEPLATE	86010530 NAMEPLATE	$9.00	1
037	400971850B	CLAMP	400971850B CLAMP	$1.32	2
038	86398199A	BLEEDER	86398199A BLEEDER	$86.84	3
039	86325191	BRACKET	86325191 BRACKET	$8.96	1
040	N91065401	SCREW M8X14 IN STOCK	N91065401 SCREW M8X14 IN STOCK	$1.63 MSRP: ~~7.22~~ (77.4% off)	2
041	900000170	OIL (1.0Ltr)	900000170 OIL (1.0Ltr)	$58.33	1
