Oil Container of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

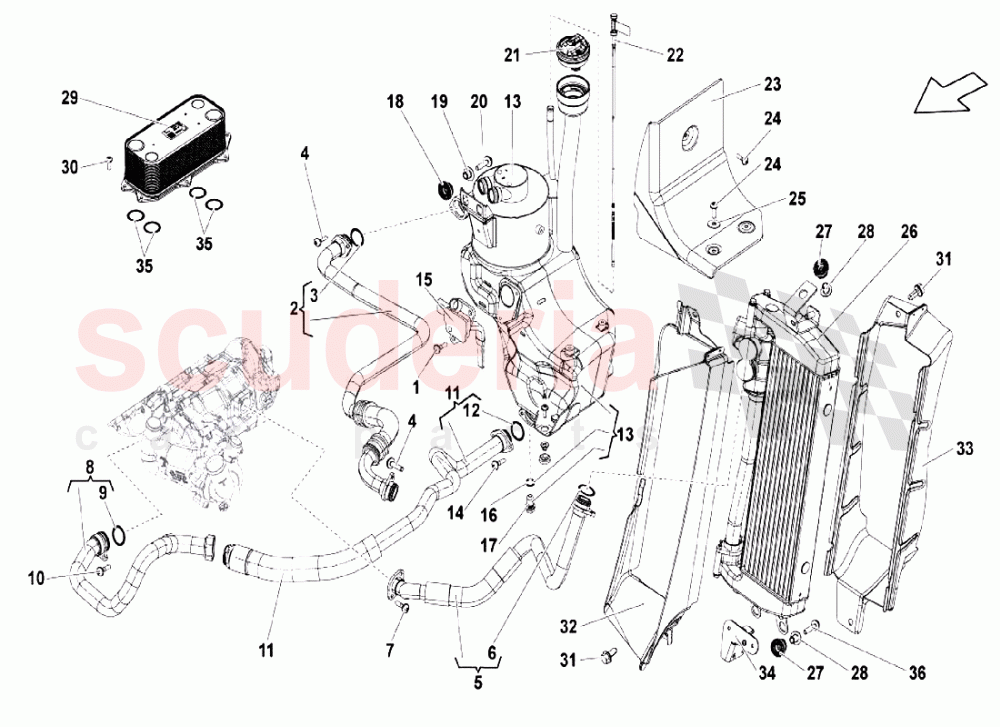

Lamborghini Gallardo LP550 Coupe - Oil Container

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N91096801	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91096801 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.55 MSRP: ~~7.29~~ (78.7% off)	2
003	N91069701	O-RING IN STOCK	N91069701 O-RING IN STOCK	$4.78 MSRP: ~~46.05~~ (89.6% off)	2
004	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	3
005	400117413B	PIPE	400117413B PIPE	$3,676.06	1
006	N91069701	O-RING IN STOCK	N91069701 O-RING IN STOCK	$4.78 MSRP: ~~46.05~~ (89.6% off)	1
007	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	3
008	420115223	PIPE	420115223 PIPE	$1,733.87	1
009	WHT007432	O-RING IN STOCK	WHT007432 O-RING IN STOCK	$3.89	1
011	420115687F	PIPE	420115687F PIPE 420115687G	$434.16	1
012	WHT007432	O-RING IN STOCK	WHT007432 O-RING IN STOCK	$3.89	2
015	420907660	OIL LEVEL SENSOR	420907660 OIL LEVEL SENSOR	$323.25	1
016	N0138157	SEAL RING IN STOCK	N0138157 SEAL RING IN STOCK	$3.89	1
017	N90813202	SEAL BOLT WITH SEALING RING OIL SUMP M14 X 22 IN STOCK	N90813202 SEAL BOLT WITH SEALING RING OIL SUMP M14 X 22 IN STOCK	$12.21	1
018	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	4
019	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	4
020	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.55	4
021	7L103485A	OIL FILLER CAP	7L103485A OIL FILLER CAP	$105.78	1
022	400115607	OIL DIPSTICK	400115607 OIL DIPSTICK	$22.73	1
023	420115339D	HEAT SHIELD	420115339D HEAT SHIELD	$22.92	1
024	N10680302	HEXAGON SOCKET FLAT HEAD BOLT	N10680302 HEXAGON SOCKET FLAT HEAD BOLT	$0.42 MSRP: ~~7.34~~ (94.3% off)	3
025	N91056601	WASHER IN STOCK	N91056601 WASHER IN STOCK	$0.21 MSRP: ~~7.37~~ (97.2% off)	3
026	400117015	OIL COOLER	400117015 OIL COOLER	$1,646.50	1
027	8Z0129669A	GROMMET IN STOCK	8Z0129669A GROMMET IN STOCK	$6.11	3
028	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$8.56	3
029	7L117021M	OIL COOLER IN STOCK	7L117021M OIL COOLER IN STOCK	$498.41	1
030	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	8
031	N0901486	HEXAGON HEAD BOLT (COMBI)	N0901486 HEXAGON HEAD BOLT (COMBI)	$0.77 MSRP: ~~7.29~~ (89.4% off)	4
032	400317025A	LH CONVEYOR	400317025A LH CONVEYOR	$325.96	1
033	400117335A	COOLER EXIT CONE	400117335A COOLER EXIT CONE	$1,037.66	1
034	400117097C	BRACKET	400117097C BRACKET	$62.24	1
035	N90958101	O-RING IN STOCK	N90958101 O-RING IN STOCK	$27.00	4
036	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.55	3
