Camshaft Timing Chain of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

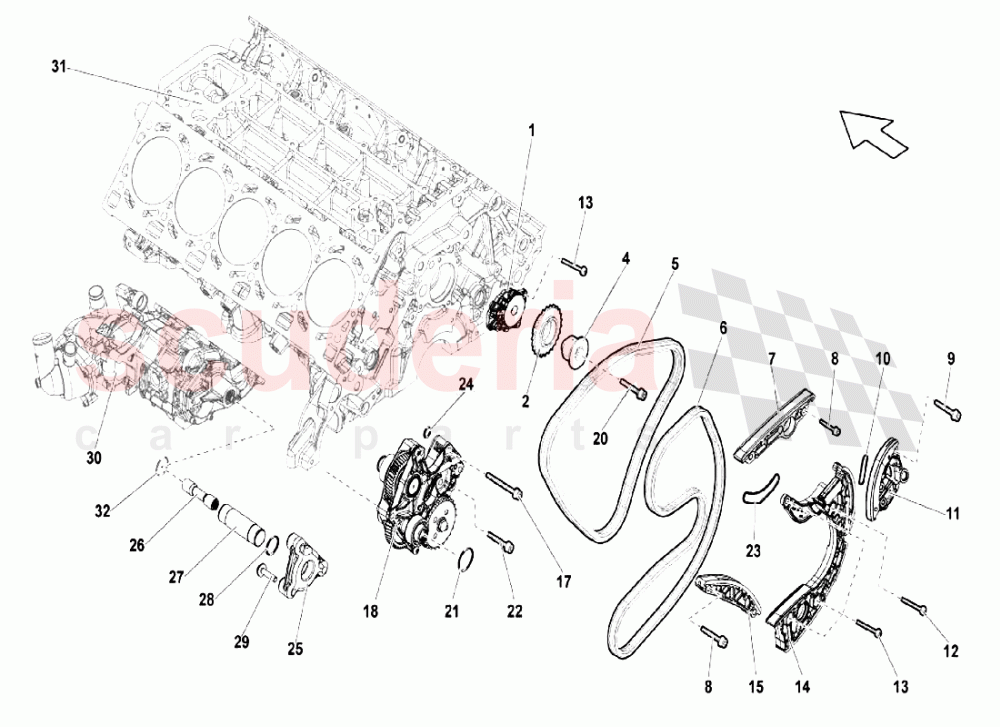

Lamborghini Gallardo LP550 Coupe - Camshaft Timing Chain

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
001	79103337G	SUPPORT	79103337G SUPPORT	-	1	Enquire
002	79109570AT	CHAIN SPROCKET	79109570AT CHAIN SPROCKET	-	1	Enquire
004	79109224E	BEARING PIN	79109224E BEARING PIN	-	1	Enquire
007	79109469AL	GUIDE RAIL	79109469AL GUIDE RAIL	-	1	Enquire
008	N91129001	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91129001 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	4	Enquire
009	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
010	79109139L	SEAL	79109139L SEAL	-	1	Enquire
012	N10554002	ROUND HD. SCREW	N10554002 ROUND HD. SCREW	-	1	Enquire
013	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	-	9	Enquire
014	79109507AF	CHAIN TENSIONER	79109507AF CHAIN TENSIONER	-	1	Enquire
015	79109469AM	GUIDE RAIL	79109469AM GUIDE RAIL	-	1	Enquire
017	N91119601	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91119601 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	5	Enquire
018	7L109359T	SUPPORT	7L109359T SUPPORT	-	1	Enquire
020	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	1	Enquire
022	N91046302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91046302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	1	Enquire
023	79109139M	SEAL	79109139M SEAL	-	1	Enquire
024	N90740801	O-RING	N90740801 O-RING	-	1	Enquire
025	7L103707B	COVER	7L103707B COVER	-	1	Enquire
026	7L115138H	COUPLING	7L115138H COUPLING	-	1	Enquire
027	7L115467B	PIPE	7L115467B PIPE	-	1	Enquire
028	WHT008700	O-RING	WHT008700 O-RING	-	1	Enquire
029	N10704501	OVAL HEXAGON SOCKET HEAD BOLT	N10704501 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
