Complete Cylinder Head 1 of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

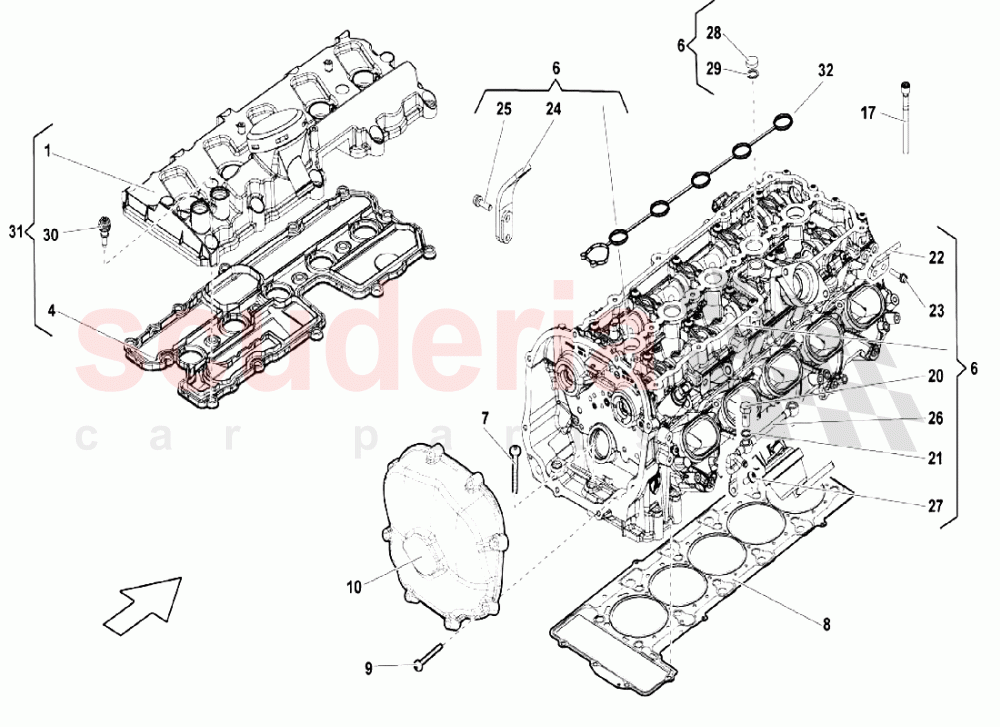

Lamborghini Gallardo LP550 Coupe - Complete Cylinder Head 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
004	7L103483J	SEAL	7L103483J SEAL	-	1	Enquire
007	N10470705	ROUND HD. SCREW	N10470705 ROUND HD. SCREW	-	5	Enquire
008	7L103383BA	CYLINDER HEAD GASKET	7L103383BA CYLINDER HEAD GASKET	-	1	Enquire
009	N91068001	HEXAGON SOCKET FLAT HEAD BOLT	N91068001 HEXAGON SOCKET FLAT HEAD BOLT	-	8	Enquire
017	WHT001411	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	WHT001411 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	12	Enquire
020	N0210756	BANJO BOLT	N0210756 BANJO BOLT	-	2	Enquire
021	N0138063	SEAL RING	N0138063 SEAL RING	-	4	Enquire
022	7L103390R	TRANSPORTATION SHACKLE	7L103390R TRANSPORTATION SHACKLE	-	1	Enquire
023	N91139201	SCREW WITH INT. SERRATIONS	N91139201 SCREW WITH INT. SERRATIONS	-	2	Enquire
024	7L103390M	TRANSPORTATION SHACKLE	7L103390M TRANSPORTATION SHACKLE	-	1	Enquire
025	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	2	Enquire
026	7L121455F	PIPE	7L121455F PIPE	-	1	Enquire
027	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT	-	1	Enquire
028	N0160293	OIL DRAIN PLUG M18 X1.5	N0160293 OIL DRAIN PLUG M18 X1.5	-	1	Enquire
029	N0138326	SEAL RING	N0138326 SEAL RING	-	1	Enquire
030	6B103831J	HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	6B103831J HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	-	16	Enquire
031	7L103471AC	CYLINDER HEAD COVER WITH GASKET	7L103471AC CYLINDER HEAD COVER WITH GASKET	-	1	Enquire
032	7L103649A	SEAL	7L103649A SEAL	-	1	Enquire
