Crankshaft of Lamborghini Lamborghini Gallardo LP550 Coupe

View All

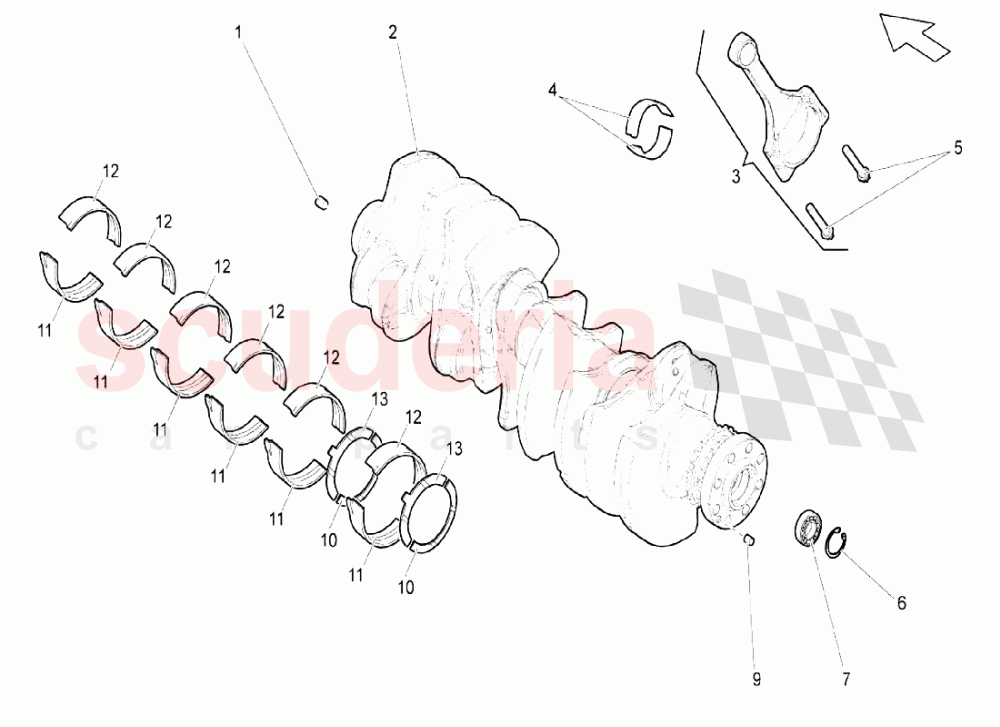

Lamborghini Gallardo LP550 Coupe - Crankshaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	3L260817	CENTRE SLEEVE	3L260817 CENTRE SLEEVE	-	3	Enquire
002	7L105101BB	Crankshaft	7L105101BB Crankshaft	-	1	Enquire
003	7L198401B	KIT COMPLETE CONNECTING ROD -	7L198401B KIT COMPLETE CONNECTING ROD -	-	1	Enquire
004	7L105701N	Connecting Rod Bearing Shell (upper)	7L105701N Connecting Rod Bearing Shell (upper)	-	20	Enquire
004	7L105701NBLA	Half bearing Blue (1,401)	7L105701NBLA Half bearing Blue (1,401)	-	20	Enquire
004	7L105701NGLB	Yellow (1,396)	7L105701NGLB Yellow (1,396)	-	20	Enquire
005	WHT004562	BOLT - CONNECTING ROD	WHT004562 BOLT - CONNECTING ROD	-	20	Enquire
006	N0123031	SECURING RING	N0123031 SECURING RING	-	1	Enquire
007	7L105276	BALL BEARING	7L105276 BALL BEARING	-	1	Enquire
009	N0131991	PIN	N0131991 PIN	-	1	Enquire
010	77105637A	Shim Adjustment CrankShaft	77105637A Shim Adjustment CrankShaft	-	2	Enquire
011	7L105591DGLB	BEARING YELLOW (LOWER 2,508) -	7L105591DGLB BEARING YELLOW (LOWER 2,508) -	-	6	Enquire
011	7L105591C	Crankshaft Bearing Shell (lower)	7L105591C Crankshaft Bearing Shell (lower)	-	6	Enquire
011	7L105591CROT	BEARING RED (LOWER 2,502) -	7L105591CROT BEARING RED (LOWER 2,502) -	-	6	Enquire
011	7L105591CSWA	BEARING BLACK (LOWER 2,496) -	7L105591CSWA BEARING BLACK (LOWER 2,496) -	-	6	Enquire
011	7L105591DBLA	BEARING BLUE (LOWER 2,514) -	7L105591DBLA BEARING BLUE (LOWER 2,514) -	-	6	Enquire
012	7L105561C	Crankshaft Bearing Shell (upper)	7L105561C Crankshaft Bearing Shell (upper)	-	6	Enquire
012	7L105561CGLB	BEARING YELLOW (UPPER 2,508) -	7L105561CGLB BEARING YELLOW (UPPER 2,508) -	-	6	Enquire
012	7L105561FBLA	BEARING BLUE (UPPER 2,514) -	7L105561FBLA BEARING BLUE (UPPER 2,514) -	-	6	Enquire
012	7L105561CROT	BEARING RED (UPPER 2,502) -	7L105561CROT BEARING RED (UPPER 2,502) -	-	6	Enquire
012	7L105561F	Crankshaft Bearing Shell (upper)	7L105561F Crankshaft Bearing Shell (upper)	-	6	Enquire
012	7L105561CSWA	BEARING BLACK (UPPER 2,496) -	7L105561CSWA BEARING BLACK (UPPER 2,496) -	-	6	Enquire
012	7L105561FGLB	Yellow (2,508)	7L105561FGLB Yellow (2,508)	-	6	Enquire
012	7L105561FROT	Red (2,502)	7L105561FROT Red (2,502)	-	6	Enquire
012	7L105561FSWA	Black (2,496)	7L105561FSWA Black (2,496)	-	6	Enquire
013	77105635A	Shim Adjustment CrankShaft	77105635A Shim Adjustment CrankShaft	-	2	Enquire
