Rear Suspension of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

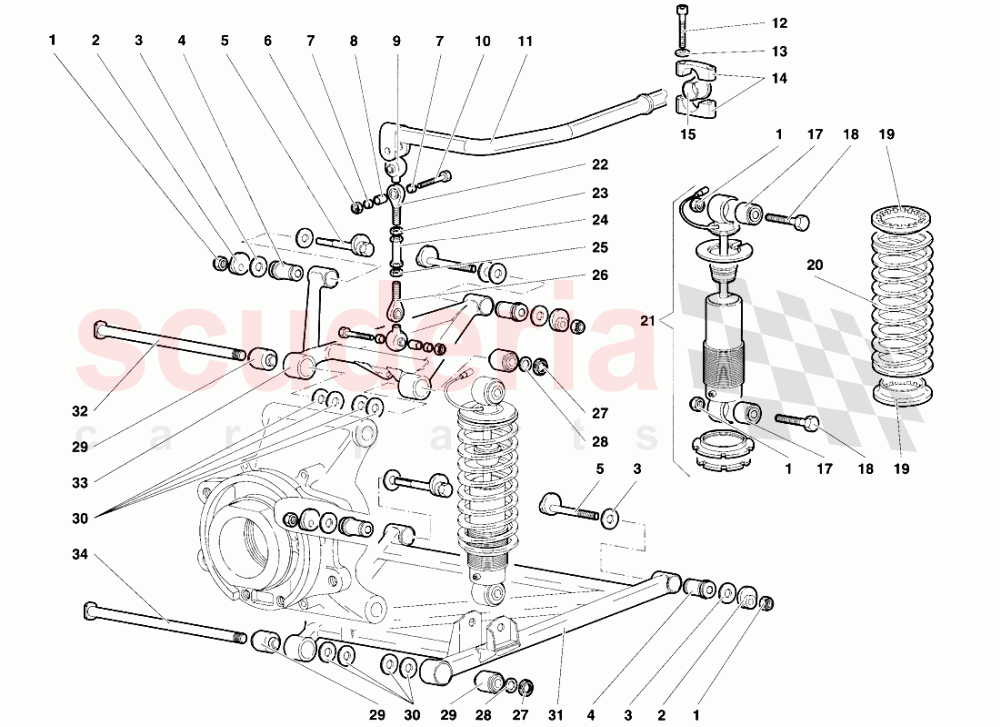

Lamborghini Diablo VT (1993-1998) - Rear Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	$21.86	8
001	8201226	NUT	8201226 NUT See also WHT003355	$1.43	1
002	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,318.56	8
003	410407295D	WASHER	410407295D WASHER SPESSORE 3 MM	$29.71	1
003	5133488	SHIM	5133488 SHIM SPESSORE 1 ,5 MM	$3.25	1
003	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE1MM	$4.52	1
003	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM SPESSORE 2,5 MM	$7.32	1
003	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM SPESSORE2MM	$6.66	1
004	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$50.31	8
005	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,318.56	8
006	8200804	NUT M8	8200804 NUT M8 DADO	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
007	5227297	BUSHING	5227297 BUSHING BOCCOLA	$32.36	8
008	5227298	BUSHING	5227298 BUSHING BOCCOLA	$17.62	4
009	5109714	BOOT	5109714 BOOT CAPPUCCIO	$26.25	4
010	8100810	SCREW	8100810 SCREW VITE	-	4	Enquire
011	5234393	TORSION BAR	5234393 TORSION BAR BARRA TORSIONE	$3,436.71	1
012	8700609	SCREW	8700609 SCREW VITE	$0.53 MSRP: ~~7.31~~ (92.7% off)	4
013	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	4
014	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$311.40	2
015	5238302	BUSHING	5238302 BUSHING BOCCOLA	$144.81	2
017	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$587.37	8
018	8101259	SCREW	8101259 SCREW VITE	$15.53	8
019	410512385	RUBBER RING	410512385 RUBBER RING	$53.43	8
020	5226157	SPRING	5226157 SPRING MOLLA	$380.90 MSRP: ~~398.00~~ (4.3% off)	4
021	5233166	SHOCK ABSORBER (lifting system)	5233166 SHOCK ABSORBER (lifting system) use part number 0R1320014 kit	-	4	Enquire
022	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$264.79	2
023	8201016	NUT	8201016 NUT DADO	$22.76	2
024	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$114.15	2
025	8201014	NUT	8201014 NUT DADO	$6.15	2
026	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$152.72	2
027	8251702	PLUG	8251702 PLUG GHIERA	$3.85 MSRP: ~~3.95~~ (2.5% off)	4
028	8401708	WASHER	8401708 WASHER RONDELLA	$2.56	4
029	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$454.50	8
030	8401710	WASHER	8401710 WASHER RONDELLA	$41.45	24
031	5225907	ARM	5225907 ARM BRACCIO INFERIORE SX	$1,968.56	1
031	5225906	ARM	5225906 ARM BRACCIO INFERIORE DX	$1,990.31	1
032	5225204	PIN	5225204 PIN PERNO	$91.82	2
033	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,388.33	1
033	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SX	$2,656.13	1
034	5225205	PIN	5225205 PIN PERNO	$91.82	2
