Lamborghini Diablo VT (1993-1998) - Steering 2

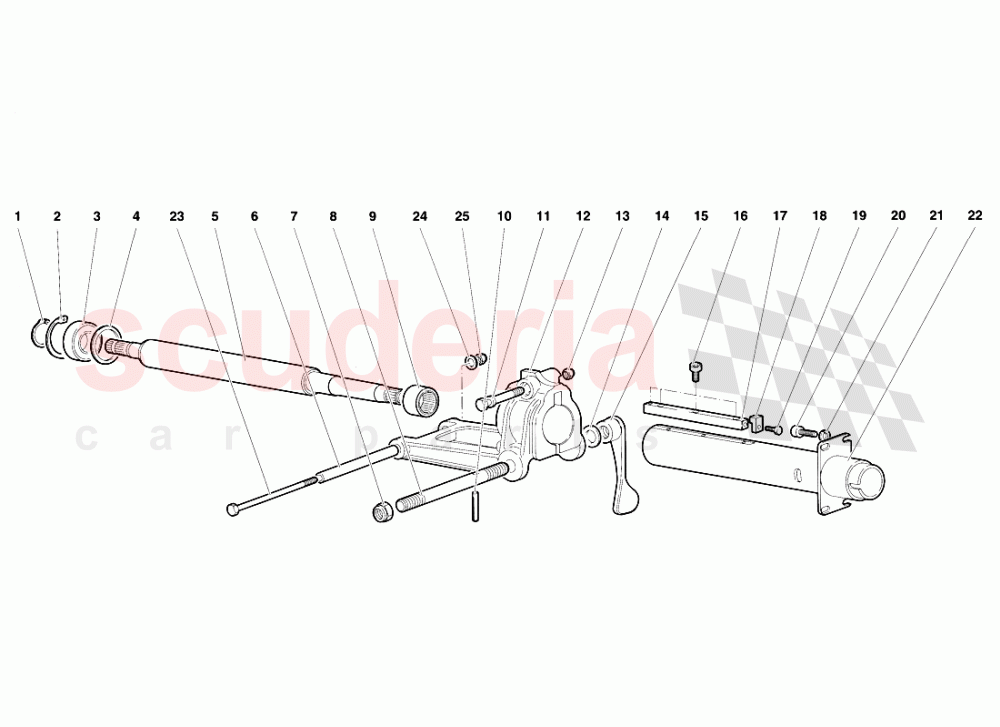

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8581501	RETAINER RING	8581501 RETAINER RING ANELLO RITEGNO	-	1	Enquire
002	7M109381	RETAINING RING	7M109381 RETAINING RING ANELLO RITEGNO	-	1	Enquire
003	8501703	BEARING	8501703 BEARING CUSCINETTO	-	1	Enquire
004	4330715	SHIM	4330715 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
004	4330714	SHIM	4330714 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
004	4330716	SHIM	4330716 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
005	4319324	STEERING COLUMN	4319324 STEERING COLUMN PIANTONE STERZO	-	1	Enquire
006	4309824	PIN	4309824 PIN PERNO	-	1	Enquire
007	8201416	NUT	8201416 NUT DADO	-	1	Enquire
008	4331627	PIN	4331627 PIN PERNO	-	1	Enquire
009	8522002	BEARING	8522002 BEARING CUSCINETTO	-	1	Enquire
010	8900401	PIN	8900401 PIN SA	-	1	Enquire
011	8100852	SCREW	8100852 SCREW VITE	-	1	Enquire
012	4327449	SUPPORT - SUPPORTO CANOTTO	4327449 SUPPORT - SUPPORTO CANOTTO O CANOTTO	-	1	Enquire
013	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
014	8401427	WASHER	8401427 WASHER RONDELLA	-	1	Enquire
015	4331626	LEVER	4331626 LEVER LEVA	-	1	Enquire
016	N10648502	SCREW M5X10	N10648502 SCREW M5X10 VITE	-	4	Enquire
017	4310698	GUIDE	4310698 GUIDE GUIDA	-	1	Enquire
018	4330628	LOCK KEY	4330628 LOCK KEY CHIAVE Dl FERMtf	-	1	Enquire
019	8100401	SCREW	8100401 SCREW VITE	-	1	Enquire
020	8700611	SCREW UNI 5931 6X14	8700611 SCREW UNI 5931 6X14 VITE	-	4	Enquire
021	WHT003053	WASHER	WHT003053 WASHER RONDELLA	-	4	Enquire
022	4330288	PIPE	4330288 PIPE TUBO PORTA ALBERO	-	1	Enquire
023	8100815	SCREW	8100815 SCREW VITE	-	1	Enquire
024	8400801	WASHER	8400801 WASHER RONDELLA	-	1	Enquire
025	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
