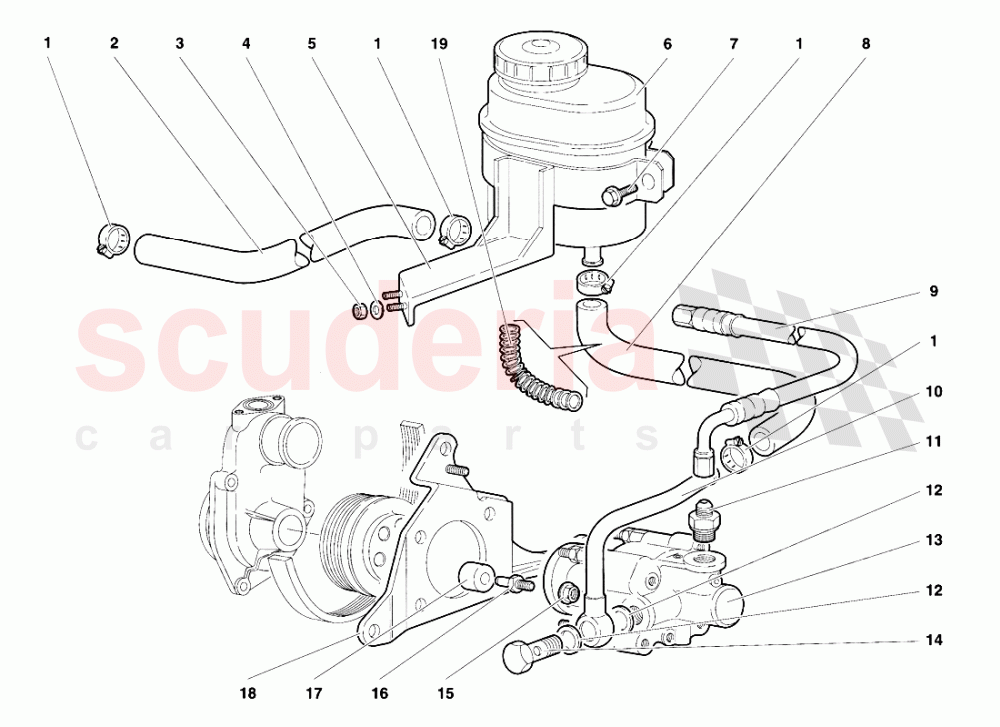

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8831524	STRAP	8831524 STRAP FASCETTA	-	4	Enquire
002	4033461	PIPE	4033461 PIPE TUBO	$12.52	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
004	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
005	4034058	SUPPORT - SUPPORTO	4034058 SUPPORT - SUPPORTO O	$140.21	1
006	4033456	OIL RESERVOIR	4033456 OIL RESERVOIR SERBATOIO OLIO	$476.45	1
007	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$1.89	1
008	4033457	PIPE	4033457 PIPE TUBO	$55.22	1
009	4033465	PIPE	4033465 PIPE TUBO	$506.62	1
010	4033467	CONNECTION	4033467 CONNECTION RACCORDO	$93.54 MSRP: ~~97.80~~ (4.4% off)	1
011	4033472	CONNECTION	4033472 CONNECTION RACCORDO	$17.00 MSRP: ~~17.20~~ (1.2% off)	1
012	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 RONDELLA IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	2
013	4032364	SERVOST. PUMP	4032364 SERVOST. PUMP POMPA SERVOSTERZO	$3,213.40	1
014	4009760	SCREW	4009760 SCREW VITE FORATA	-	1	Enquire
015	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING DADO	$2.29 MSRP: ~~7.22~~ (68.3% off)	3
016	4032357	PIN	4032357 PIN PERNO	$130.89	3
017	4033912	POWER STEERING PUMP PIN SNAP RING	4033912 POWER STEERING PUMP PIN SNAP RING ANELLO GOMMA	$29.24	3
018	4032356	SUPPORT - SUPPORTO	4032356 SUPPORT - SUPPORTO O	$497.53	1
019	410201212	SPRIMG	410201212 SPRIMG MOLLA	$40.41	1
