Fuel System (for Cars With Fast Fuel Insertion) 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

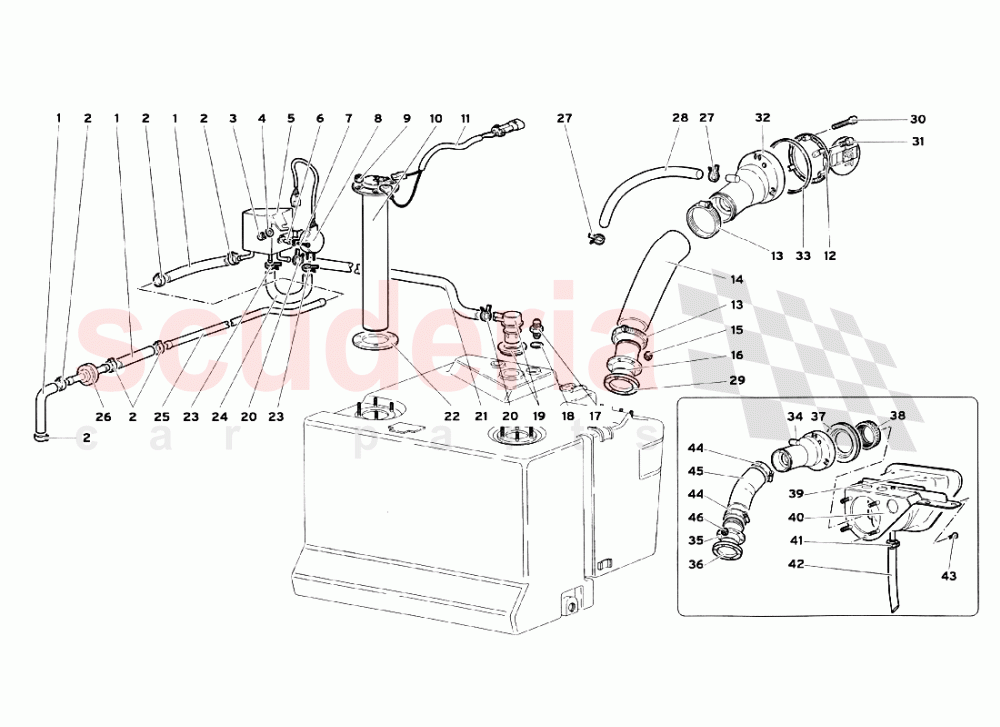

Lamborghini Diablo SV (1999) - Fuel System (for Cars With Fast Fuel Insertion) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	62001398	PIPE	62001398 PIPE (Valid for cars with fast fuel intake) TUBO	$13.40	3
002	8831528	CLAMP	8831528 CLAMP (Valid for cars with fast fuel intake) FASCETTA	$9.27	6
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for cars with fast fuel intake) DADO IN STOCK	$2.04	1
004	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for cars with fast fuel intake) RONDELLA IN STOCK	$0.28	1
005	62001351	SEGREGATOR	62001351 SEGREGATOR (Valid for cars with fast fuel intake) SEPARATORE VAPORI BENZ.	$320.62 MSRP: ~~431.00~~ (25.6% off)	1
006	62001396	RUBBER BUSHING	62001396 RUBBER BUSHING (Valid for cars with fast fuel intake) BOCCOLA COMMA	$2.05 MSRP: ~~2.10~~ (2.4% off)	2
007	8700346	SCREW	8700346 SCREW (Valid for cars with fast fuel intake) VITE	$0.09 MSRP: ~~7.38~~ (98.8% off)	2
008	400906206	EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	400906206 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR (Valid for cars with fast fuel intake) E	$2,634.41	1
009	N0211963	NUT IN STOCK	N0211963 NUT (Valid for cars with fast fuel intake) DADO IN STOCK	$0.76	5
010	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE (Valid for cars with fast fuel intake) INDICATORE LIVELLO CARBUR.	$343.67 MSRP: ~~666.00~~ (48.4% off)	1
011	6135126	ELECT CABLE	6135126 ELECT CABLE (Valid for cars with fast fuel intake) CABLAGGIO GALLEGGIANTE	$9.61 MSRP: ~~9.75~~ (1.4% off)	1
012	9490521	TANK CAP	9490521 TANK CAP (Valid for cars with fast fuel intake) TAPPO SERBATOIO	$248.77	1
013	8834501	STRAP	8834501 STRAP (Valid for cars with fast fuel intake) FASCETTA	-	2	Enquire
014	62004930	PIPE	62004930 PIPE (Valid for cars with fast fuel intake) TUBO	$75.27	1
015	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT (Valid for cars with fast fuel intake) DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
016	62004914	UNION	62004914 UNION (Valid for cars with fast fuel intake) BOCCHETTONE	$294.68	1
017	62001267	CONNECTION	62001267 CONNECTION (Valid for cars with fast fuel intake) RACCORDO	$33.82 MSRP: ~~35.40~~ (4.5% off)	1
018	8401425	WASHER	8401425 WASHER (Valid for cars with fast fuel intake) RONDELLA	-	1	Enquire
019	62001272	ROLL OVER VALVE	62001272 ROLL OVER VALVE (Valid for cars with fast fuel intake) VALVOLA ROLL OVER	$338.73 MSRP: ~~343.00~~ (1.2% off)	1
020	8830131	CLAMP	8830131 CLAMP (Valid for cars with fast fuel intake) FASCETTA	$5.87	2
021	62001160	PIPE	62001160 PIPE (Valid for cars with fast fuel intake) TUBO	$13.89 MSRP: ~~14.45~~ (3.9% off)	1
022	6229649	FUEL LEVEL GAUGE FLANGE SEAL IN STOCK	6229649 FUEL LEVEL GAUGE FLANGE SEAL (Valid for cars with fast fuel intake) GUARNIZIONE IN STOCK	$17.95	1
023	8830128	CLAMP	8830128 CLAMP (Valid for cars with fast fuel intake) FASCETTA	$0.46	2
024	62001397	PIPE	62001397 PIPE (Valid for cars with fast fuel intake) TUBO	$5.82 MSRP: ~~5.95~~ (2.2% off)	1
025	6237081	PIPE	6237081 PIPE (Valid for cars with fast fuel intake) TUBO	$44.74	1
026	62001313	VALVE	62001313 VALVE (Valid for cars with fast fuel intake) VALVOLA	$31.84	1
027	8830214	STRAP	8830214 STRAP (Valid for cars with fast fuel intake) FASCETTA	$3.77	2
028	62005001	PIPE	62005001 PIPE (Valid for cars with fast fuel intake) TUBO SFIATO	$32.95 MSRP: ~~33.30~~ (1.1% off)	1
029	6205360	GASKET IN STOCK	6205360 GASKET (Valid for cars with fast fuel intake) GUARNIZIONE IN STOCK	$98.53	1
030	8740505	SCREW	8740505 SCREW (Valid for cars with fast fuel intake) VITE	$0.34	3
031	8740512	DOWEL	8740512 DOWEL (Valid for cars with fast fuel intake) GRANO	$0.21	3
032	62004824	UNION	62004824 UNION (Valid for cars with fast fuel intake) BOCCHETTONE	$1,904.47	1
033	9490527	GASKET	9490527 GASKET (Valid for cars with fast fuel intake) GUARNIZIONE	$85.98	1
034	62004922	UNION IN STOCK	62004922 UNION (Valid for cars with fast fuel intake) (Valid for USA - July 1999) BOCCHETTONE IN STOCK	$846.16	1
034	62004922	UNION IN STOCK	62004922 UNION (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE IN STOCK	$846.16	1
035	6237497	UNION	6237497 UNION (Valid for USA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE	$128.41	1
035	6237497	UNION	6237497 UNION (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) BOCCHETTONE	$128.41	1
036	6205360	GASKET IN STOCK	6205360 GASKET (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE IN STOCK	$98.53	1
036	6205360	GASKET IN STOCK	6205360 GASKET (Valid for USA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE IN STOCK	$98.53	1
037	9409215	GASKET	9409215 GASKET (Valid for USA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
037	9409215	GASKET	9409215 GASKET (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) GUARNIZIONE	$32.82 MSRP: ~~34.30~~ (4.3% off)	1
038	62006258	TANK CAP	62006258 TANK CAP (Valid for USA - July 1999) (Valid for cars with fast fuel intake) TAPPO SERBATOIO	-	1	Enquire
038	62006258	TANK CAP	62006258 TANK CAP (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TAPPO SERBATOIO	-	1	Enquire
039	66001581	CASE	66001581 CASE (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) SCATOLA	$109.81 MSRP: ~~111.00~~ (1.1% off)	1
039	66001581	CASE	66001581 CASE (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SCATOLA	$109.81 MSRP: ~~111.00~~ (1.1% off)	1
040	66001339	SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO	66001339 SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO (Valid for USA - July 1999) (Valid for cars with fast fuel intake) O	$237.58	1
040	66001339	SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO	66001339 SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) O	$237.58	1
041	8832205	STRAP	8832205 STRAP (Valid for USA - July 1999) (Valid for cars with fast fuel intake) FASCETTA	$20.67 MSRP: ~~21.50~~ (3.9% off)	1
041	8832205	STRAP	8832205 STRAP (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) FASCETTA	$20.67 MSRP: ~~21.50~~ (3.9% off)	1
042	9490516	PIPE	9490516 PIPE (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TUBO	$13.28 MSRP: ~~13.45~~ (1.3% off)	1
042	9490516	PIPE	9490516 PIPE (Valid for USA - July 1999) (Valid for cars with fast fuel intake) TUBO	$13.28 MSRP: ~~13.45~~ (1.3% off)	1
043	8740685	SCREW IN STOCK	8740685 SCREW (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) VITE IN STOCK	$21.42	3
043	8740685	SCREW IN STOCK	8740685 SCREW (Valid for USA - July 1999) (Valid for cars with fast fuel intake) VITE IN STOCK	$21.42	3
044	8834501	STRAP	8834501 STRAP (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) FASCETTA	-	2	Enquire
044	8834501	STRAP	8834501 STRAP (Valid for USA - July 1999) (Valid for cars with fast fuel intake) FASCETTA	-	2	Enquire
045	6237500	PIPE	6237500 PIPE (Valid for USA - July 1999) (Valid for cars with fast fuel intake) TUBO	$400.75	1
045	6237500	PIPE	6237500 PIPE (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) TUBO	$400.75	1
046	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT (Valid for USA - July 1999) (Valid for cars with fast fuel intake) DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
046	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT (Valid for CANADA - July 1999) (Valid for cars with fast fuel intake) DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	6
