Fuel System (for Cars With Fast Fuel Insertion) 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

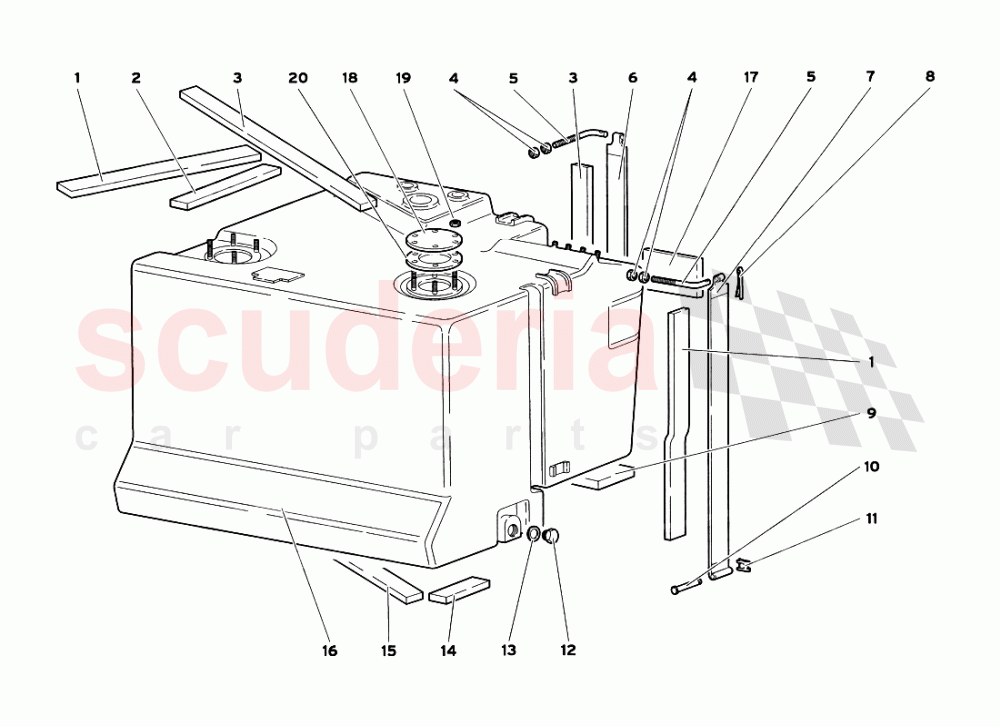

Lamborghini Diablo SV (1999) - Fuel System (for Cars With Fast Fuel Insertion) 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6231704	GASKET	6231704 GASKET (Valid for cars with fast fuel intake) PROTEZIONE	-	2	Enquire
002	6237956	SHIELD	6237956 SHIELD (Valid for cars with fast fuel intake) PROTEZIONE	-	1	Enquire
003	410201644	PROTECTION	410201644 PROTECTION (Valid for cars with fast fuel intake) PROTEZIONE	-	2	Enquire
004	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT (Valid for cars with fast fuel intake) DADO	-	4	Enquire
005	6226884	TIE ROD	6226884 TIE ROD (Valid for cars with fast fuel intake) TIRANTE	-	2	Enquire
006	6237360	STRAP	6237360 STRAP (Valid for cars with fast fuel intake) FASCETTA	-	1	Enquire
007	6229506	STRAP	6229506 STRAP (Valid for cars with fast fuel intake) FASCETTA	-	1	Enquire
008	8820304	SPLIT PIN	8820304 SPLIT PIN (Valid for cars with fast fuel intake) COPIGLIA	-	2	Enquire
009	6231701	GASKET	6231701 GASKET (Valid for cars with fast fuel intake) PROTEZIONE	-	2	Enquire
010	6233763	JOURNAL	6233763 JOURNAL (Valid for cars with fast fuel intake) PERNO	-	2	Enquire
011	8580604	CLIP	8580604 CLIP (Valid for cars with fast fuel intake) MOLLETTA	-	2	Enquire
012	8931203	PLUG	8931203 PLUG (Valid for cars with fast fuel intake) TAPPO	-	1	Enquire
013	WHT003362	WASHER	WHT003362 WASHER (Valid for cars with fast fuel intake) RONDELLA	-	1	Enquire
014	6231706	GASKET	6231706 GASKET (Valid for cars with fast fuel intake) PROTEZIONE	-	1	Enquire
015	6231702	GASKET	6231702 GASKET (Valid for cars with fast fuel intake) PROTEZIONE	-	1	Enquire
016	62004580	FUEL TANK	62004580 FUEL TANK (Valid for cars with fast fuel intake) SERBATOIO BENZINA	-	1	Enquire
017	6237368	SHIELD	6237368 SHIELD (Valid for cars with fast fuel intake) PROTEZIONE	-	1	Enquire
018	62004582	PLUG	62004582 PLUG (Valid for cars with fast fuel intake) TAPPO	-	1	Enquire
019	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT (Valid for cars with fast fuel intake) DADO	-	6	Enquire
020	6205360	GASKET	6205360 GASKET (Valid for cars with fast fuel intake) GUARNIZIONE	-	1	Enquire
