Fuel System (for Cars Without Fast Fuel Insertion)

Find Your Part

Lamborghini Diablo SV (1999) - Fuel System (for Cars Without Fast Fuel Insertion)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

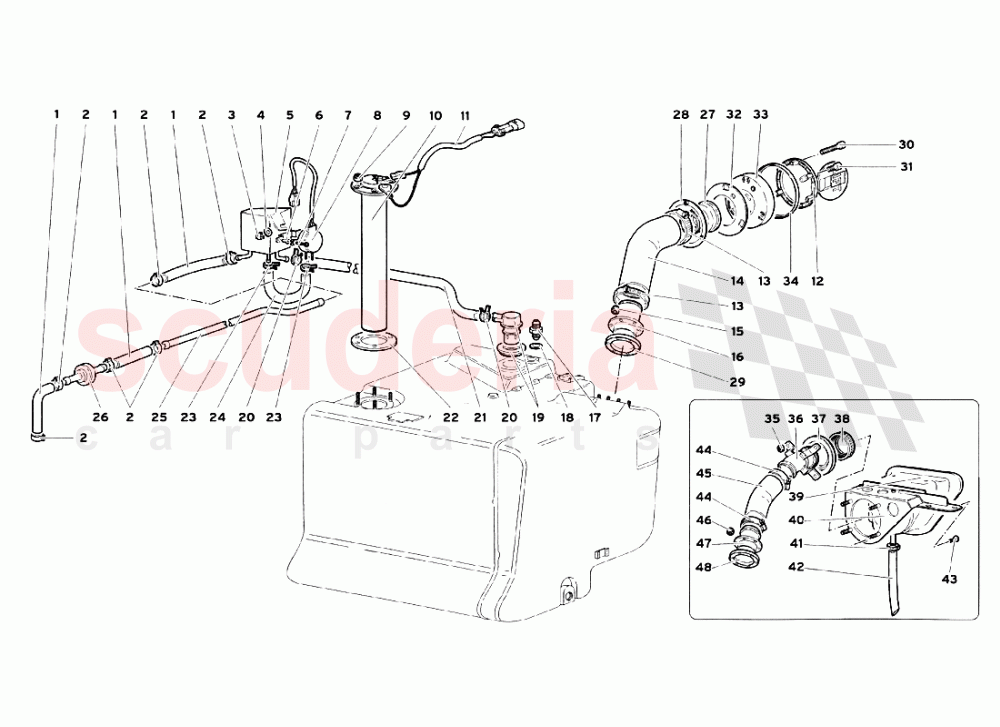

Fuel System (for Cars Without Fast Fuel Insertion) of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 62001398
PIPE
(Valid for cars without fast fuel intake) TUBO 		$13.40 3
002 8831528
CLAMP
(Valid for cars without fast fuel intake) FASCETTA 		$9.27 6
003 N01118312
HEXAGON NUT, SELF-LOCKING
(Valid for cars without fast fuel intake) DADO 		$2.04 1
004 N01152427
WASHER
(Valid for cars without fast fuel intake) RONDELLA 		$0.28 1
005 62001351
SEGREGATOR
(Valid for cars without fast fuel intake) SEPARATORE VAPORI BENZ. 		$320.62 (25.6% off) 1
006 62001396
RUBBER BUSHING
(Valid for cars without fast fuel intake) BOCCOLA COMMA 		$2.05 (2.4% off) 2
007 8700346
SCREW
(Valid for cars without fast fuel intake) VITE 		$0.09 (98.8% off) 2
008 400906206
EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR
(Valid for cars without fast fuel intake) E 		$2,634.41 1
009 N0211963
NUT
(Valid for cars without fast fuel intake) DADO 		$0.76 5
010 6229648
LEVEL GAUGE
(Valid for cars without fast fuel intake) INDICATORE LIVELLO CARBUR. 		$343.67 (48.4% off) 1
011 6135126
ELECT CABLE
(Valid for cars without fast fuel intake) CABLAGGIO GALLEGGIANTE 		$9.61 (1.4% off) 1
012 9490521
TANK CAP
(Valid for cars without fast fuel intake) TAPPO SERBATOIO 		$248.77 1
013 8834501
STRAP
(Valid for cars without fast fuel intake) FASCETTA 		- 2 Enquire
014 6235263
PIPE
(Valid for cars without fast fuel intake) TUBO 		$311.40 1
015 WHT002959
CLAMPING NUT
(Valid for cars without fast fuel intake) DADO 		$0.82 (88.7% off) 6
016 6235861
UNION
(Valid for cars without fast fuel intake) BOCCHETTONE 		$134.61 1
017 62001267
CONNECTION
(Valid for cars without fast fuel intake) RACCORDO 		$33.82 (4.5% off) 1
018 8401425
WASHER
(Valid for cars without fast fuel intake) RONDELLA 		- 1 Enquire
019 62001272
ROLL OVER VALVE
(Valid for cars without fast fuel intake) VALVOLA ROLL OVER 		$338.73 (1.2% off) 1
020 8830131
CLAMP
(Valid for cars without fast fuel intake) FASCETTA 		$5.87 2
021 62001160
PIPE
(Valid for cars without fast fuel intake) TUBO 		$13.89 (3.9% off) 1
022 6229649
FUEL LEVEL GAUGE FLANGE SEAL
(Valid for cars without fast fuel intake) GUARNIZIONE 		$17.95 1
023 8830128
CLAMP
(Valid for cars without fast fuel intake) FASCETTA 		$0.46 2
024 62001397
PIPE
(Valid for cars without fast fuel intake) TUBO 		$5.82 (2.2% off) 1
025 6237081
PIPE
(Valid for cars without fast fuel intake) TUBO 		$44.74 1
026 62001313
VALVE
(Valid for cars without fast fuel intake) VALVOLA 		$31.84 1
027 9490531
REDUCER
(Valid for cars without fast fuel intake) (Valid for ARABIA - July 1999) RIDUZIONE 		- 1 Enquire
027 9490529
REDUCER
(Valid for cars without fast fuel intake) RIDUZIONE 		$115.40 1
027 9490531
REDUCER
(Valid for cars without fast fuel intake) (Valid for SOUTH AFRICA - July 1999) RIDUZIONE 		- 1 Enquire
027 9490531
REDUCER
(Valid for cars without fast fuel intake) (Valid for DUBAI - July 1999) RIDUZIONE 		- 1 Enquire
028 9490523
RING
(Valid for cars without fast fuel intake) ANELLO 		$17.89 1
029 6205360
GASKET
(Valid for cars without fast fuel intake) GUARNIZIONE 		$98.53 1
030 8740505
SCREW
(Valid for cars without fast fuel intake) VITE 		$0.34 3
031 8740512
DOWEL
(Valid for cars without fast fuel intake) GRAND 		$0.21 3
032 9490528
GASKET
(Valid for cars without fast fuel intake) GUARNIZIONE 		$3.67 1
033 9490526
PAN
(Valid for cars without fast fuel intake) VASCHETTA PER TAPPO BENZINA 		$34.37 1
034 9490527
GASKET
(Valid for cars without fast fuel intake) GUARNIZIONE 		$85.98 1
035 8200513
NUT
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) DADO 		$0.16 4
035 8200513
NUT
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) DADO 		$0.16 4
036 6237498
UNION
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$516.13 1
036 62001582
UNION
(Valid for ARABIA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$507.44 (1.1% off) 1
036 62001582
UNION
(Valid for SOUTH AFRICA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$507.44 (1.1% off) 1
036 6237498
UNION
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$516.13 1
036 62001582
UNION
(Valid for DUBAI - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$507.44 (1.1% off) 1
037 9409215
GASKET
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) GUARNIZIONE 		$32.82 (4.3% off) 1
037 9409215
GASKET
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) GUARNIZIONE 		$32.82 (4.3% off) 1
038 62006258
TANK CAP
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) TAPPO SERBATOIO 		- 1 Enquire
038 62006258
TANK CAP
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) TAPPO SERBATOIO 		- 1 Enquire
039 66001581
CASE
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) SCATOLA 		$109.81 (1.1% off) 1
039 66001581
CASE
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) SCATOLA 		$109.81 (1.1% off) 1
040 66001339
SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) O 		$237.58 1
040 66001339
SUPPORT - (Valid for USA - July 1999) (Valid for cars with fast fuel intake) SUPPORTO
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) O 		$237.58 1
041 8832205
STRAP
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) FASCETTA 		$20.67 (3.9% off) 1
041 8832205
STRAP
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) FASCETTA 		$20.67 (3.9% off) 1
042 9490516
PIPE
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) TUBO 		$13.28 (1.3% off) 1
042 9490516
PIPE
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) TUBO 		$13.28 (1.3% off) 1
043 8740685
SCREW
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) VITE 		$21.42 3
043 8740685
SCREW
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) VITE 		$21.42 3
044 8834501
STRAP
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) FASCETTA 		- 2 Enquire
044 8834501
STRAP
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) FASCETTA 		- 2 Enquire
045 6237500
PIPE
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) TUBO 		$400.75 1
045 6237500
PIPE
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) TUBO 		$400.75 1
046 WHT002959
CLAMPING NUT
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) DADO 		$0.82 (88.7% off) 6
046 WHT002959
CLAMPING NUT
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) DADO 		$0.82 (88.7% off) 6
047 6237497
UNION
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$128.41 1
047 6237497
UNION
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) BOCCHETTONE 		$128.41 1
048 6205360
GASKET
(Valid for USA - July 1999) (Valid for cars without fast fuel intake) GUARNIZIONE 		$98.53 1
048 6205360
GASKET
(Valid for CANADA - July 1999) (Valid for cars without fast fuel intake) GUARNIZIONE 		$98.53 1
