Fuel System (With Adapter Code 0062001647 See Table 62.02.00) (for Cars Without Fast Fuel Insertion) of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Fuel System (With Adapter Code 0062001647 See Table 62.02.00) (for Cars Without Fast Fuel Insertion)

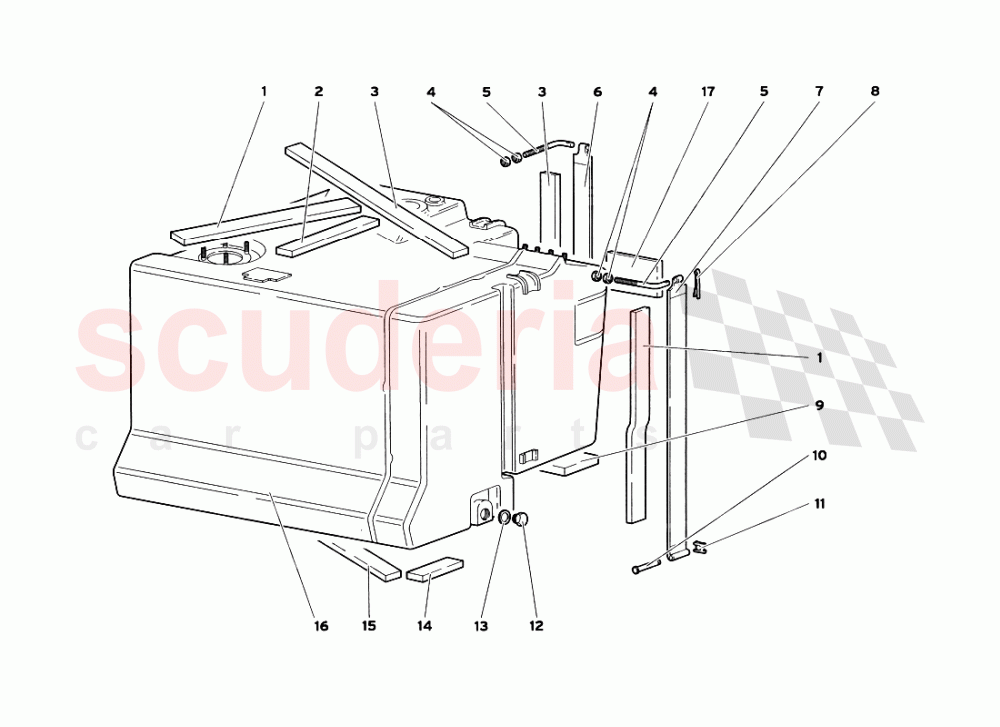

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	6231704	GASKET	6231704 GASKET (Valid for cars without fast fuel intake) PROTEZIONE	$73.32	1
002	6237956	SHIELD	6237956 SHIELD (Valid for cars without fast fuel intake) PROTEZIONE	-	1	Enquire
003	410201644	PROTECTION	410201644 PROTECTION (Valid for cars without fast fuel intake) PROTEZIONE	$17.47	2
004	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT (Valid for cars without fast fuel intake) DADO IN STOCK	$1.89	4
005	6226884	TIE ROD	6226884 TIE ROD (Valid for cars without fast fuel intake) TIRANTE	-	2	Enquire
006	6237360	STRAP	6237360 STRAP (Valid for cars without fast fuel intake) FASCETTA	$77.54	1
007	6229506	STRAP	6229506 STRAP (Valid for cars without fast fuel intake) FASCETTA	$39.13	1
008	8820304	SPLIT PIN	8820304 SPLIT PIN (Valid for cars without fast fuel intake) COPIGLIA	$1.74 MSRP: ~~7.09~~ (75.5% off)	2
009	6231701	GASKET	6231701 GASKET (Valid for cars without fast fuel intake) PROTEZIONE	$58.63	2
010	6233763	JOURNAL	6233763 JOURNAL (Valid for cars without fast fuel intake) PERNO	$11.22	2
011	8580604	CLIP	8580604 CLIP (Valid for cars without fast fuel intake) MOLLETTA	$2.26	2
012	8931203	PLUG	8931203 PLUG (Valid for cars without fast fuel intake) TAPPO	$27.29	1
013	WHT003362	WASHER	WHT003362 WASHER (Valid for cars without fast fuel intake) RONDELLA	$1.37 MSRP: ~~7.17~~ (80.9% off)	1
014	6231706	GASKET	6231706 GASKET (Valid for cars without fast fuel intake) PROTEZIONE	$36.68	1
015	6231702	GASKET	6231702 GASKET (Valid for cars without fast fuel intake) PROTEZIONE	$4.90 MSRP: ~~5.00~~ (2% off)	1
016	62001895	FUEL TANK	62001895 FUEL TANK (Valid for cars without fast fuel intake) (With adaptor code 0062001647) SERBATOIO BENZINA	$3,857.53	1
016	62001156	FUEL TANK	62001156 FUEL TANK (Valid for cars without fast fuel intake) SERBATOIO BENZINA	$3,275.45	1
017	6237368	SHIELD	6237368 SHIELD (Valid for cars without fast fuel intake) PROTEZIONE	$19.36	1
