Pedals of Lamborghini Lamborghini Diablo SV (1998)

View All

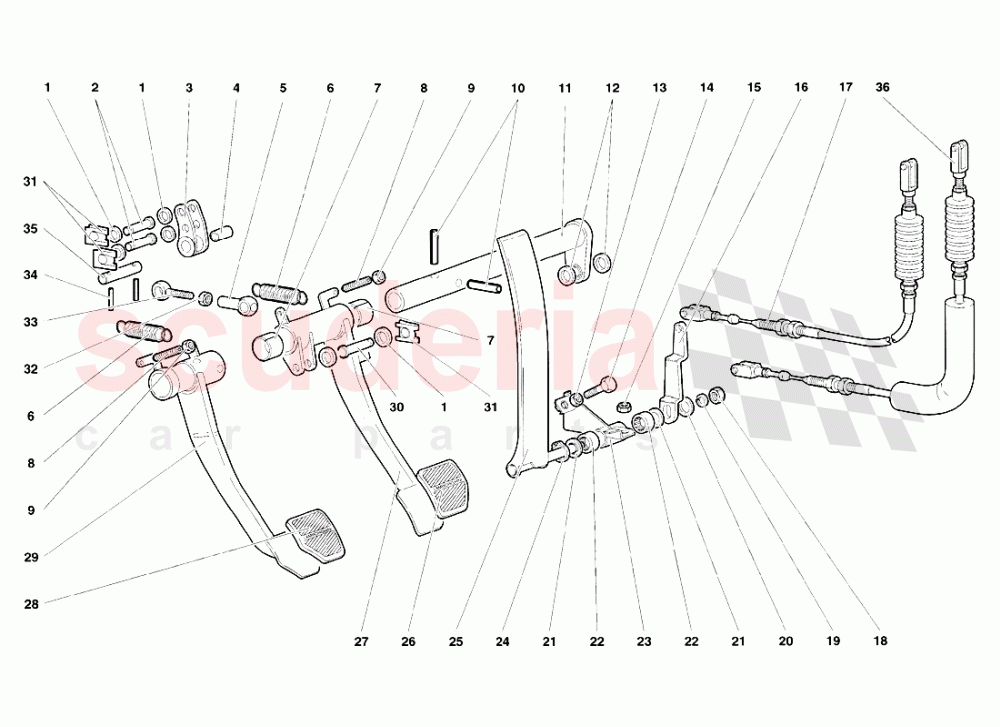

Lamborghini Diablo SV (1998) - Pedals

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401006	WASHER	8401006 WASHER RONDELLA	$0.61 MSRP: ~~7.29~~ (91.6% off)	6
002	4232621	PIN	4232621 PIN PERNO	$37.65 MSRP: ~~39.30~~ (4.2% off)	2
003	4225060	ROCKER	4225060 ROCKER LEVA	$75.31 MSRP: ~~78.60~~ (4.2% off)	1
004	8801209	BUSHING	8801209 BUSHING BOCCOLA	$9.55 MSRP: ~~9.90~~ (3.5% off)	1
005	4225061	COUPLING	4225061 COUPLING TESTAASNODO	$68.25 MSRP: ~~71.40~~ (4.4% off)	1
006	1321270	SPRING IN STOCK	1321270 SPRING MOLLA IN STOCK	$8.66	2
007	8802501	BUSHING	8802501 BUSHING BOCCOLA	$21.91 MSRP: ~~22.90~~ (4.3% off)	2
008	4210834	ADJUSTING SLEEVE	4210834 ADJUSTING SLEEVE TESTA REGISTRO	$4.55 MSRP: ~~4.70~~ (3.2% off)	2
009	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	2
010	8900803	PIN	8900803 PIN SA	$0.95 MSRP: ~~7.19~~ (86.8% off)	2
011	4225064	SHAFT	4225064 SHAFT ALBERO	-	1	Enquire
012	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.58 MSRP: ~~7.29~~ (92% off)	2
013	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	1
014	N0147519	SCREW M8X50	N0147519 SCREW M8X50 VITE	$12.84	1
015	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
016	4238042	LEVER	4238042 LEVER LEVA	$34.07 MSRP: ~~35.60~~ (4.3% off)	1
017	4230089	GAS CABLE	4230089 GAS CABLE TIRANTE ACCELERATORE	$1,146.41	1
018	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	1
019	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
020	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	1
021	8401220	WASHER	8401220 WASHER RONDELLA	$5.99 MSRP: ~~6.15~~ (2.6% off)	2
022	8521205	BEARING	8521205 BEARING CUSCINETTO	$11.04 MSRP: ~~11.45~~ (3.6% off)	2
023	4231811	SUPPORT - SUPPORTO	4231811 SUPPORT - SUPPORTO O	$251.24 MSRP: ~~262.00~~ (4.1% off)	1
024	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.82 MSRP: ~~6.00~~ (3% off)	1
025	4230143	GAS PEDAL	4230143 GAS PEDAL PEDALE ACCELERATORE	$547.15 MSRP: ~~571.00~~ (4.2% off)	1
026	4228351	PEDAL PAD	4228351 PEDAL PAD COPRIPEDALE GOMMA	$74.41	1
027	42001105	BRAKE PEDAL	42001105 BRAKE PEDAL PEDALE FRENO	$390.81 MSRP: ~~408.00~~ (4.2% off)	1
028	4228349	PEDAL PAD	4228349 PEDAL PAD COPRIPEDALE GOMMA	$47.19	1
029	4235355	CLUTCH PEDAL	4235355 CLUTCH PEDAL PEDALE FRIZIONE	$390.81 MSRP: ~~408.00~~ (4.2% off)	1
030	4232622	PIN	4232622 PIN PERNO	$26.58	1
031	8581004	CLIP	8581004 CLIP MOLLETTA	$9.38 MSRP: ~~9.70~~ (3.3% off)	3
032	N10155210	NUT	N10155210 NUT DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	1
033	4225062	TIE ROD	4225062 TIE ROD TIRANTE	$65.51 MSRP: ~~68.50~~ (4.4% off)	1
034	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.27 MSRP: ~~7.35~~ (96.3% off)	2
035	4225074	PIN	4225074 PIN PERNO	-	1	Enquire
036	4236013	TIE ROD	4236013 TIE ROD (Valid for USA - November 1998) TIRANTE ACCELERATORE	$155.71 MSRP: ~~161.50~~ (3.6% off)	1
036	4236013	TIE ROD	4236013 TIE ROD (Valid for CANADA - November 1998) TIRANTE ACCELERATORE	$155.71 MSRP: ~~161.50~~ (3.6% off)	1
