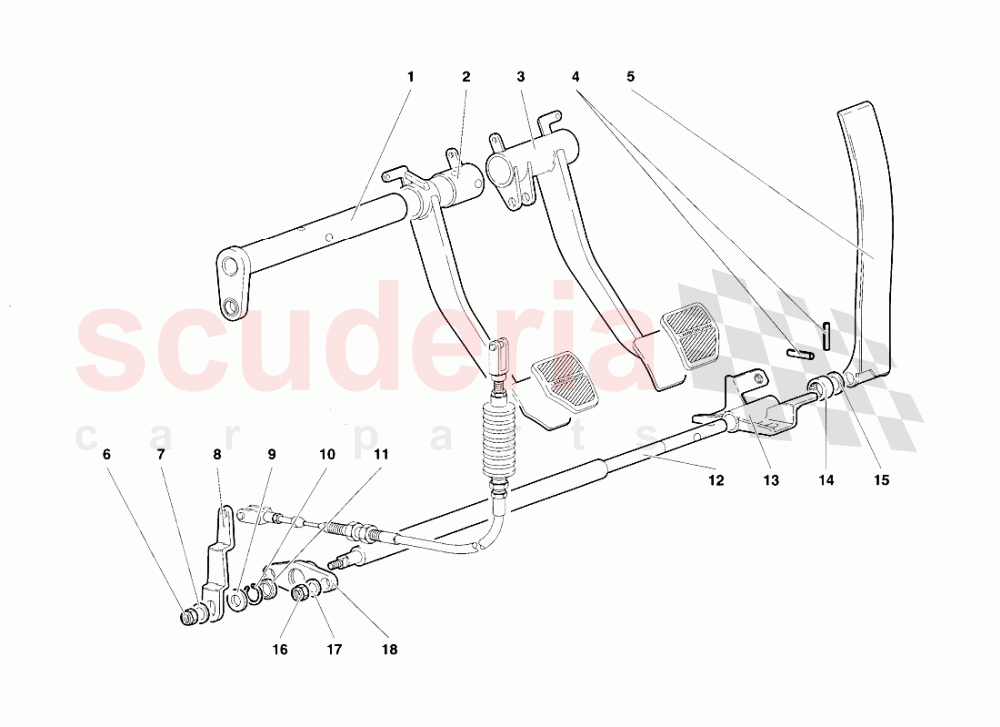

Lamborghini Diablo SV (1998) - Pedals (Valid for GB - November 1998)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4229950	SHAFT	4229950 SHAFT (Valid for GB - November 1998) ALBERO	-	1	Enquire
002	4235589	PEDAL - (Valid for GB and AUSTRALIA - July 1999) PEDALE FRIZIONE	4235589 PEDAL - (Valid for GB and AUSTRALIA - July 1999) PEDALE FRIZIONE (Valid for GB - November 1998) E FRIZIONE	-	1	Enquire
003	4232778	PEDAL - (Valid for R.H.D. version - April 1994) PEDALE FRENO	4232778 PEDAL - (Valid for R.H.D. version - April 1994) PEDALE FRENO (Valid for GB - November 1998) E FRENO	-	1	Enquire
004	8900401	PIN	8900401 PIN (Valid for GB - November 1998) SA	-	2	Enquire
005	4232294	PEDAL - (Valid for R.H.D. version - April 1994) PEDALE ACCELERATORE	4232294 PEDAL - (Valid for R.H.D. version - April 1994) PEDALE ACCELERATORE (Valid for GB - November 1998) E ACCELERATORE	-	1	Enquire
006	8200804	NUT M8	8200804 NUT M8 (Valid for GB - November 1998) DADO	-	1	Enquire
007	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 (Valid for GB - November 1998) RONDELLA	-	1	Enquire
008	4238042	LEVER	4238042 LEVER (Valid for GB - November 1998) LEVA	-	1	Enquire
009	4232286	SPACER	4232286 SPACER (Valid for GB - November 1998) DISTANZIALE	-	1	Enquire
010	8572202	RETAINER RING	8572202 RETAINER RING (Valid for GB - November 1998) ANELLO RITEGNO	-	1	Enquire
011	4232299	JOINT	4232299 JOINT (Valid for GB - November 1998) SNODO	-	1	Enquire
012	4232298	SHAFT	4232298 SHAFT (Valid for GB - November 1998) ALBERO	-	1	Enquire
013	4232827	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	4232827 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for GB - November 1998) O	-	1	Enquire
014	8521206	BEARING	8521206 BEARING (Valid for GB - November 1998) CUSCINETTO	-	1	Enquire
015	8401215	WASHER	8401215 WASHER (Valid for GB - November 1998) RONDELLA	-	1	Enquire
016	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING (Valid for GB - November 1998) DADO	-	2	Enquire
017	8400606	WASHER	8400606 WASHER (Valid for GB - November 1998) RONDELLA	-	2	Enquire
018	4232257	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	4232257 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for GB - November 1998) O	-	1	Enquire
