Gearbox Control Tower of Lamborghini Lamborghini Diablo SV (1998)

View All

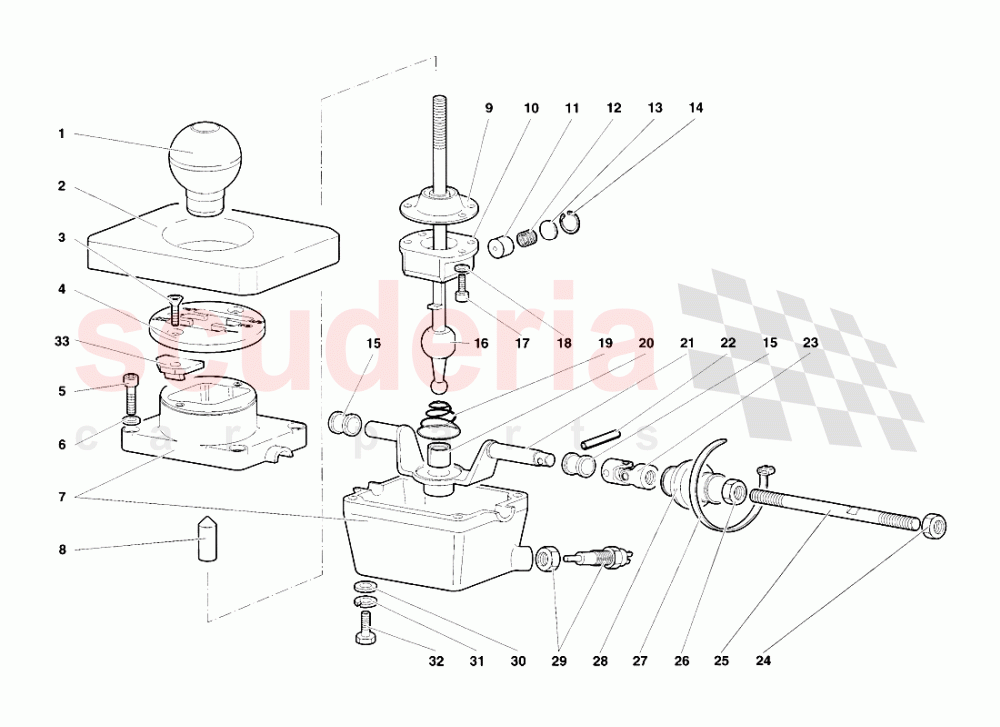

Lamborghini Diablo SV (1998) - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2437668	KNOB	2437668 KNOB POMELLO	-	1	Enquire
002	2431785	FLEX PAD	2431785 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
003	8700681	SCREW	8700681 SCREW VITE	-	2	Enquire
004	2433903	PLATE	2433903 PLATE PIASTRA Dl SELEZIONE	-	1	Enquire
005	8700804	SCREW	8700804 SCREW VITE	-	4	Enquire
006	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	4	Enquire
007	240132003	CASE	240132003 CASE SCATOLA LAVORATA	-	1	Enquire
008	2437767	ADAPTER KNOB	2437767 ADAPTER KNOB ADATTATORE POMELLO	-	1	Enquire
009	2433043	BOOT	2433043 BOOT CUFFIA	-	1	Enquire
010	2434091	BALL SOCKFT	2434091 BALL SOCKFT SEDE SFERICA	-	1	Enquire
011	2427202	CYLINDER	2427202 CYLINDER CILINDRO	-	1	Enquire
012	2432167	SPRING	2432167 SPRING MOLLA	-	1	Enquire
013	2427204	PLUG	2427204 PLUG PIASTRINA	-	1	Enquire
014	8572201	RETAINER RING	8572201 RETAINER RING ANELLO RITEGNO	-	1	Enquire
015	2433020	BUSHING	2433020 BUSHING BOCCOLA	-	2	Enquire
016	2437666	LEVER	2437666 LEVER LEVA	-	1	Enquire
017	8700644	SCREW	8700644 SCREW VITE	-	4	Enquire
018	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
019	2429160	SPRING	2429160 SPRING MOLLA	-	1	Enquire
020	2427207	BUSHING	2427207 BUSHING BOCCOLA	-	1	Enquire
021	2429161	SHAFT	2429161 SHAFT ALBERO	-	1	Enquire
022	8900305	PIN - SPINA	8900305 PIN - SPINA SA	-	1	Enquire
023	410711615	RH JOINT	410711615 RH JOINT SNODO DX	-	1	Enquire
024	8201224	NUT	8201224 NUT DADO SX	-	1	Enquire
025	2434472	TIE ROD	2434472 TIE ROD TIRANTE	-	1	Enquire
026	8201223	NUT	8201223 NUT DADO DX	-	1	Enquire
027	8830305	CLAMP	8830305 CLAMP FASCETTA	-	2	Enquire
028	2434614	BOOT	2434614 BOOT CUFFIA	-	1	Enquire
029	2408637	SWITCH	2408637 SWITCH INTERRUTTORE RETROMARCIA	-	1	Enquire
030	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
031	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
032	8100827	SCREW M8X25	8100827 SCREW M8X25 VITE	-	4	Enquire
033	2433904	PLATE (REVERSE)	2433904 PLATE (REVERSE) PIASTRINO PER RETROMARCIA	-	1	Enquire
