Pedal Mounting of Lamborghini Lamborghini Diablo SV (1998)

View All

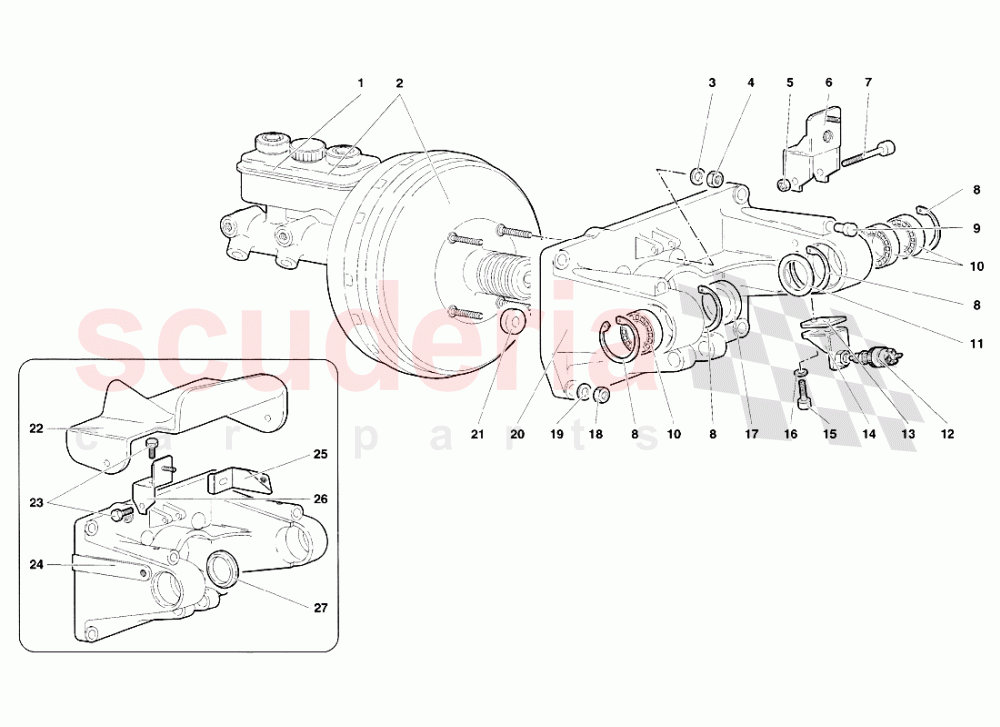

Lamborghini Diablo SV (1998) - Pedal Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4236817	BRAKE-SERVO RESER.	4236817 BRAKE-SERVO RESER. SERBATOIO SERVOFRENO	$238.85	1
002	42001085	BRAKE-SERVO	42001085 BRAKE-SERVO SERVOFRENO	$440.45	1
003	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
004	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
005	N01152427	WASHER IN STOCK	N01152427 WASHER DADO IN STOCK	$0.28	2
006	4231515	SUPPORT - SUPPORTO	4231515 SUPPORT - SUPPORTO O	$42.06	1
007	8700644	SCREW	8700644 SCREW VITE	$0.37 MSRP: ~~7.34~~ (95% off)	2
008	8573701	RETAINING RING	8573701 RETAINING RING ANELLO RITEGNO	$0.64 MSRP: ~~7.26~~ (91.2% off)	4
009	410721381	STOP	410721381 STOP	$84.95	2
010	8502513	BEARING	8502513 BEARING CUSCINETTO	$36.55 MSRP: ~~38.20~~ (4.3% off)	3
011	8402507	WASHER	8402507 WASHER RONDELLA	$27.99 MSRP: ~~29.15~~ (4% off)	1
012	42001192	ABS SWITCH	42001192 ABS SWITCH INTERRUTTOREABS	$24.20 MSRP: ~~25.25~~ (4.2% off)	1
013	42001530	SPACER	42001530 SPACER DISTANZIALE	-	1	Enquire
014	42001489	SUPPORT - SUPPORTO	42001489 SUPPORT - SUPPORTO O	$32.08 MSRP: ~~33.55~~ (4.4% off)	1
015	8700644	SCREW	8700644 SCREW VITE	$0.37 MSRP: ~~7.34~~ (95% off)	2
016	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
017	4230923	SPACER	4230923 SPACER DISTANZIALE	$28.54 MSRP: ~~29.85~~ (4.4% off)	1
018	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
019	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
020	4233483	PEDALS SUPPORT	4233483 PEDALS SUPPORT SUPPORTO PEDALIERA	$828.79 MSRP: ~~867.00~~ (4.4% off)	1
021	42000931	SPACER	42000931 SPACER DISTANZIALE	$35.51 MSRP: ~~37.05~~ (4.2% off)	4
022	4332774	SHIELD	4332774 SHIELD (Valid for GB - November 1998) PROTEZIONE	-	1	Enquire
023	8700644	SCREW	8700644 SCREW (Valid for GB - November 1998) VITE	$0.37 MSRP: ~~7.34~~ (95% off)	2
024	4233485	PEDALS SUPPORT	4233485 PEDALS SUPPORT (Valid for GB - November 1998) SUPPORTO PEDALIERA	$1,120.37 MSRP: ~~1,175.00~~ (4.6% off)	1
025	4234610	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	4234610 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for GB - November 1998) O	-	1	Enquire
026	4232996	PLATE	4232996 PLATE (Valid for GB - November 1998) PIASTRINA	$45.54 MSRP: ~~47.55~~ (4.2% off)	1
027	4232777	SPACER	4232777 SPACER (Valid for GB - November 1998) DISTANZIALE	-	1	Enquire
