Crankase of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

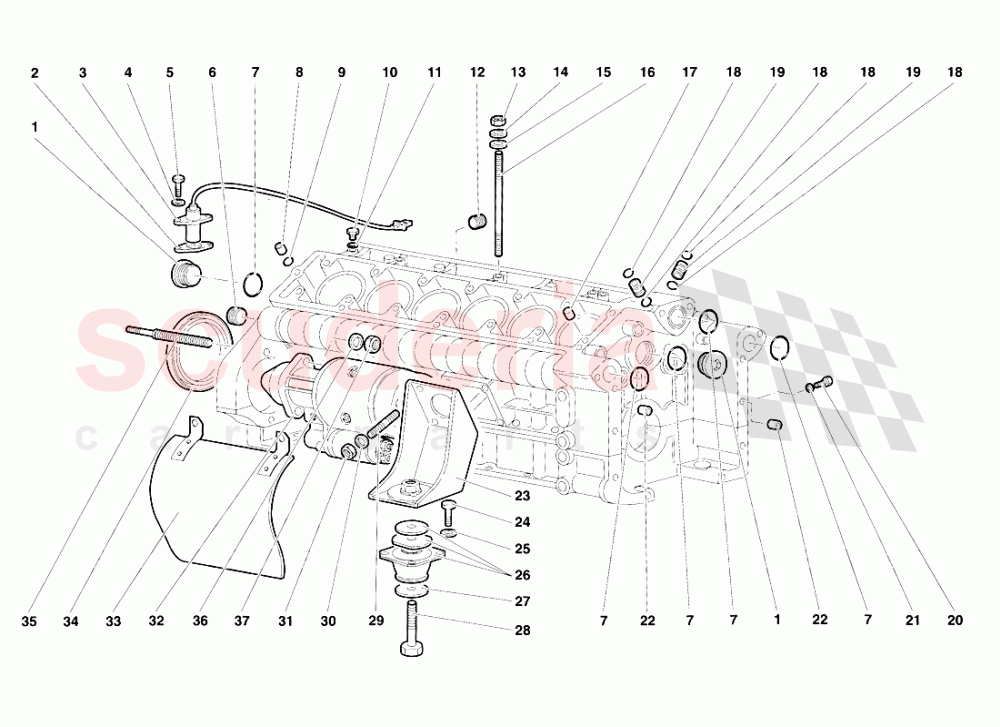

Lamborghini Diablo SV (1995-1997) - Crankase

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1830023	PLUG	1830023 PLUG TAPPO	-	2	Enquire
002	1628602	SPACER	1628602 SPACER SPESSORE Dl REGISTRO 0,4 MM	-	1	Enquire
002	7M103899	0.2 mm ADJUSTMENT SHIM	7M103899 0.2 mm ADJUSTMENT SHIM SPESSORE Dl REGISTRO 0,2 MM	$5.51	1
003	7M905381	FLYWHEEL TIMING SENSOR	7M905381 FLYWHEEL TIMING SENSOR	$700.59	1
004	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
005	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	2
006	8933503	PLUG	8933503 PLUG TAPPO	-	2	Enquire
007	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLO TENUTA IN STOCK	$4.16	5
008	1832161	DOWEL	1832161 DOWEL GRAND	$387.11	2
009	WHT003059	SEAL RING IN STOCK	WHT003059 SEAL RING ANELLO TENUTA IN STOCK	$155.91	2
010	8101402	PLUG	8101402 PLUG TAPPO	$28.97 MSRP: ~~30.25~~ (4.2% off)	1
011	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
012	8931209	PLUG	8931209 PLUG TAPPO	-	1	Enquire
013	8200806	NUT	8200806 NUT DADO	$0.36 MSRP: ~~7.33~~ (95.1% off)	3
014	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	3
015	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	2
016	8300891	STUD	8300891 STUD PRIGIONIERO	$15.02 MSRP: ~~15.65~~ (4% off)	3
017	8850821	DOWEL	8850821 DOWEL GRAND	-	2	Enquire
018	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.23 MSRP: ~~7.29~~ (69.4% off)	4
019	1833995	DOWEL	1833995 DOWEL GRAND	$34.75	2
020	8100620	Bolt	8100620 Bolt VITE	$5.82 MSRP: ~~6.00~~ (3% off)	1
021	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	1
022	8851304	DOWEL	8851304 DOWEL GRAND	$63.04 MSRP: ~~65.90~~ (4.3% off)	2
023	1835941	SUPPORT - SUPPORTO	1835941 SUPPORT - SUPPORTO O	$311.40 MSRP: ~~315.00~~ (1.1% off)	2
024	8101031	SCREW	8101031 SCREW VITE	$0.92 MSRP: ~~7.24~~ (87.3% off)	8
025	8411014	WASHER	8411014 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	8
026	400199703A	Flexible Support IN STOCK	400199703A Flexible Support SUPPORTO ELASTICO IN STOCK	$438.71	2
027	N91089301	WASHER	N91089301 WASHER RONDELLA	$131.04	2
028	4131471	SCREW	4131471 SCREW VITE	$33.70 MSRP: ~~35.25~~ (4.4% off)	2
029	8300814	STUD BOLT	8300814 STUD BOLT PRIGIONIERO	$6.58 MSRP: ~~6.85~~ (3.9% off)	8
030	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	8
031	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	8
032	7M911023	STARTER	7M911023 STARTER	$6,512.08	1
033	1635959	SHIELD	1635959 SHIELD PROTEZIONE	$1,309.96	1
034	7M103089	SEAL RING IN STOCK	7M103089 SEAL RING IN STOCK	$230.47	1
035	8301240	STUD	8301240 STUD PRIGIONIERO	$42.45	2
036	8411213	WASHER	8411213 WASHER RONDELLA	$2.05 MSRP: ~~2.10~~ (2.4% off)	2
037	1832869	NUT	1832869 NUT DADO	-	2	Enquire
