Lamborghini Diablo SV (1995-1997) - Crankgears

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

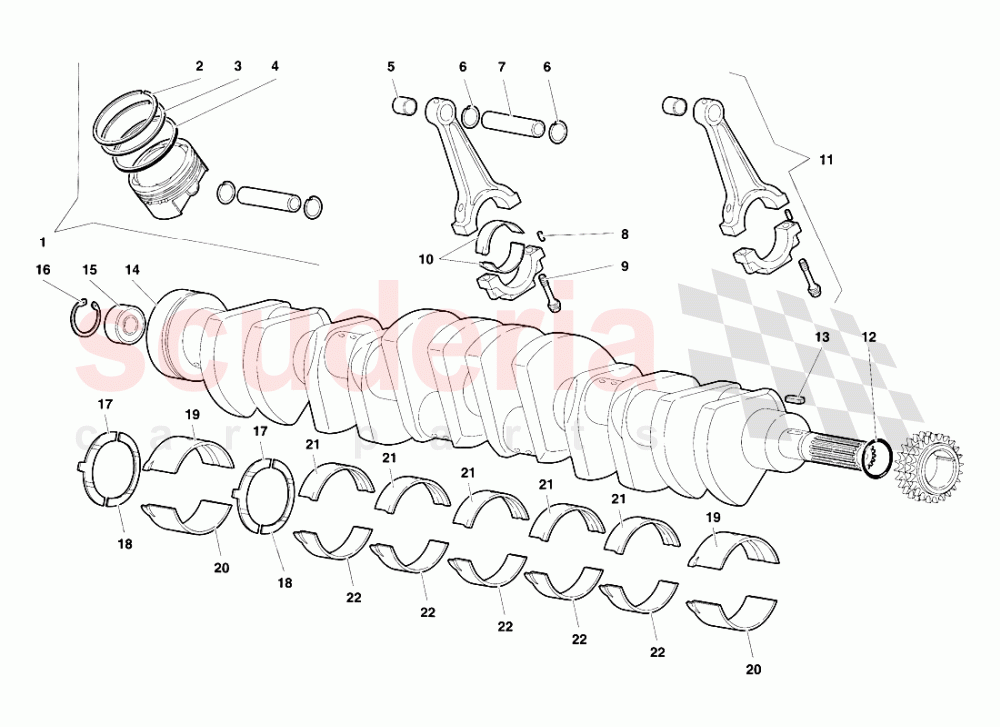

Crankgears of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1434827
PISTON - PISTONE COMPLETO
E COMPLETO 		$431.76 12
002 7M107311
PISTON RING
SEGMENTO
IN STOCK 		$340.06 12
003 7M107313
PISTON RING
SEGMENTO
IN STOCK 		$340.06 12
004 7M107321
PISTON RING
SEGMENTO
IN STOCK 		$895.17 12
005 1430768
BUSHING
BOCCOLA 		$55.48 12
006 1430537
RETAINER RING
ANELLO RITEGNO 		$1.17 (83.7% off) 24
007 1430536
PISTON PIN
SPINOTTO 		$419.78 12
008 8900308
DOWEL
GRANO 		- 24 Enquire
009 1422563
CON. ROD BOLT
BULLONE PER BIELLA 		$81.63 24
010 7M105701
Brass
BRONZINA
IN STOCK 		$97.42 24
011 1429577
CON ROD ASSY 		$715.90 12
012 WHT003062
SEAL RING
ANELLO TENUTA
IN STOCK 		$6.61 1
013 8860506
KEY
CHIAVETTA 		- 1 Enquire
014 423400400
CRANKSHAFT
ALBERO MOTORE LAVORATO 		$8,126.53 1
015 410109264
BEARING
CUSCINETTO
IN STOCK 		$29.09 1
016 7M109381
RETAINING RING
ANELLO RITEGNO
IN STOCK 		$1.68 (76.5% off) 1
017 7M105531A
AXIAL HALF BEARING
SEMICUSCINETTO ASSIALE
IN STOCK 		$40.34 2
018 7M105532
THRUST WASHER (PRICE EACH)
use:2x 07M105531A & 2x 07M105532 		$324.59 2
019 7M105707
HALF BEARING
SEMICUSCINETTO
IN STOCK 		$494.63 2
020 7M105707A
HALF BEARING
SEMICUSCINETTO 		$106.33 2
021 7M105707B
HALF BEARING
SEMICUSCINETTO 		$252.69 5
022 7M105707C
HALF BEARING
SEMICUSCINETTO 		$103.63 5
