Left Cylinder Head

Lamborghini Diablo SV (1995-1997)

Find Your Part

Lamborghini Diablo SV (1995-1997) - Left Cylinder Head

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

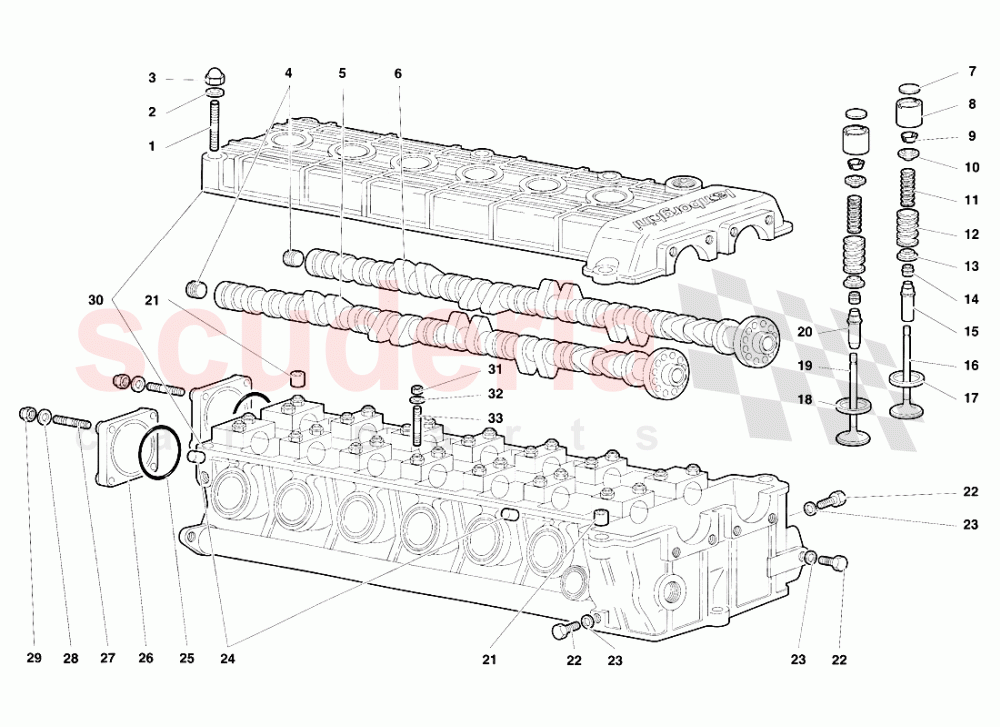

Left Cylinder Head of Lamborghini Lamborghini Diablo SV (1995-1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8300649
STUD BOLT
PRIGIONIERO 		$9.49 (3.7% off) 1
002 8410602
WASHER
RONDELLA
IN STOCK 		$44.87 1
003 8200605
NUT
DADO
IN STOCK 		$3.06 1
004 8931409
PLUG
TAPPO 		$12.36 (3.8% off) 2
005 1232710
CAMSHAFT
ASSE A CAMME ASP. TESTA SX 		$1,656.33 1
006 1232711
CAMSHAFT
ASSE A CAMME SCARICO TESTA SX 		$11,048.36 1
007 1220901
SHIM
SPESSORE Dl REGISTRO 		- 24 Enquire
007 1220887
SHIM
SPESSORE Dl REGISTRO 3.75 MM 		- 24 Enquire
007 1220881
SHIM
SPESSORE Dl REGISTRO 3.45 MM 		- 24 Enquire
007 1220885
SHIM
SPESSORE Dl REGISTRO 3.65 MM 		- 24 Enquire
007 1220886
SHIM
SPESSORE Dl REGISTRO 3.70 MM 		- 24 Enquire
007 1220884
SHIM
SPESSORE Dl REGISTRO 3.60 MM 		- 24 Enquire
007 1220903
SHIM
SPESSORE Dl REGISTRO 4.55 MM 		- 24 Enquire
007 1220880
SHIM
SPESSORE Dl REGISTRO 3.40 MM 		- 24 Enquire
007 1220879
SHIM
SPESSORE Dl REGISTRO 3.35 MM 		- 24 Enquire
007 1220906
SHIM
SPESSORE Dl REGISTRO 4.70 MM 		- 24 Enquire
007 1220895
SHIM
SPESSORE Dl REGISTRO 4.15 MM 		- 24 Enquire
007 1220904
SHIM
SPESSORE Dl REGISTRO 4.60 MM 		- 24 Enquire
007 1220883
SHIM
SPESSORE Dl REGISTRO 3.55 MM 		- 24 Enquire
007 1220882
SHIM
SPESSORE Dl REGISTRO 3.50 MM 		- 24 Enquire
007 1220897
SHIM
SPESSORE Dl REGISTRO 4.25 MM 		- 24 Enquire
007 1220877
SHIM
SPESSORE Dl REGISTRO 3.25 MM 		- 24 Enquire
007 1220900
SHIM
SPESSORE Dl REGISTRO 4.40 MM 		- 24 Enquire
007 1220905
SHIM
SPESSORE Dl REGISTRO 4.65 MM 		- 24 Enquire
007 7M109320L
3.80 MM ADJUSTMENT SHIM
SPESSORE Dl REGISTRO 3.80 MM 		$55.72 24
007 1220902
SHIM
SPESSORE Dl REGISTRO 4.50 MM 		- 24 Enquire
007 1220878
SHIM
SPESSORE Dl REGISTRO 3.30 MM 		- 24 Enquire
007 7M109320N
3.90 MM ADJUSTMENT SHIM
SPESSORE Dl REGISTRO 3.90 MM 		$55.72 24
007 1220898
SHIM
SPESSORE Dl REGISTRO 4.30 MM 		- 24 Enquire
007 7M109320M
3.85 MM ADJUSTMENT SHIM
SPESSORE Dl REGISTRO 3.85 MM 		$11.22 24
007 1220896
SHIM
SPESSORE Dl REGISTRO 4.20 MM 		- 24 Enquire
007 1220899
SHIM
SPESSORE Dl REGISTRO 4.35 MM 		- 24 Enquire
007 1220892
Valve shims
4.00 MM 		- 24 Enquire
007 1220891
SHIM
SPESSORE Dl REGISTRO 3.95 MM 		- 24 Enquire
007 1220893
SHIM
SPESSORE Dl REGISTRO 4.05 MM 		- 24 Enquire
007 7M109320S
4.10 MM ADJUSTMENT SHIM
SPESSORE Dl REGISTRO 4.05 MM 		$55.72 24
008 7M109309
VALVE CONTROL TAPPET
PUNTERIA 		$36.70 24
009 1235955
TAPPET LOCK CONE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (TRW) 		- 48 Enquire
009 1220843
TAPPET LOCK CONE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (EATON) 		$7.62 48
010 7M109641
TAPPET UPPER PLATE 		$19.09 24
011 7M109633A
INNER SPRING
MOLLA INTERNA 		$6.20 24
012 7M109623A
OUTER SPRING
MOLLA ESTERNA 		$19.15 24
013 1220993
TAPPET PLATE
PIATTELLO PUNTERIA INFERIORE 		- 24 Enquire
014 7M109675
SEAL RING 		$15.73 48
015 1229718
VALVE GUIDE
GUIDA VALVOLA SCARICO 		$143.92 12
016 1224997
EXHAUST VALVE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA SCARICO (EATON) 		$555.82 12
016 7M109611
EXHAUST VALVE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA SCARICO (TRW) 		$104.17 12
017 1225001
VALVE SEAT
SEDE VALVOLA SCARICO 		- 12 Enquire
019 1224996
VALVE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (EATON) 		$56.16 12
019 7M109601
INTAKE VALVE
(WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n - 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (TRW) 		$72.71 12
020 1229717
VALVE GUIDE
GUIDA VALVOLA ASPIRAZIONE 		$143.92 12
021 8800604
BUSHING
BOCCOLA 		- 2 Enquire
022 8100631
SCREW
VITE 		$0.12 (98.4% off) 3
023 WHT003041
WASHER
RONDELLA
IN STOCK 		$0.89 (87.8% off) 3
024 1122089
DOWEL
GRANO 		$16.80 (4.5% off) 2
025 8606205
O-Ring
ANELLO TENUTA 		$4.29 2
026 1114502
COVER
COPERCHIO 		$189.21 2
027 8300601
STUD BOLT
PRIGIONIERO 		$8.56 8
028 8400620
WASHER
RONDELLA 		$1.50 (79.7% off) 8
029 8200605
NUT
DADO
IN STOCK 		$3.06 8
030 463400450
CYLINDER HEAD
TESTA SINISTRA LAVORATA 		- 1 Enquire
031 N01100637
NUT M6
DADO
IN STOCK 		$0.33 (95.5% off) 28
032 8410602
WASHER
RONDELLA
IN STOCK 		$44.87 28
033 8300640
STUD
PRIGIONIERO 		$16.94 28
