Timing System 1 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

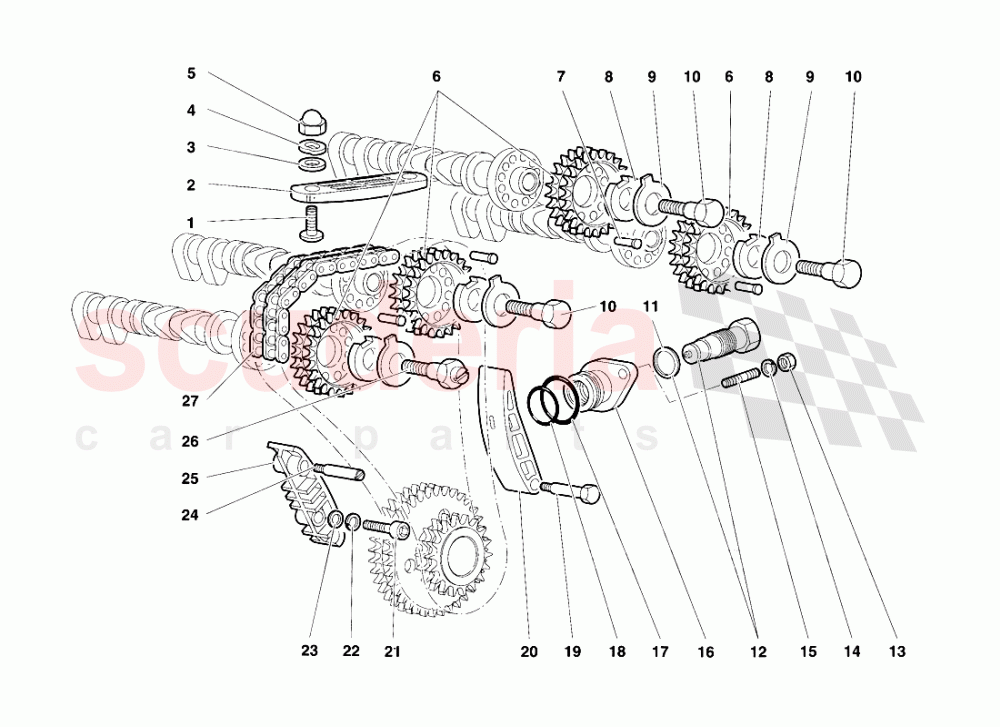

Lamborghini Diablo SV (1995-1997) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700682	SCREW IN STOCK	8700682 SCREW VITE IN STOCK	$0.56 MSRP: ~~7.28~~ (92.3% off)	4
002	7M109513	SHOE	7M109513 SHOE GUIDA	$767.49	2
003	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	4
004	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
005	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	4
006	1232198	GEAR	1232198 GEAR INGRANAGGIO	$589.33 MSRP: ~~596.00~~ (1.1% off)	4
007	1201964	DOWEL	1201964 DOWEL GRANO	$82.90	4
008	1219761	WASHER	1219761 WASHER RONDELLA	$92.81 MSRP: ~~97.00~~ (4.3% off)	4
009	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINA SICUREZZA	$43.99	4
010	1220990	SCREW	1220990 SCREW VITE	$35.11	3
011	WHT003048	WASHER 22 X 28 X 1.5 IN STOCK	WHT003048 WASHER 22 X 28 X 1.5 RONDELLA IN STOCK	$3.67	2
012	7M109255	Chain Tightener IN STOCK	7M109255 Chain Tightener TENDICATENA IN STOCK	$848.13	2
013	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	4
014	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
015	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	4
016	1132218	FLANGE	1132218 FLANGE FLANGIA	$426.79	2
017	8603702	SEAL IN STOCK	8603702 SEAL ANELLOTENUTA IN STOCK	$0.83 MSRP: ~~7.35~~ (88.7% off)	2
018	8602602	SEAL IN STOCK	8602602 SEAL IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
019	1232851	PIN	1232851 PIN PERNO	-	2	Enquire
020	7M109508	Shoe IN STOCK	7M109508 Shoe GUIDA IN STOCK	$236.56	2
021	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
022	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
023	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
024	1232837	PIN	1232837 PIN PERNO	-	2	Enquire
025	7M109469	SHOE IN STOCK	7M109469 SHOE GUIDA IN STOCK	$49.82	2
