Fuel Cap (Valid For Usa - January 1995)

Lamborghini Diablo SE30 (1993-1995)

Find Your Part

Lamborghini Diablo SE30 (1993-1995) - Fuel Cap (Valid for USA - January 1995)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

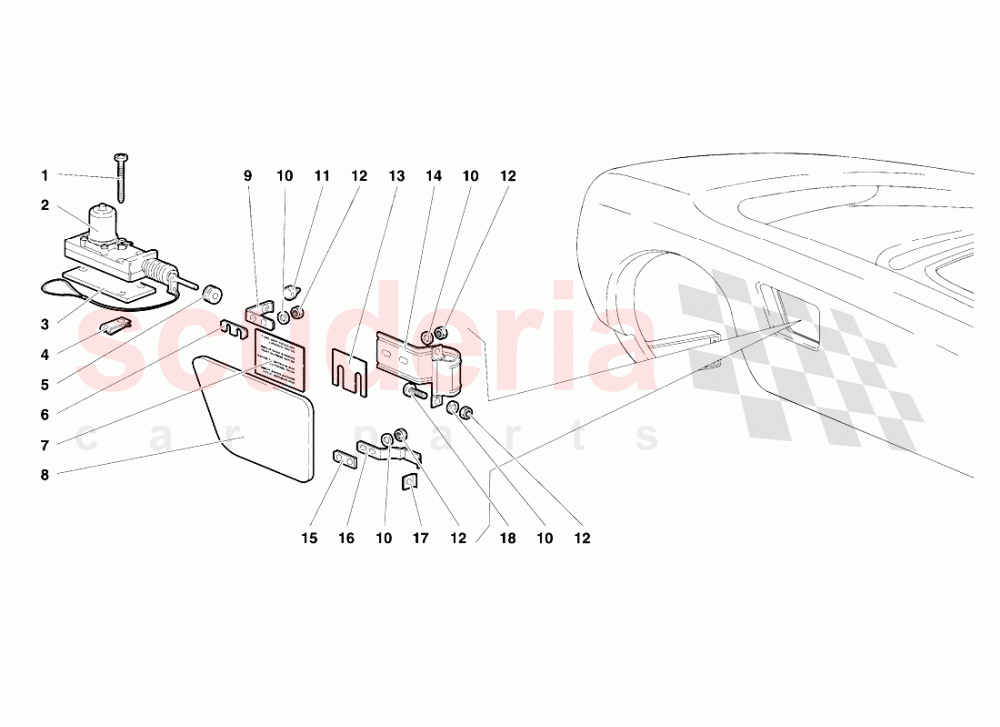

Fuel Cap (Valid for USA - January 1995) of Lamborghini Lamborghini Diablo SE30 (1993-1995) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8700450
SCREW
(Valid for USA - January 1995) VITE 		- 3 Enquire
002 5930521
CONTROL
(Valid for USA - January 1995) COMANDO APERTURA 		- 1 Enquire
003 5932766
SPACER
(Valid for USA - January 1995) DISTANZIALE 		- 1 Enquire
004 WHT003383
CLIP
(Valid for USA - January 1995) MOLLETTA 		- 3 Enquire
005 8610602
RUBBER RING
(Valid for USA - January 1995) ANELLO GOMMA 		- 1 Enquire
006 9490512
SPACER
(Valid for USA - January 1995) DISTANZIALE 		- 1 Enquire
007 9466106
PLATE
(Valid for USA - January 1995) TARGHETTA 		- 1 Enquire
008 9410209
LID
(Valid for USA - January 1995) SPORTELLO BENZINA 		- 1 Enquire
009 9490511
ANGLE PIECE
(Valid for USA - January 1995) RISCONTRO 		- 1 Enquire
010 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System)
(Valid for USA - January 1995) RONDELLA 		- 8 Enquire
011 9490509
RUBBER BUMPER
(Valid for USA - January 1995) PARACOLPI GOMMA 		- 1 Enquire
012 N0211963
NUT
(Valid for USA - January 1995) DADO 		- 8 Enquire
013 9490510
SPACER
(Valid for USA - January 1995) DISTANZIALE 		- 2 Enquire
014 9490501
HINGE
(Valid for USA - January 1995) CERNIERA 		- 1 Enquire
015 9490508
REINFORCEMENT
(Valid for USA - January 1995) RINFORZO 		- 1 Enquire
016 9490505
SPRING
(Valid for USA - January 1995) MOLLA 		- 1 Enquire
017 9490507
LOCK STRIKER
(Valid for USA - January 1995) RISCONTRO 		- 1 Enquire
018 8700544
SCREW
(Valid for USA - January 1995) VITE 		- 2 Enquire
