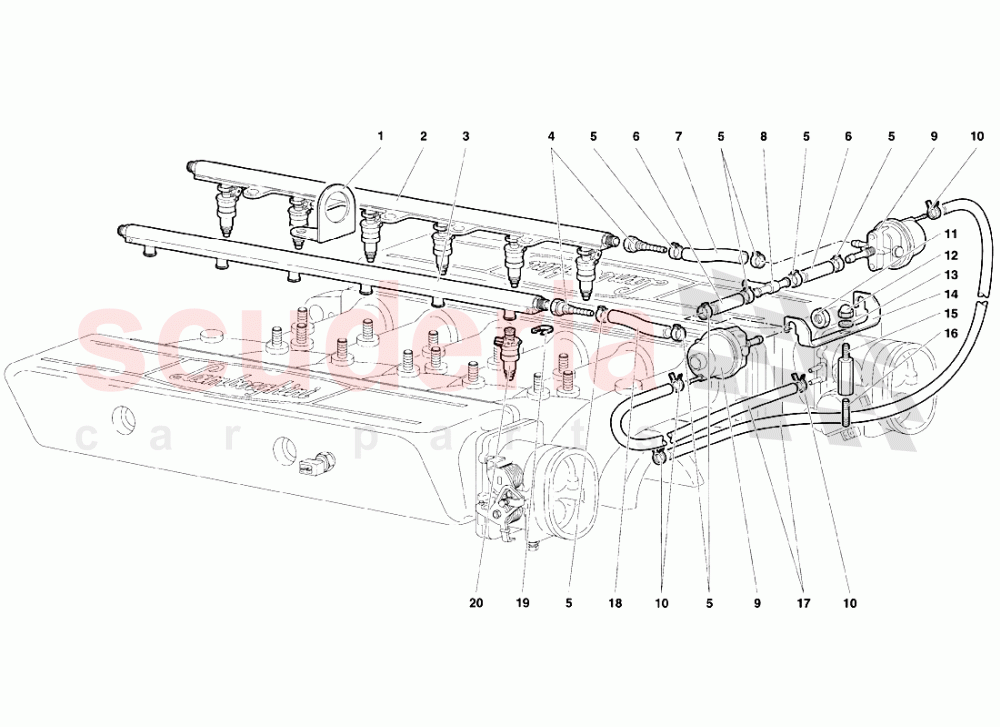

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1633721	SUPPORT - SUPPORTO	1633721 SUPPORT - SUPPORTO O CABL.CENTR.INIEZ.	$32.08	1
002	2032514	INJECTOR	2032514 INJECTOR TUBAZIONE E INIETTORI	$3,238.21	2
003	2027643	INJECTOR ASSEMBLY	2027643 INJECTOR ASSEMBLY TUBAZIONE RIGIDA	$4,466.50	2
004	6227630	CONNECTION	6227630 CONNECTION RACCORDO	$14.99	2
005	8831527	STRAP	8831527 STRAP FASCETTA	$4.56	8
006	2033782	PIPE	2033782 PIPE TUBO FLESSIBILE	$30.09	2
007	2035253	FLEX. HOSE	2035253 FLEX. HOSE TUBO FLESSIBILE	$338.73	1
008	2033783	CONNECTION	2033783 CONNECTION RACCORDO A 3 VIE	$26.94	1
009	2027648	PRESSURE REGULATOR IN STOCK	2027648 PRESSURE REGULATOR REGOLATORE PRESSIONE IN STOCK	$686.90	2
010	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	4
011	8201223	NUT	8201223 NUT DADO	-	2	Enquire
012	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
013	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
014	2033784	BRACKET	2033784 BRACKET STAFFA	$151.28	1
015	1128397	STUD	1128397 STUD COLONNETTA	$35.30	1
016	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	1
017	1532659	PIPE	1532659 PIPE TUBO FLESSIBILE	$19.48	2
018	2035255	FLEX. HOSE	2035255 FLEX. HOSE TUBO FLESSIBILE	$169.36	1
019	2027642	CLIP	2027642 CLIP MOLLETTA	-	12	Enquire
020	7M906031	WE.IW031 430003 INJECTOR	7M906031 WE.IW031 430003 INJECTOR INIETTORE	$1,268.84	12
