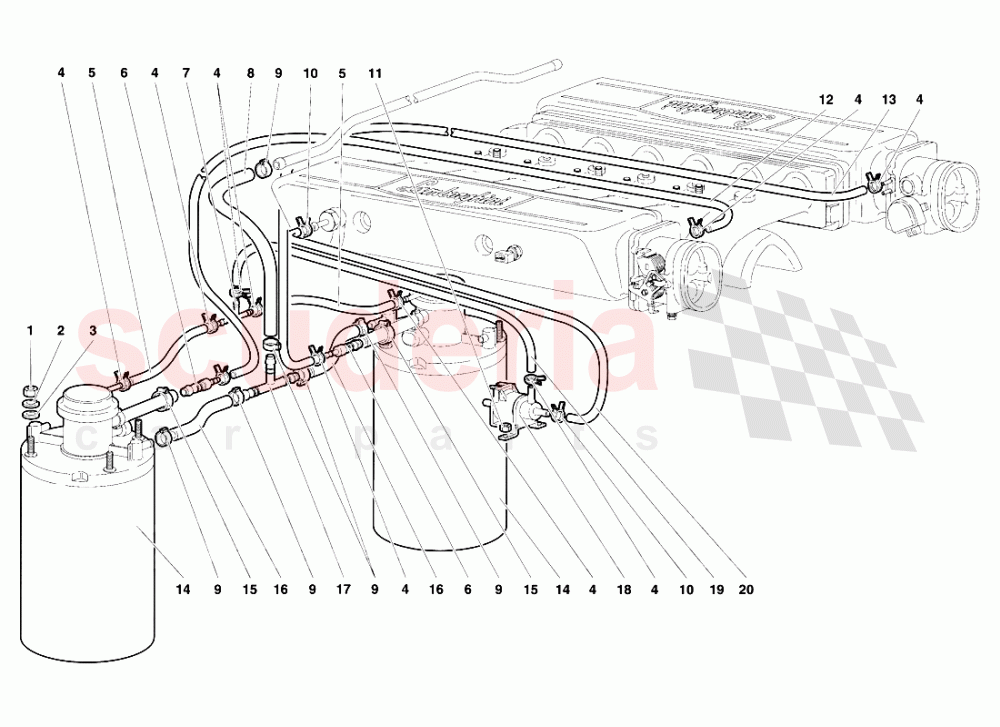

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8200610	NUT	8200610 NUT DADO	$2.56	4
002	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	4
003	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
004	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	10
005	6230460	PIPE	6230460 PIPE TUBO FLESSIBILE	$7.16 MSRP: ~~7.25~~ (1.2% off)	2
006	6231341	CONNECTION	6231341 CONNECTION RACCORDO	$3.24 MSRP: ~~3.30~~ (1.8% off)	2
007	7014169	T UNION	7014169 T UNION RACCORDO A 3 VIE	$24.62 MSRP: ~~25.65~~ (4% off)	1
008	6231443	PIPE	6231443 PIPE TUBO FLESSIBILE	$18.13	1
009	8831527	STRAP	8831527 STRAP FASCETTA	$4.56	6
010	8830122	CLAMP	8830122 CLAMP FASCETTA	$0.34 MSRP: ~~7.33~~ (95.4% off)	2
011	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
012	6231343	PIPE	6231343 PIPE TUBO FLESSIBILE	$38.27	1
013	6231342	PIPE	6231342 PIPE TUBO FLESSIBILE	$120.43	1
014	6229306	VAPOR TRAP	6229306 VAPOR TRAP FILTRO VAPORI	$2,033.72	2
015	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$18.10	2
016	6230433	PIPE	6230433 PIPE TUBO CANISTER.DX/SX/3VIE	$61.24	2
017	6220752	T UNION	6220752 T UNION RACCORDO A 3 VIE	$5.90 MSRP: ~~6.00~~ (1.7% off)	1
018	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE ELETTROVALVOLA IN STOCK	$57.20	1
019	6230456	PIPE	6230456 PIPE TUBO FLESSIBILE	$35.32	1
020	6234475	PIPE	6234475 PIPE TUBO FLESSIBILE	$60.31	1
