Fuel System 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

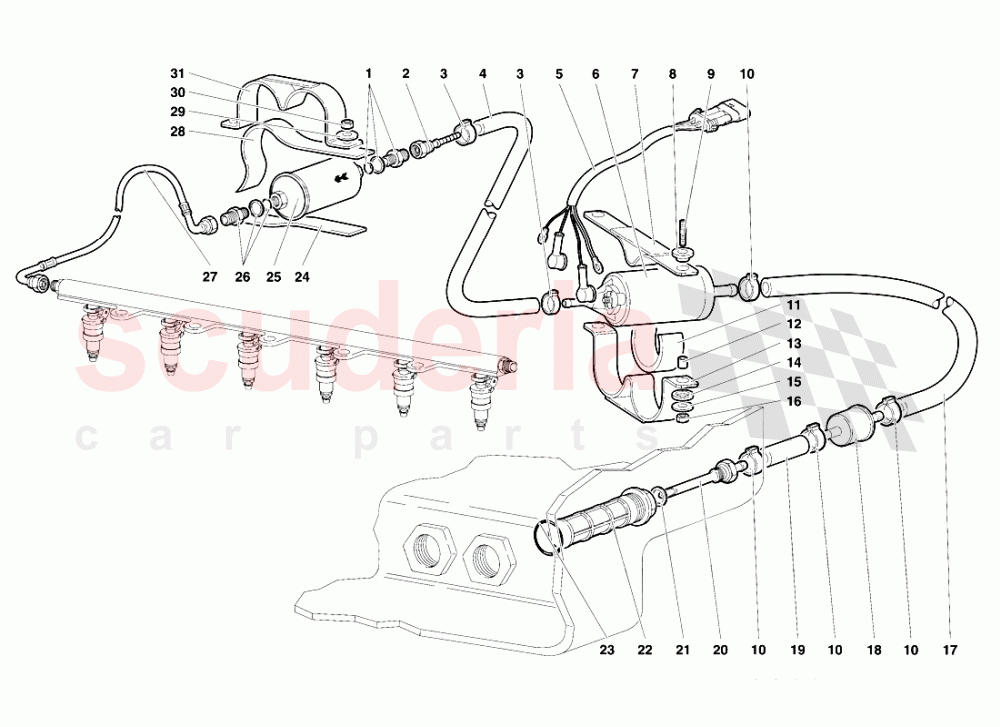

Lamborghini Diablo SE30 (1993-1995) - Fuel System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5122740	CONNECTION	5122740 CONNECTION RACCORDO	$87.60	2
002	6227630	CONNECTION	6227630 CONNECTION RACCORDO	$14.99	2
003	8831527	STRAP	8831527 STRAP FASCETTA	$4.56	4
004	6230218	PIPE	6230218 PIPE TUBO POMPA/FILTRO BENZINA	$50.01	2
005	6130194	ELECT CABLE	6130194 ELECT CABLE CABLAGGIO POMPE BENZINA	$41.75 MSRP: ~~43.65~~ (4.4% off)	1
006	2024398	FUEL PUMP	2024398 FUEL PUMP POMPA ALIMENTAZIONE	$764.28	2
007	6229533	PLATE	6229533 PLATE PIASTRA	$60.93 MSRP: ~~63.80~~ (4.5% off)	1
008	1701495	RUBBER RING	1701495 RUBBER RING ANELLO GOMMA	$58.63	2
009	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	$13.40	2
010	400251189B	CLAMP IN STOCK	400251189B CLAMP IN STOCK	$10.80	8
011	6226900	GASKET	6226900 GASKET GUARNIZIONE	$26.79	2
012	1701592	DOWEL	1701592 DOWEL GRANO	$28.90	2
013	6229532	STRAP	6229532 STRAP FASCETTA	$109.32	1
014	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$6.27	2
015	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.30	2
016	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	2
017	6230225	PIPE	6230225 PIPE TUBO F.BENZ.AGG./POMPA BE	$22.45	2
018	6229221	OIL FILTER IN STOCK	6229221 OIL FILTER FILTRO COMBUSTIBILE IN STOCK	$115.46	2
019	6230226	PIPE	6230226 PIPE TUBO F.BENZ./F.BENZ.AGG.	$46.38	2
020	6230175	PIPE	6230175 PIPE TUBO PESCANTE BENZ.	$369.73	2
021	8402007	WASHER IN STOCK	8402007 WASHER RONDELLA IN STOCK	$0.64 MSRP: ~~7.29~~ (91.2% off)	2
022	6229580	NET	6229580 NET FILTRO COMBUSTIBILE	$1,076.91	2
023	8603703	SEAL	8603703 SEAL ANELLO TENUTA	$20.86 MSRP: ~~21.75~~ (4.1% off)	2
024	410201196	GASKET	410201196 GASKET GUARNIZIONE	$4.98	1
025	400201511A	Fuel Filter IN STOCK	400201511A Fuel Filter IN STOCK	$260.17	2
026	6230564	CONNECTION	6230564 CONNECTION RACCORDO	-	2	Enquire
027	6231554	PIPE	6231554 PIPE TUBO FILTRO BENZ. BANCATA7-12	$151.98	1
027	6231552	PIPE	6231552 PIPE TUBO FILTRO BENZ. BANCATA 1-6	$259.13	1
028	410201349	GASKET	410201349 GASKET GUARNIZIONE	$32.81	1
029	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	2
030	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	2
031	6230214	STRAP	6230214 STRAP FASCETTA	-	1	Enquire
