Seat and Safety Belts of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Seat and Safety Belts

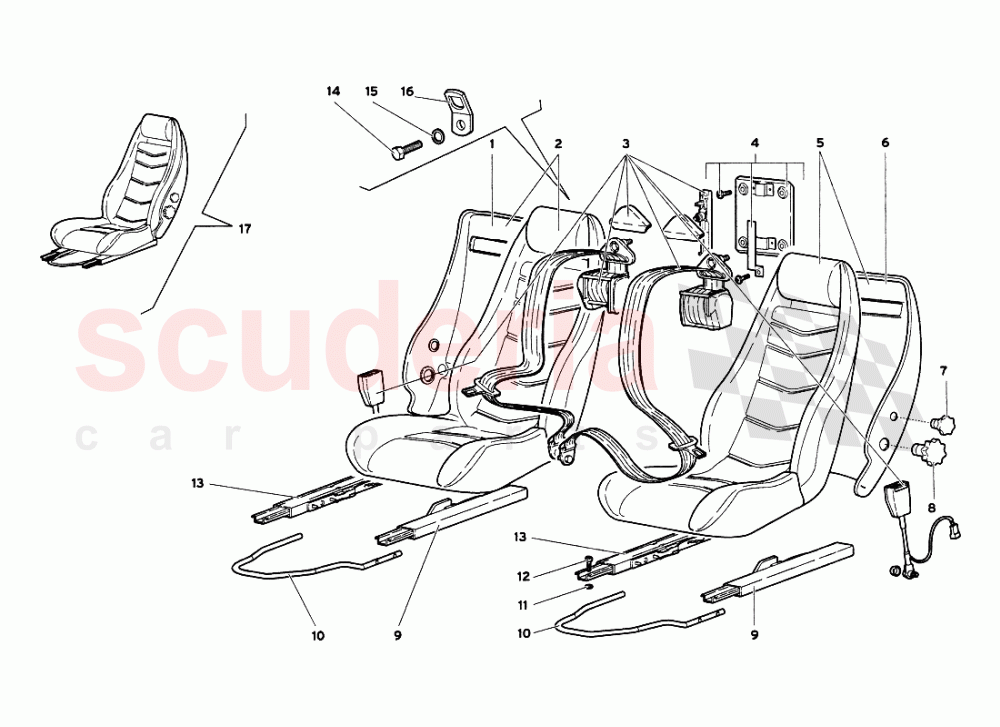

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	75006923	RH SEAT BACK PANEL	75006923 RH SEAT BACK PANEL	$209.68 MSRP: ~~212.00~~ (1.1% off)	1
002	75005343	RH SEAT WITH SEAT BACK	75005343 RH SEAT WITH SEAT BACK	$8,330.21	1
003	97001597	SEAT BELTS	97001597 SEAT BELTS (Valid for USA - March 2001)	$430.52	1
003	97001596	SEATS BELTS	97001596 SEATS BELTS	$467.55	1
003	97001597	SEAT BELTS	97001597 SEAT BELTS (Valid for CANADA - March 2001)	$430.52	1
004	97001713	SUPPORT	97001713 SUPPORT	-	1	Enquire
005	75005344	LH SEAT WITH SEAT BACK	75005344 LH SEAT WITH SEAT BACK	$8,330.21	1
006	75006925	LH SEAT BACK PANEL	75006925 LH SEAT BACK PANEL	$197.29 MSRP: ~~199.50~~ (1.1% off)	1
007	75009199	LUMBAR SUPPORT ADJUSTING HANDLE	75009199 LUMBAR SUPPORT ADJUSTING HANDLE	$50.08	2
008	75009198	SEAT BACK ADJUSTMENT KNOB	75009198 SEAT BACK ADJUSTMENT KNOB	$42.92 MSRP: ~~44.80~~ (4.2% off)	2
009	9435201	LEFT SEAT GUIDE	9435201 LEFT SEAT GUIDE	-	2	Enquire
010	9435207	LEVER	9435207 LEVER	-	2	Enquire
011	9435257	SPACER	9435257 SPACER	$14.52	8
012	8700847	SCREW	8700847 SCREW	$1.86 MSRP: ~~7.06~~ (73.7% off)	8
013	410881220	RH GUIDE	410881220 RH GUIDE replaces 009435200	$75.97	2
013	9435200	LEFT SEAT GUIDE	9435200 LEFT SEAT GUIDE not as spare part - use part number: 410881220	-	2	Enquire
014	8101075	SCREW	8101075 SCREW (Valid for USA - March 2001)	-	1	Enquire
014	8101075	SCREW	8101075 SCREW (Valid for CANADA - March 2001)	-	1	Enquire
015	8401240	WASHER	8401240 WASHER (Valid for USA - March 2001)	$7.81 MSRP: ~~8.10~~ (3.6% off)	1
015	8401240	WASHER	8401240 WASHER (Valid for CANADA - March 2001)	$7.81 MSRP: ~~8.10~~ (3.6% off)	1
016	97003957	CHILD SEAT ANCHORAGE	97003957 CHILD SEAT ANCHORAGE (Valid for USA - March 2001)	-	1	Enquire
016	97003957	CHILD SEAT ANCHORAGE	97003957 CHILD SEAT ANCHORAGE (Valid for CANADA - March 2001)	-	1	Enquire
017	75006331	RH COMPLETE SEAT	75006331 RH COMPLETE SEAT	-	1	Enquire
017	75006332	LH COMPLETE SEAT	75006332 LH COMPLETE SEAT	-	1	Enquire
