Passenger Compartment Trims 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

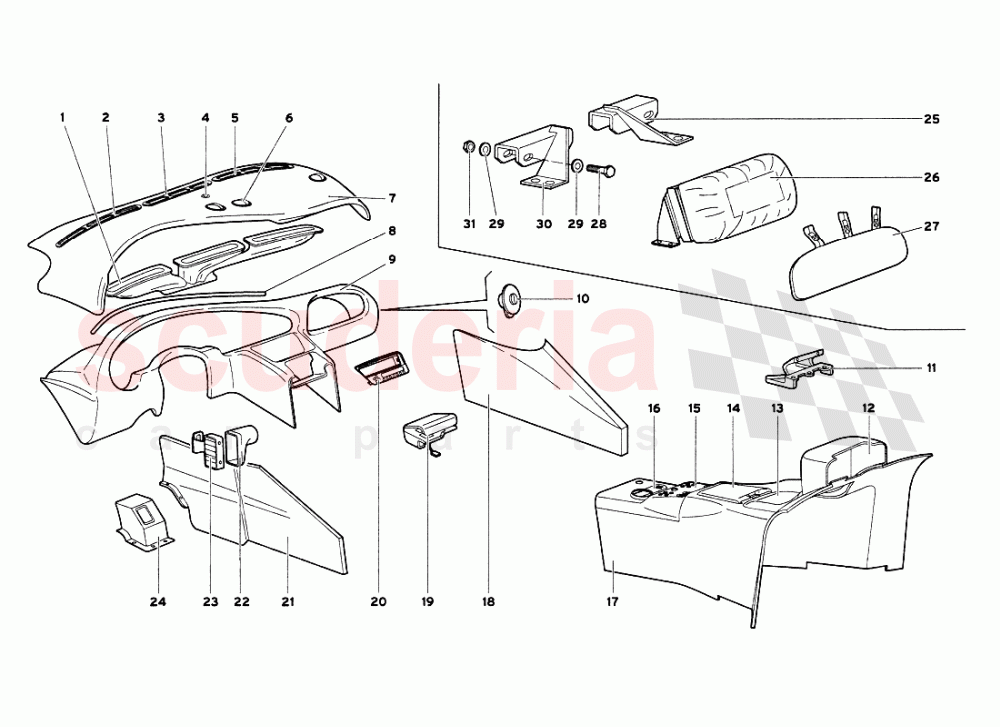

Lamborghini Diablo VT 6.0 (2000-2001) - Passenger Compartment Trims 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	69005565	CONVEYOR	69005565 CONVEYOR	-	1	Enquire
002	69005471	LH FRAME	69005471 LH FRAME	-	1	Enquire
003	69005472	CENTRAL FRAME	69005472 CENTRAL FRAME	-	1	Enquire
004	60002734	SENSOR	60002734 SENSOR	-	1	Enquire
005	69005470	RH FRAME	69005470 RH FRAME	-	1	Enquire
006	9914500	AIR VENT	9914500 AIR VENT	-	3	Enquire
007	69007219	DASHBOARD UPPER PART	69007219 DASHBOARD UPPER PART	-	1	Enquire
008	69005599	DASHBOARD WARNING LAMP COVER	69005599 DASHBOARD WARNING LAMP COVER	-	1	Enquire
009	69005543	DASHBOARD PANEL	69005543 DASHBOARD PANEL	-	1	Enquire
010	60005596	A1RBAG SWITCH	60005596 A1RBAG SWITCH	-	1	Enquire
011	78005462	HINGE	78005462 HINGE	-	1	Enquire
012	78005612	BELT COVER	78005612 BELT COVER	-	1	Enquire
013	78005611	GLOVEBOX COVER	78005611 GLOVEBOX COVER	-	1	Enquire
014	78006724	PANEL ON TUNNEL	78006724 PANEL ON TUNNEL	-	1	Enquire
015	78005447	TUNNEL COVER TRIM	78005447 TUNNEL COVER TRIM	-	1	Enquire
016	24006636	GEARBOX FRAME	24006636 GEARBOX FRAME	-	1	Enquire
017	78006723	TUNNEL COVER	78006723 TUNNEL COVER	-	1	Enquire
018	9414303	PANEL	9414303 PANEL	-	1	Enquire
019	59006338	ASHTRAY	59006338 ASHTRAY	-	1	Enquire
020	69006955	SOUND SYSTEM PANEL (CLARION)	69006955 SOUND SYSTEM PANEL (CLARION)	-	1	Enquire
020	69009275	SOUND SYSTEM PANEL (ALPINE)	69009275 SOUND SYSTEM PANEL (ALPINE)	-	1	Enquire
021	9414336	PANEL	9414336 PANEL	-	1	Enquire
022	78006875	OUTLET	78006875 OUTLET	-	1	Enquire
023	78006876	GRILLE	78006876 GRILLE	-	1	Enquire
024	9458364	CASE	9458364 CASE	-	1	Enquire
025	41006487	RH SUPPORT	41006487 RH SUPPORT	-	1	Enquire
026	413880199	AIR BAG MODULE	413880199 AIR BAG MODULE	-	1	Enquire
027	9914314	AIRBAG LID	9914314 AIRBAG LID	-	1	Enquire
028	N0147519	SCREW M8X50	N0147519 SCREW M8X50	-	3	Enquire
029	8400826	WASHER	8400826 WASHER	-	3	Enquire
030	41006486	LH SUPPORT	41006486 LH SUPPORT	-	1	Enquire
031	8200803	NUT	8200803 NUT	-	3	Enquire
