Lamborghini Diablo VT 6.0 (2000-2001) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

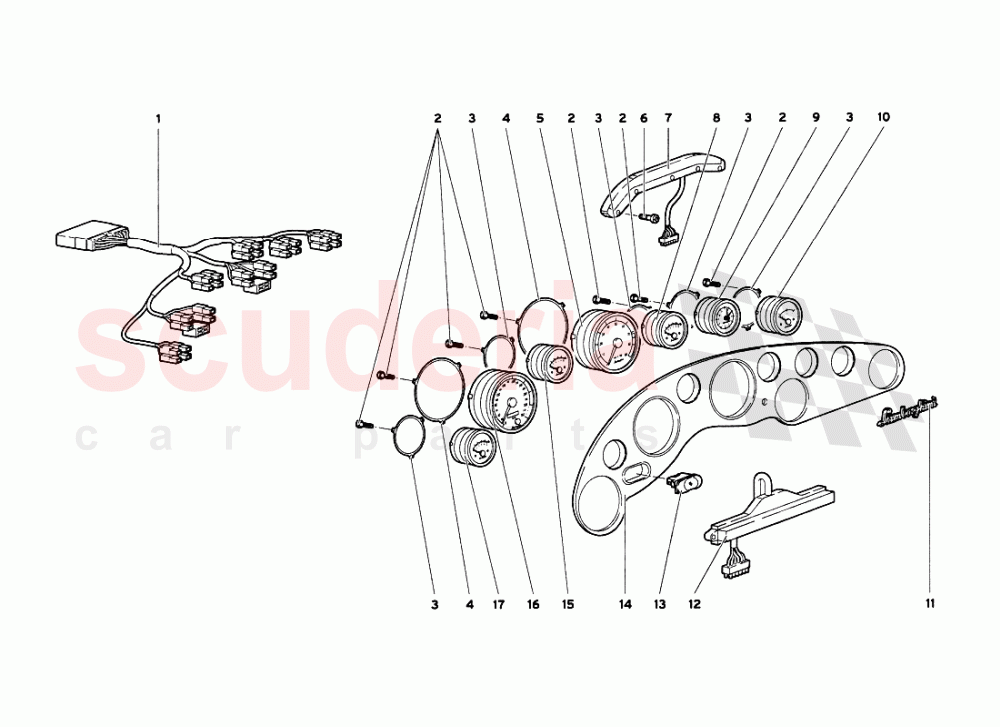

Dashboard Instruments of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 61008764
DASHBOARD WIRING 		- 1 Enquire
002 8700337
SCREW 		- 21 Enquire
003 60006349
PLATE (DIA. 50) 		- 5 Enquire
004 60006348
PLATE (DIA.100) 		- 2 Enquire
005 60006342
REVOLUTION COUNTER 		- 1 Enquire
006 8700444
SCREW 		- 5 Enquire
007 60002492
WARNING LIGHTS 		- 1 Enquire
007 60008510
CENTRAL WARNING LIGHTS (MY 2001) 		- 1 Enquire
008 60006346
FUEL LEVEL GAUGE 		- 1 Enquire
009 60006347
CLOCK 		- 1 Enquire
010 60006344
OIL TEMPERATURE GAUGE 		- 1 Enquire
011 94005414
LAMBORGHINI ORNAMENT 		- 1 Enquire
012 60008746
SIDE WARNING LIGHTS MY 2001 		- 1 Enquire
012 60007172
SIDE WARNING LIGHTS MY 2000 		- 1 Enquire
013 60006350
LIFTING SYSTEM SWITCH 		- 1 Enquire
014 60007457
INSTRUMENT PANEL
(Valid for AUSTRALIA - March 2001) 		- 1 Enquire
014 60006340
INSTRUMENT PANEL 		- 1 Enquire
014 60007457
INSTRUMENT PANEL
(Valid for GB - March 2001) 		- 1 Enquire
015 60006345
WATER TEMPERATURE GAUGE 		- 1 Enquire
016 60007435
SPEEDOMETER - MILES
(Valid for USA - March 2001) 		- 1 Enquire
016 60006341
SPEEDOMETER - KM 		- 1 Enquire
016 60007435
SPEEDOMETER - MILES
(Valid for GB - March 2001) 		- 1 Enquire
017 60006343
OIL PRESSURE GAUGE 		- 1 Enquire
