Passenger Compartment Trims 3

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Passenger Compartment Trims 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

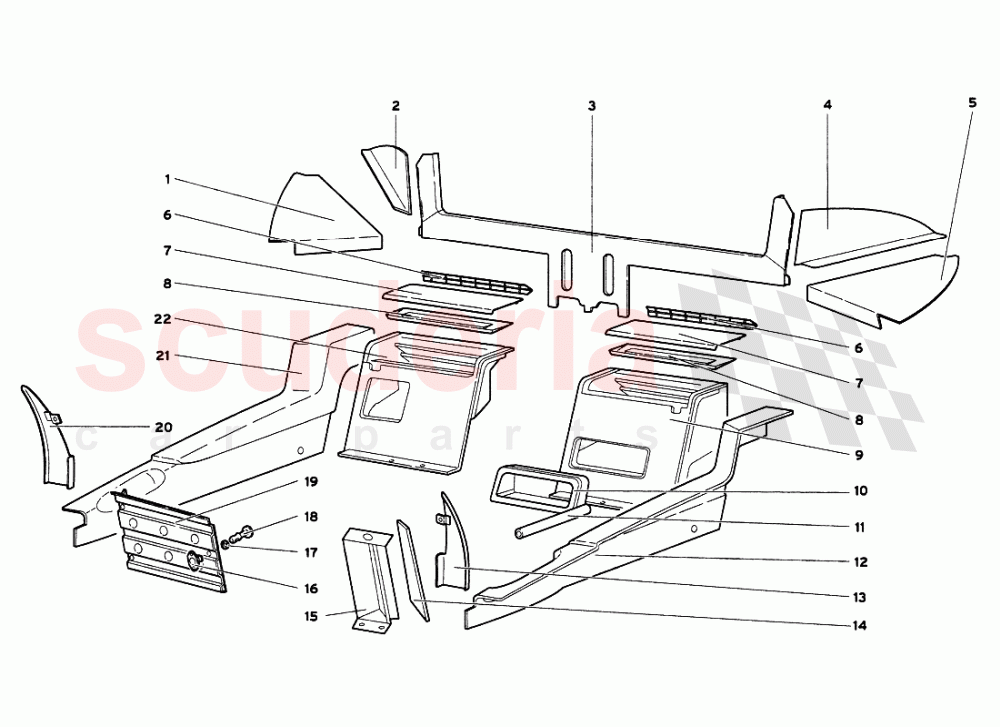

Passenger Compartment Trims 3 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 9458233
RIGHT PANEL 		- 1 Enquire
002 9458249
LEFT PANEL 		- 1 Enquire
003 78007382
PANEL 		- 1 Enquire
004 9458248
RIGHT PANEL 		- 1 Enquire
005 9458236
LEFT PANEL 		- 1 Enquire
006 78007236
HINGE 		- 2 Enquire
007 78005260
COVER 		- 2 Enquire
008 78005456
FRAMING 		- 2 Enquire
009 78008209
LH UTILITY HOLDER 		- 1 Enquire
010 78008219
NAVIGATOR HOUSING FRAME (ALPINE) 		- 1 Enquire
010 78008210
NAVIGATOR HOUSING FRAME (CLARION) 		- 1 Enquire
011 9458601
SHIELD 		- 1 Enquire
012 78005454
LH SIDE MEMBER COVER PANEL 		- 1 Enquire
013 78008790
LH PANEL 		- 1 Enquire
014 42005348
PLATE COVER 		- 1 Enquire
015 42007430
FOOTREST PLATE 		- 1 Enquire
016 9458349
CLIP 		- 3 Enquire
017 9458350
RUBBER RING 		- 3 Enquire
018 9458391
PIN 		- 3 Enquire
019 78004633
PLATE 		- 1 Enquire
020 78008789
RH PANEL 		- 1 Enquire
021 78005453
RH SIDE MEMBER COVER PANEL 		- 1 Enquire
022 78008602
RH UTILITY HOLDER 		- 1 Enquire
