Lamborghini Diablo VT 6.0 (2000-2001) - Climate Control (Valid for GB & Australia - March 2001) 2

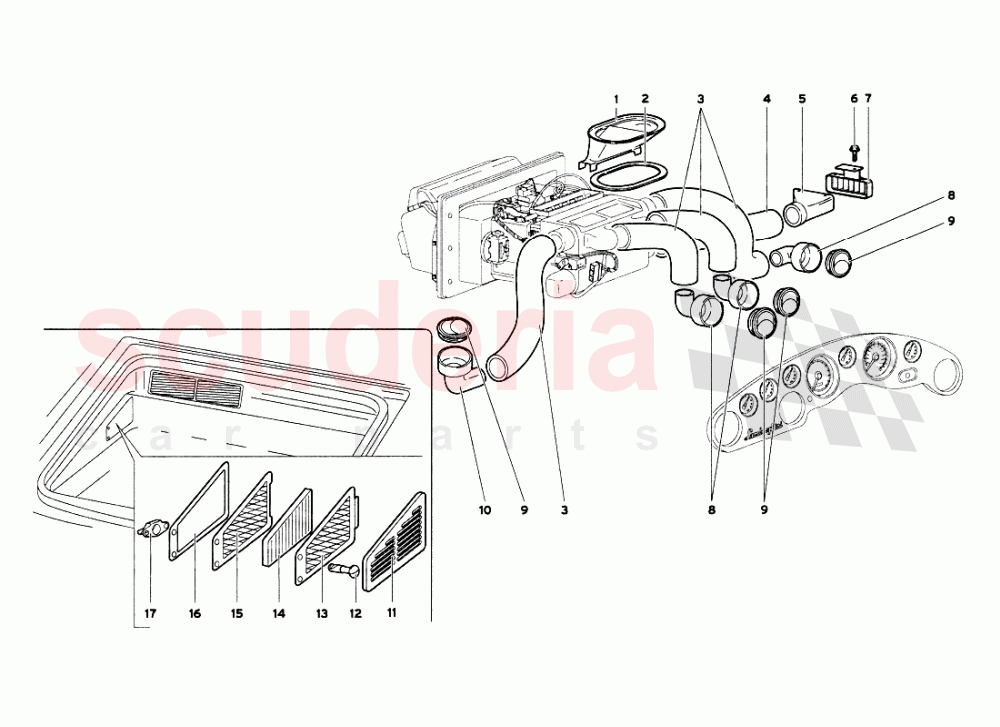

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	69007770	CENTRAL VENT	69007770 CENTRAL VENT (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
002	69005083	GASKET	69005083 GASKET (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
003	45003634	PIPE	45003634 PIPE (Valid for GB & AUSTRALIA - March 2001)	-	2	Enquire
004	45003635	PIPE	45003635 PIPE (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
005	78006875	OUTLET	78006875 OUTLET (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
006	N90319404	SCREW	N90319404 SCREW (Valid for GB & AUSTRALIA - March 2001)	-	2	Enquire
007	78008022	GRILLE	78008022 GRILLE (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
008	7114006	SUPPORT	7114006 SUPPORT (Valid for GB & AUSTRALIA - March 2001)	-	3	Enquire
009	9914500	AIR VENT	9914500 AIR VENT (Valid for GB & AUSTRALIA - March 2001)	-	4	Enquire
010	7014135	CONNECTION	7014135 CONNECTION (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
011	65008986	LH TRIM	65008986 LH TRIM (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
011	65008985	RH TRIM	65008985 RH TRIM (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
012	4131085	PIN	4131085 PIN (Valid for GB & AUSTRALIA - March 2001)	-	4	Enquire
013	41006830	RH COVER GRID	41006830 RH COVER GRID (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
013	410805391	LEFT CLOSING GRID	410805391 LEFT CLOSING GRID (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
014	410820367A	Pollen Filter	410820367A Pollen Filter replaces 0045006134	-	2	Enquire
014	45006134	AIR FILTER	45006134 AIR FILTER not as spare part - use part number: 410820367A	-	2	Enquire
015	410805396	LEFT SUPPORT	410805396 LEFT SUPPORT (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
015	410805395	RIGHT SUPPORT	410805395 RIGHT SUPPORT (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
016	410805349	RH GASKET	410805349 RH GASKET (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
016	9490205	LEFT GASKET	9490205 LEFT GASKET (Valid for GB & AUSTRALIA - March 2001)	-	1	Enquire
017	4131086	SECURING DEVICE	4131086 SECURING DEVICE (Valid for GB & AUSTRALIA - March 2001)	-	4	Enquire
