Lamborghini Diablo VT 6.0 (2000-2001) - Radiators and Electric Fans

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

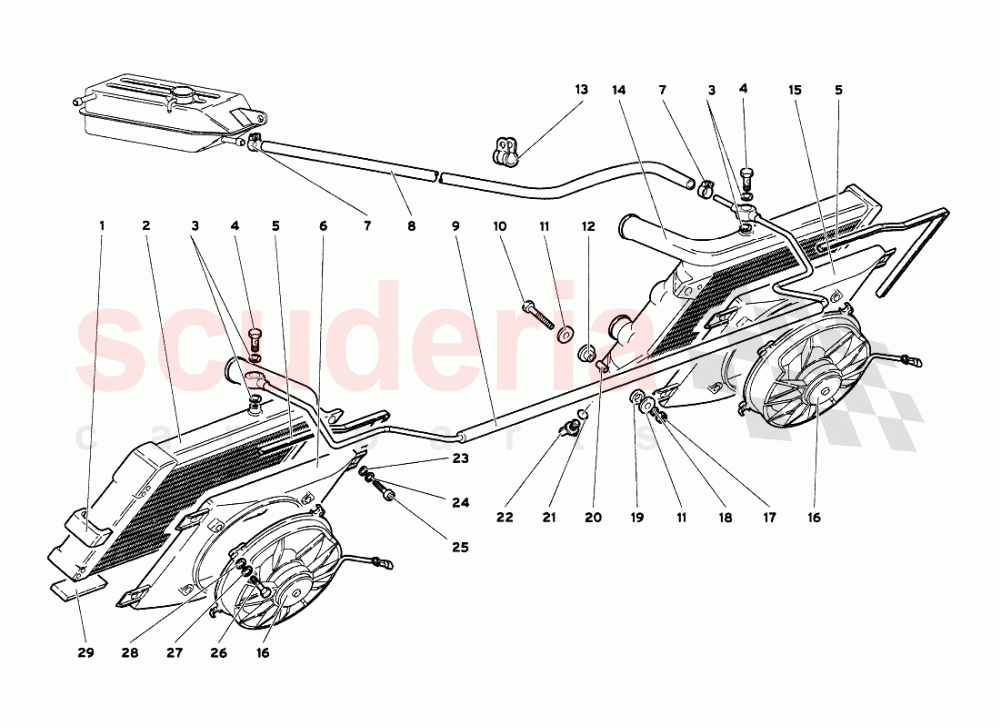

Radiators and Electric Fans of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1733004
GASKET 		- 4 Enquire
002 1735035
LH RADIATOR 		- 1 Enquire
003 8400818
WASHER
(Includes the engine gasket kit & cover gasket kit) 		- 4 Enquire
004 WHT000524
BANJO BOLT 		- 2 Enquire
005 410121539
GASKET 		- 2 Enquire
006 410121333
LEFT CONVEYOR 		- 1 Enquire
007 8830817
CLAMP 		- 2 Enquire
008 1735264
PIPE 		- 1 Enquire
009 17006959
VENT PIPE 		- 1 Enquire
010 8100824
SCREW 		- 4 Enquire
011 WHT001942
WASHER 		- 8 Enquire
012 1733266
RUBBER BUSHING 		- 4 Enquire
013 8831515
CLAMP 		- 1 Enquire
014 1735034
RH RADIATOR 		- 1 Enquire
015 410121334A
RH CONVEYOR
CONVOGLIATORE DESTRO 		- 1 Enquire
016 17017063
ELECTROFAN 		- 2 Enquire
017 N0111849
NUT 		- 4 Enquire
018 N90179103
WASHER 18X8,4X2,5 		- 4 Enquire
019 WHT001189
PLASTIC WASHER 		- 4 Enquire
020 400121277
DISTANCE PIECE 		- 4 Enquire
021 8600906
SEAL 		- 2 Enquire
022 410121299
PLUG 		- 2 Enquire
023 WHT002961
WASHER 		- 8 Enquire
024 WHT003213
WASHER 		- 8 Enquire
025 8700644
SCREW 		- 8 Enquire
026 8100502
SCREW 		- 8 Enquire
027 8410502
WASHER 		- 8 Enquire
028 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		- 8 Enquire
029 1731451
GASKET 		- 2 Enquire
