Engine Oil Breathing System

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Engine Oil Breathing System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

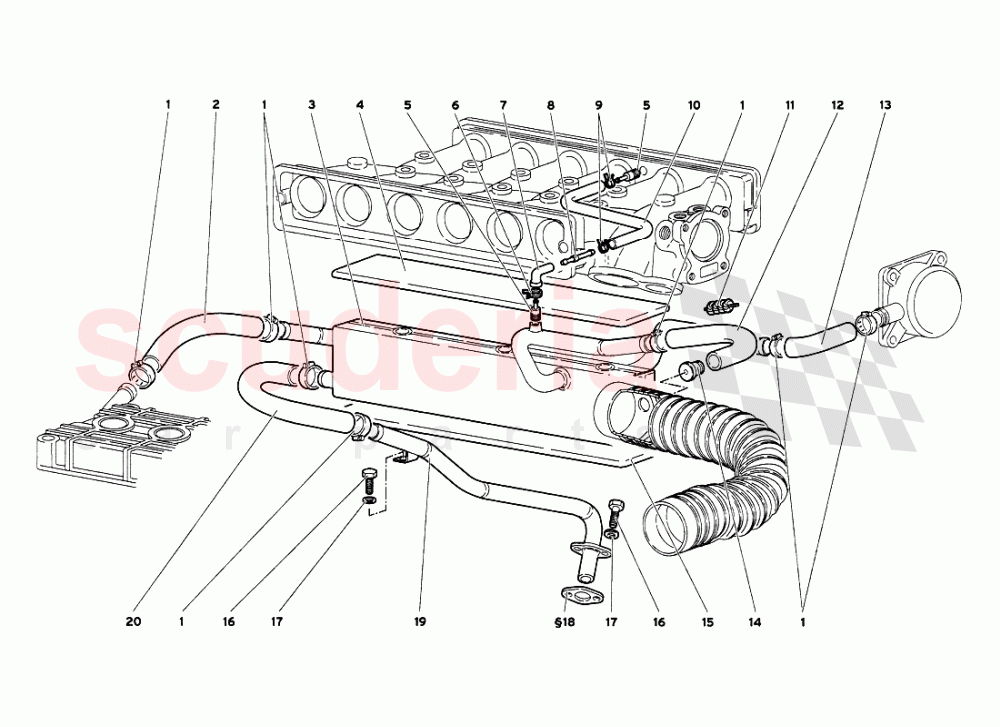

Engine Oil Breathing System of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8832003
CLAMP
IN STOCK 		$44.10 7
002 1533391
PIPE 		$116.84 1
003 1533385
TANK 		$581.90 1
004 1533448
INSULATOR 		$36.12 1
005 1328721
CONNECTION 		$20.12 (1.1% off) 2
006 8830122
CLAMP 		$0.34 (95.4% off) 1
007 7L131756
CONNECTOR 		$28.32 1
008 1329319
ADAPTER 		$1.17 (83.7% off) 1
009 8830128
CLAMP 		$0.46 2
010 1333445
PIPE 		$15.35 1
011 1532768
FLAME TRAP 		$24.51 (1.2% off) 1
012 1533775
PIPE 		$121.89 1
013 1533391
PIPE 		$116.84 1
014 1333773
CONNECTION 		$24.13 (1.1% off) 1
015 1533447
INSULATOR 		$78.52 1
016 8100601
SCREW 		$0.27 3
017 8410602
WASHER
IN STOCK 		$44.87 3
018 15006613
GASKET
(Included in the engine gasket kit) 		$5.14 (2.1% off) 1
019 1532643
PIPE 		$73.72 1
020 1532654
PIPE 		$80.65 1
