Rear Suspension (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

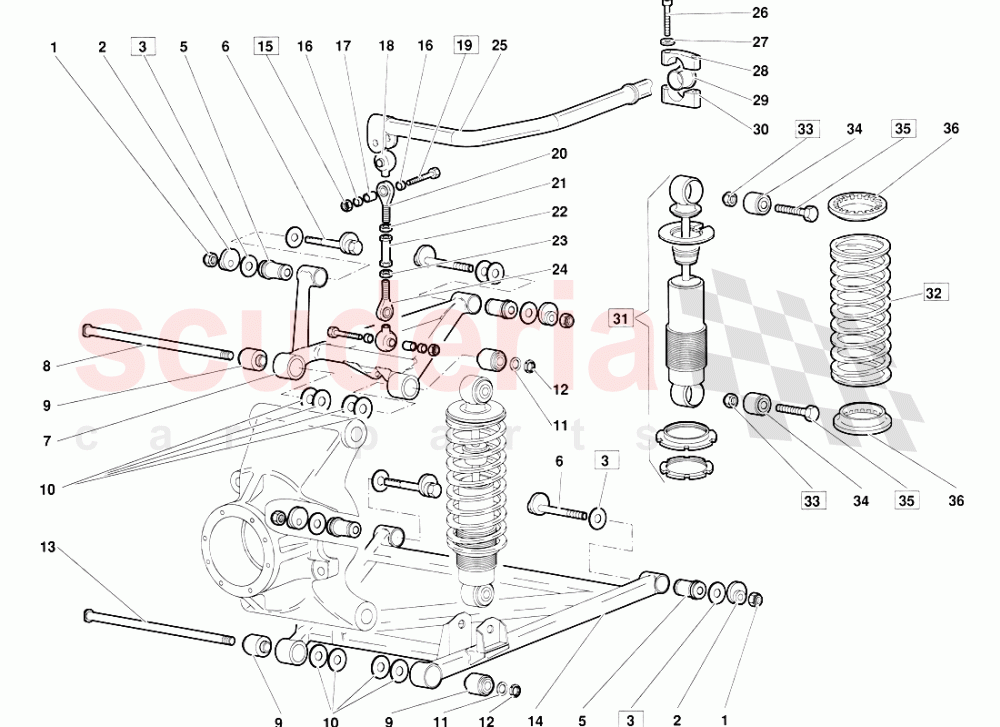

Lamborghini Diablo (1990-1998) - Rear Suspension (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$21.86	8
002	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,318.56	8
003	410407295D	WASHER	410407295D WASHER SPESSORE Dl REGISTRO SP = 3 MM (Dalla 12678)	$29.71	1
003	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO SP = 2,5 MM (Dalla 12678)	$7.32	1
003	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO SP = 2 MM (Dalla 12678)	$6.66	1
003	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO SP = 1 MM (Dalla 12678)	$4.52	1
003	5133488	SHIM	5133488 SHIM SPESSORE Dl REGISTRO SP = 1,5 MM (Dalla 12678)	$3.25	1
005	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$50.31	8
006	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,318.56	8
007	5225908	RH UPPER SUSPENSION ARM	5225908 RH UPPER SUSPENSION ARM	$2,388.33	1
007	5225909	ARM	5225909 ARM BRACCIO SUPERIORE SINISTRO	$2,656.13	1
008	5225204	PIN	5225204 PIN PERNO	$91.82	2
009	5225207	RESILIENT BUSHING	5225207 RESILIENT BUSHING BOCCOLA ELASTICA	$454.50	8
010	8401710	WASHER	8401710 WASHER SPESSORE Dl REGISTRO	$41.45	16
011	8401708	WASHER	8401708 WASHER RONDELLA	$2.56	4
012	8251702	PLUG IN STOCK	8251702 PLUG GHIERA IN STOCK	$3.85 MSRP: ~~3.95~~ (2.5% off)	4
013	5225205	PIN	5225205 PIN PERNO	$91.82	2
014	5225907	ARM	5225907 ARM BRACCIO INFERIORE SINISTRO	$1,968.56	1
014	5225906	ARM	5225906 ARM BRACCIO INFERIORE DESTRO	$1,990.31	1
016	N0111849	NUT IN STOCK	N0111849 NUT DADO (sostituisce il 008200809) IN STOCK	$2.15 MSRP: ~~7.25~~ (70.3% off)	4
016	5227297	BUSHING	5227297 BUSHING BOCCOLA	$32.36	8
017	5227298	BUSHING	5227298 BUSHING BOCCOLA	$17.62	4
018	5109714	BOOT	5109714 BOOT CAPPUCCIO	$26.25	4
019	8100810	SCREW	8100810 SCREW VITE (sostituisce il 008100807)	-	4	Enquire
020	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTOSFERICO	$264.79	2
021	8201014	NUT	8201014 NUT DADO	$6.15	1
022	5209770	TIE ROD	5209770 TIE ROD TIRANTE	$114.15	1
023	8201016	NUT	8201016 NUT DADO	$22.76	2
024	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$152.72	2
025	5230211	STABILIZER BAR	5230211 STABILIZER BAR BARRA STABILIZZATRICE	$1,419.97	1
026	8700609	SCREW	8700609 SCREW VITE	$0.53 MSRP: ~~7.31~~ (92.7% off)	4
027	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	8
028	5230256	RETAINER	5230256 RETAINER CAVALLOTTO	-	2	Enquire
029	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA IN STOCK	$144.81	2
030	5230257	RETAINER	5230257 RETAINER CAVALLOTTO	-	2	Enquire
031	5229803	SHOCK ABSORBER	5229803 SHOCK ABSORBER AMMORTIZZATORE POSTERIORE (final 2678)	$1,327.34	4
031	5233269	SHOCK ABSORBER	5233269 SHOCK ABSORBER AMMORTIZZATORE POSTERIORE (dalla 12679) (compatibili sulle vetture precedent! solo se abbinati alle molle 005226157 qta 4)	$758.07	4
032	5226157	SPRING	5226157 SPRING MOLLA (dalla 12679 compatibile solo con gli ammortizzatori 005233269)	$380.90 MSRP: ~~398.00~~ (4.3% off)	4
032	5226158	SPRING	5226158 SPRING MOLLA (fino 12678)	$681.14	4
033	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO (sostituisce iI 008201206) IN STOCK	$21.86	8
034	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$587.37	4
035	8101259	SCREW	8101259 SCREW VITE (sostituisce il 008101274)	$15.53	8
036	410512385	RUBBER RING IN STOCK	410512385 RUBBER RING IN STOCK	$53.43	8
