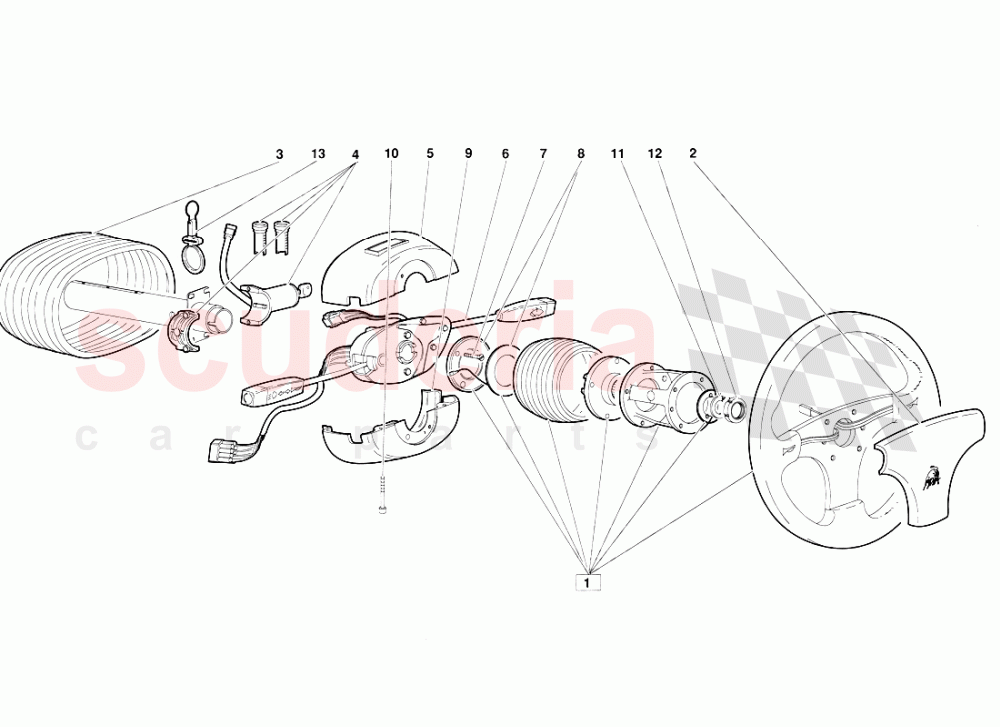

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4332346	STEERING WHEEL	4332346 STEERING WHEEL (Valid for June 1992 version) VOLANTE (da questo complessivo e stato eliminato il coprirazze 004331636 ed aggiunto il contatto strisciante 004330673)	$1,831.05	1
002	4331636	PADDING	4331636 PADDING (Valid for June 1992 version) COPRIRAZZE	$652.83	1
003	9414206	COVERING	9414206 COVERING (Valid for June 1992 version) RIVESTIMENTO PIANTONE	$259.13	1
004	6031202	IGNITION SWITCH IN STOCK	6031202 IGNITION SWITCH (Valid for June 1992 version) KIT COMMUTATORE ACCENSIONE IN STOCK	$442.56	1
005	9414319	UPPER COVER	9414319 UPPER COVER (Valid for June 1992 version) COPERCHIO SUPERIORE	-	1	Enquire
006	4320773	LEVER ASSY	4320773 LEVER ASSY (Valid for June 1992 version) KITLEVE	$1,527.07	1
007	WHT002756	SCREW	WHT002756 SCREW	-	2	Enquire
008	4330673	CONTACT PLATE	4330673 CONTACT PLATE (Valid for June 1992 version) CONTATTO STRISCIANTE	$249.69	1
009	9414320	LOWER COVER	9414320 LOWER COVER (Valid for June 1992 version) COPERCHIO INFERIORE	-	1	Enquire
010	8700442	SCREW	8700442 SCREW (Valid for June 1992 version) VITE	$0.33	2
011	8401417	WASHER	8401417 WASHER (Valid for June 1992 version) RONDELLA	$2.99	1
012	WHT003099	RING NUT	WHT003099 RING NUT (Valid for June 1992 version) GHIERA	$16.60	1
013	9421226	KEY-HOLDER	9421226 KEY-HOLDER (Valid for June 1992 version) PORTACHIAVI	-	1	Enquire
