Lamborghini Diablo (1990-1998) - Front Suspension (Valid for June 1992 Version)

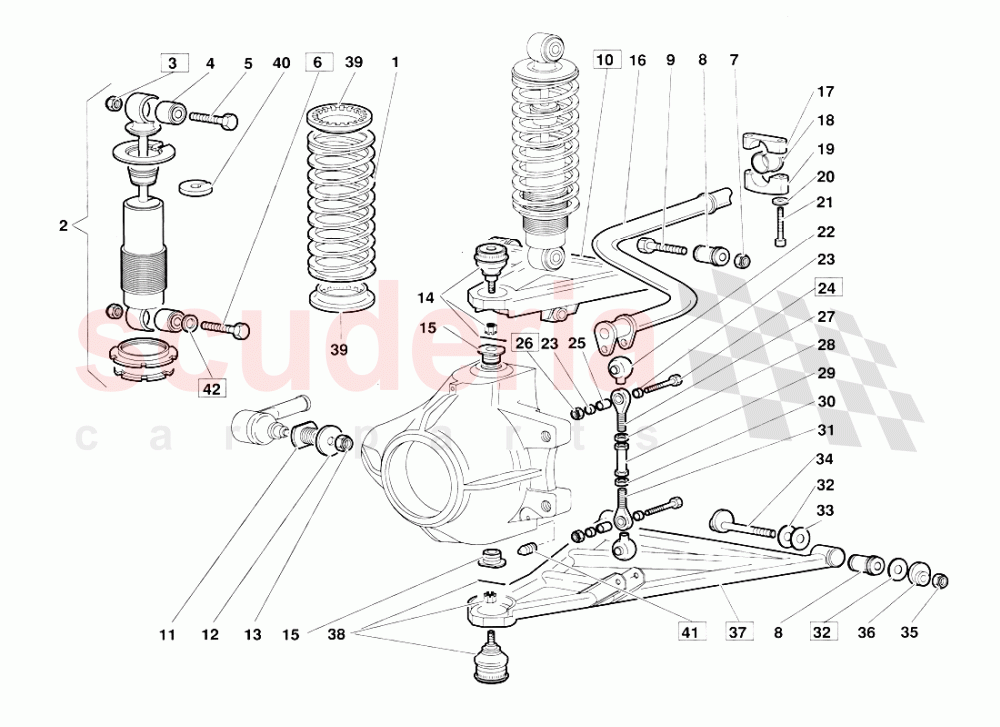

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5126155	SPRING	5126155 SPRING (Valid for June 1992 version) MOLLA AMMORTIZZATORE ANTERIORE	-	2	Enquire
002	5129802	SHOCK ABSORBER	5129802 SHOCK ABSORBER (Valid for June 1992 version) AMMORTIZZATORE ANTERIORE	-	2	Enquire
003	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 (Valid for June 1992 version) DADO (Sostituisce il 008201206)	-	4	Enquire
004	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	-	4	Enquire
005	8101259	SCREW	8101259 SCREW (Valid for June 1992 version) VITE	-	2	Enquire
006	5133229	SCREW	5133229 SCREW (Valid for June 1992 version) VITE (sostotuisce il 0081 01 268)	-	2	Enquire
007	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 (Valid for June 1992 version) DADO	-	4	Enquire
008	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING (Valid for June 1992 version) BOCCOLA ELASTICA	-	8	Enquire
009	8101269	SCREW	8101269 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
010	5129602	ARM	5129602 ARM (Valid for June 1992 version) BRACCIO SUPERIORE DX (fino 12677)	-	1	Enquire
010	5133344	ARM	5133344 ARM (Valid for June 1992 version) BRACCIO SUPERIORE DX (dalla 12678) (Particolare intercambiabile)	-	1	Enquire
010	5129603	ARM	5129603 ARM (Valid for June 1992 version) BRACCIO SUPERIORE SX (fino 12677)	-	1	Enquire
010	5133345	ARM	5133345 ARM (Valid for June 1992 version) BRACCIO SUPERIORE SX (dalla 12678) (Particolare intercambiabile)	-	1	Enquire
011	5129541	BUSHING	5129541 BUSHING (Valid for June 1992 version) BOCCOLA FILETTATA	-	2	Enquire
012	WHT000919	WASHER	WHT000919 WASHER	-	2	Enquire
013	8201003	NUT	8201003 NUT (Valid for June 1992 version) DADO	-	2	Enquire
014	410407365	Coupling	410407365 Coupling (Valid for June 1992 version) TESTA A SNODO	-	2	Enquire
015	410407171C	BUSH	410407171C BUSH (Valid for June 1992 version) BOCCOLA FILETTATA	-	4	Enquire
016	5130255	STABILIZER BAR	5130255 STABILIZER BAR (Valid for June 1992 version) BARRA STABILIZZATRICE	-	1	Enquire
017	5230256	RETAINER	5230256 RETAINER (Valid for June 1992 version) CAVALLOTTO SUPERIORE	-	2	Enquire
018	5238302	BUSHING	5238302 BUSHING (Valid for June 1992 version) BOCCOLA	-	4	Enquire
019	5230257	RETAINER	5230257 RETAINER (Valid for June 1992 version) CAVALLOTTO INFERIORE	-	2	Enquire
020	8410602	WASHER	8410602 WASHER (Valid for June 1992 version) RONDELLA	-	4	Enquire
021	8700609	SCREW	8700609 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
022	5109714	BOOT	5109714 BOOT (Valid for June 1992 version) CAPPUCCIO	-	4	Enquire
023	5227297	BUSHING	5227297 BUSHING (Valid for June 1992 version) BOCCOLA	-	8	Enquire
024	8100810	SCREW	8100810 SCREW (Valid for June 1992 version) VITE (dalla 12609 sostituisce 008100807)	-	4	Enquire
025	5227298	BUSHING	5227298 BUSHING (Valid for June 1992 version) BOCCOLA	-	4	Enquire
026	N0111849	NUT	N0111849 NUT (Valid for June 1992 version) DADO (dalla 12609 sostituisce 008200809)	-	4	Enquire
027	417801931A	BALL JOINT	417801931A BALL JOINT (Valid for June 1992 version) GIUNTO SFERICO	-	2	Enquire
028	8201014	NUT	8201014 NUT (Valid for June 1992 version) DADO	-	2	Enquire
029	5209770	TIE ROD	5209770 TIE ROD (Valid for June 1992 version) TIRANTE	-	2	Enquire
030	8201016	NUT	8201016 NUT (Valid for June 1992 version) DADO	-	2	Enquire
031	5227295	BALL JOINT	5227295 BALL JOINT (Valid for June 1992 version) GIUNTO SFERICO	-	2	Enquire
032	410407295D	WASHER	410407295D WASHER (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 3 MM	-	1	Enquire
032	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2,5 MM	-	1	Enquire
032	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1 MM	-	1	Enquire
032	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 2 MM	-	1	Enquire
032	5133488	SHIM	5133488 SHIM (Valid for June 1992 version) SPESSORE Dl REGISTRO SP = 1,5 MM	-	1	Enquire
034	410407127A	BOLT	410407127A BOLT (Valid for June 1992 version) PERNO CON ECCENTRICO	-	4	Enquire
035	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 (Valid for June 1992 version) DADO	-	8	Enquire
036	410407127A	BOLT	410407127A BOLT (Valid for June 1992 version) ECCENTRICO	-	4	Enquire
037	5133038	ARM	5133038 ARM (Valid for June 1992 version) BRACCIO INFERIORE DX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati)	-	1	Enquire
037	5127023	ARM	5127023 ARM (Valid for June 1992 version) BRACCIO INFERIORE DX (fino 12745)	-	1	Enquire
037	5127024	ARM	5127024 ARM (Valid for June 1992 version) BRACCIO INFERIORE SX (fino 12745)	-	1	Enquire
037	5133039	ARM	5133039 ARM (Valid for June 1992 version) BRACCIO INFERIORE SX (dalla 12746) (Particolare intercambiabile se sostituito su entrambi i lati)	-	4	Enquire
038	410407361B	COUPLING	410407361B COUPLING (Valid for June 1992 version) TESTA A SNODO	-	2	Enquire
039	410512385	RUBBER RING	410512385 RUBBER RING	-	4	Enquire
040	5131484	SPACER	5131484 SPACER (Valid for June 1992 version) DISTANZIALE	-	2	Enquire
041	8700606	SCREW	8700606 SCREW (Valid for June 1992 version) GRAND (dalla 12678)	-	4	Enquire
042	8401234	WASHER	8401234 WASHER (Valid for June 1992 version) RONDELLA	-	6	Enquire
